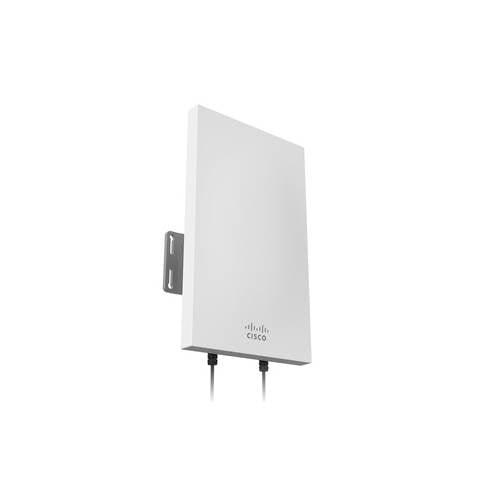

Cisco Meraki 2.4GHz Sector Antenna

**PLEASE NOTE ALL CISCO MERAKI HARDWARE PURCHASES MUST BE MADE IN CONJUNCTION WITH A LICENSE PURCHASE OR A LICENSE MUST BE PROVIDED TO CUSTOMER SERVICE**

The Cisco Meraki MA-ANT-23 sector antenna is an 11 dBi, MIMO, 2.4 GHz antenna ideal for providing client coverage over focused areas. It is designed for use with Meraki APs that have N-type connectors.

FEATURES:

Extended Range
The directional antennas focus wireless signals in a particular direction by creating a co-polarization pattern. Typically, you’ll be able to extend the reach of a radio by up to 2.5x in a particular direction.

Easy to Mount
The antenna comes with everything you need for a pole or wall mount, and is suitable for indoor or outdoor use. 2 cables with N-Type connectors are integrated with the antenna.

Improved Connectivity
Cisco Meraki’s antenna accessories improve the reach and connectivity of a Cisco Meraki network by focusing and increasing signal strengths between MR66s, MR72s, and MR84s.

SPECIFICATIONS:

Electrical

• Antenna type: panel
• Frequency range: 2.400 – 2.500 GHz
• Gain: 11 dBi
• Polarization: linear, vertical / horizontal
• Half power bandwidth / horizontal: 70

Physical & Environmental

• Dimensions: 9.2" x 5.5" x 1.6" (233 mm x 140 mm x 40 mm)
• Weight: 1.2 lbs (525 g)
• Material: UV resistant plastic
• Temperature: -40 F to 158 F (-40 C to 70 C)
• Connector: 2 x N-type

Mounting

• Mounting hardware included
• Mounts to walls or poles

Cables

• Cables with two N-type connectors included

Regulatory

• Certified for use with the MR66 and MR72

Warranty

• 1 Year hardware warranty included

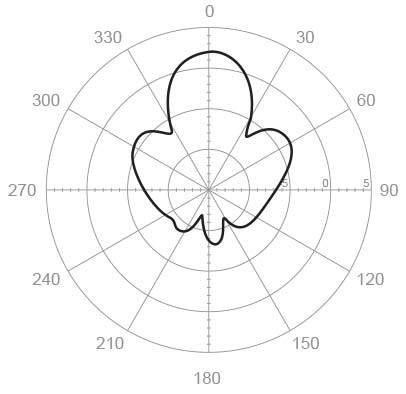

Vertical Port

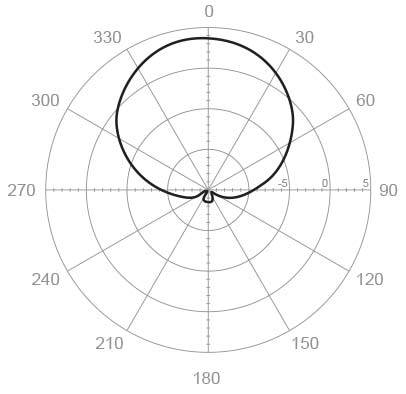

Horizontal Port
