Chord Electronics Hugo 2 Portable DAC/Headphone Amplifier - Black

HUGO 2 Transportable DAC/Headphone Amplifier

Hugo 2 is a powerful DAC and headphone amp that builds on the ground-breaking original. Designed for both home and mobile use, Hugo 2 transforms headphones and audio systems’ sound quality with its cutting-edge proprietary DAC technology.

Hugo 2 can be used both at home and on-the-go, either with headphones or within a conventional audio system. Its line-level output and full-function remote control adds real flexibility in full-size and desktop systems.

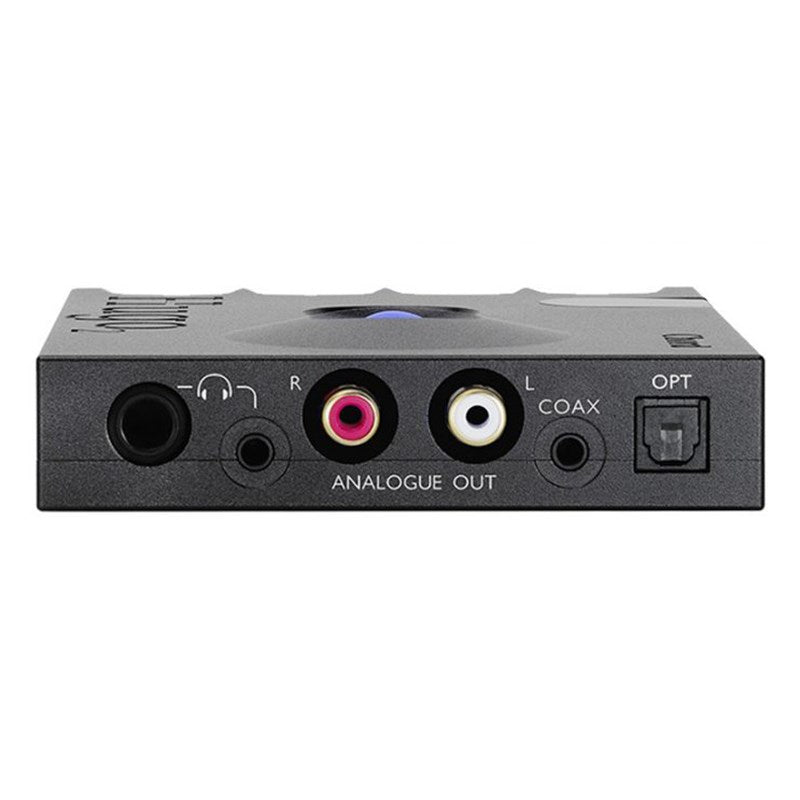

The device offers four digital inputs (optical, coaxial and HD USB) plus extended-range Bluetooth, with high-resolution file playback up to 768kHz and up to DSD512 (Octa DSD), via its HD USB input. Analogue outputs include 2x RCA, plus 3.5mm and 6.35mm headphone outputs.

A four-function switch filter offers a useful degree of user-selectable frequency-shaping, bringing warm and soft or transparent and incisive presentations, giving additional flexibility and user control. For headphone-listening, Hugo 2 retains the popular digital crossfeed function of the original and offers three operation modes. The system duplicates the effect of listening to speakers and is based on advanced binaural audio research.

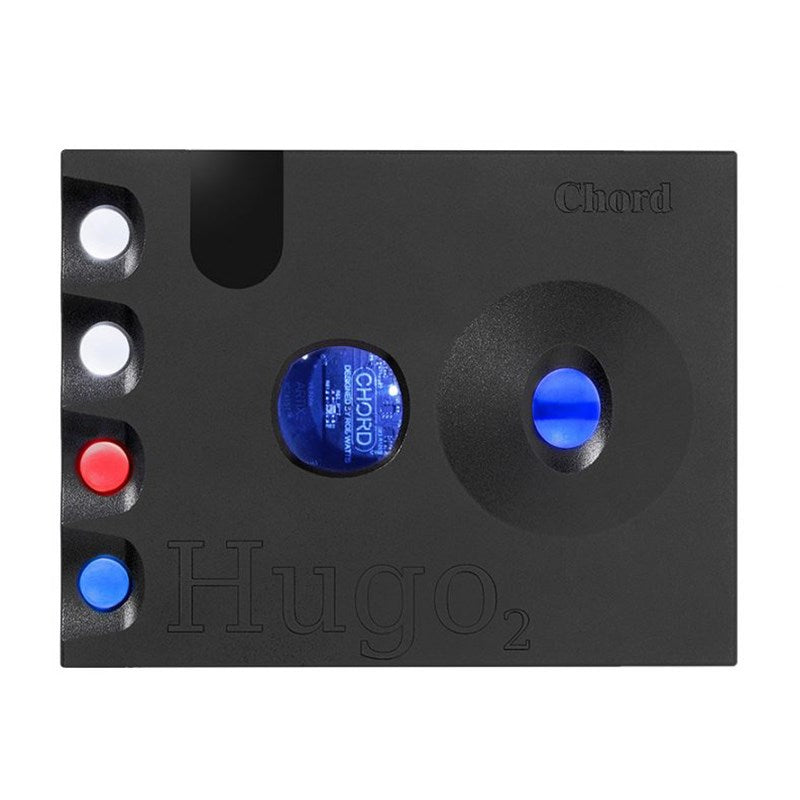

Hugo 2 features four spherical control buttons, which illuminate with colour-coding information and control power, input, filtering, plus the unit’s crossfeed functions.

Battery playing time is around seven hours and two modes of automatic charging are included using the dedicated Micro USB charging port; an indicator shows charging and battery-charge status.

Features

Materials: Clamshell precision machined aluminium casing with polycarbonate buttons, acrylic signal window, and glass viewing portal. Available in a choice of two colours – natural silver, and satin black
Battery: 2x Rechargeable custom Enix Energies 3.7v 9.6Wh Li-ion (lithium-ion (2600mAh) batteries*
Tap length filter: 49,152 – 10 element Pulse Array design
Play time: 8 hrs (Avg.time)
Charging: Nominal six (6) hours via Micro USB at 1.8amps (fast charge) – Nominal eight (8) hours at 1amp (slow charge)
Connectivity (input): Micro USB (White): 44.1kHz to 768kHz – 16bit to 32bit
Coax via 3.5mm jack (Red): 44.1kHz to 384kHz – 16bit to 32bit
Coax via (same) 3.5mm jack (Dual data mode: Yellow): 44.1kHz to 768kHz – 16bit to 32bit
Optical (Green): 44.1kHz to 96kHz – 16bit to 24bit
Connectivity (input wireless): Bluetooth (APTX ®) (Blue): 44.1kHz to 48kHz – 16bit
Connectivity (output): 1x ¼” jack headphone output
1x 3.5mm jack headphone output
1x stereo (L & R) RCA output
PCM support: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 717.6kHz, and 768kHz. 16 – 32bit
DSD support: Native playback supported. DSD64 (Single) to DSD512 (Octa-DSD)
Volume control: Digital, activated in 1dB increments. Last known state saved upon shutdown, with exception of line-level mode
Line-level mode: Activated via dual press of middle ‘Source’ and ‘Crossfeed’ buttons. Line level = 3v via all outputs. Reset by power cycle
Power saving mode: Auto-shutdown after ten minutes of input inactivity
Driver support: Driverless with Mac OS X and Linux, driver required for Windows OS

User Configurable Options:

Filters (Digital):

Incisive neutral (Ultimate reference) (White)
Incisive neutral HF roll-off (High Frequency roll off) (Green)
Warm (‘Smooth’) (Orange)
Warmer HF roll-off (High Frequency roll off) (Red)

Crossfeed (Digital IIR):

Off – No Crossfeed
Level 1 – Light
Level 2 – Medium
Level 3 – Heavy

Control options:

Manual
Remote control (included)
