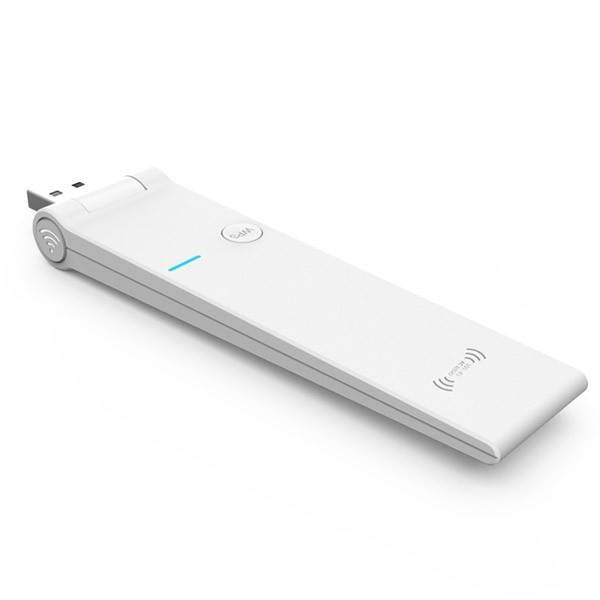

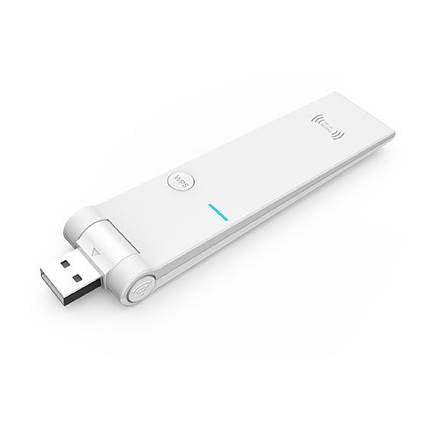

Winstars WN688U3 AC1300M Dual-Band Wi-Fi USB 3.0 Adapter

Features

• 1300 (867+400)Mbps wireless speed
• Support 2.4GHz & 5GHz WLAN networks
• Dual Band connections for lag-free HD video streaming and gaming
• SuperSpeed USB 3.0 port, backward compatible to USB 2.0
• Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
• 20MHz & 40MHz & 80MHz bandwidth transmission
• OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAMmodulation
• Supports Windows XP / Vista / 7 / 8 / 8.1/10, MAC

Specification

• Hardware
  • Ports: USB 3.0
  • Button: WPS
  • LED: 1 X Link/ Active
  • Chipset:RTL8812AU
  • Flash: N/A
  • SDRAM: N/A
  • Power Supply: USB 5V
  • Power Plug: N/A
  • Power Consumption:/
  • Rated Voltage/ requency /current:DC 5V about 500mA
• Wireless
  • Standard:IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
  • Modulation:
    • 11ac\n: 16QAM, 64QAM 128QAM 256QAM with OFDM
    • 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
    • 11b: DQPSK, DBPSK, DSSS, CCK
  • Speed:
    • 802.11ac: up to 867Mbps
    • 802.11n: up to 400Mbps
    • 802.11a: up to 54Mbps
    • 802.11g: 54 M
    • 802.11b: 11 M
  • Frequency band:5GHz and 2.4GHz
  • Power:
    • 802.11b: 22dBm ± 2 dBm 802.11g: 16dBm ± 2 dBm
    • 802.11n: 15dBm ± 2 dBm 802.11ac: 14dBm ± 2 dBm
  • Distance:Outdoors 300m, Indoor 100m(According to the actual environment change)
  • Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC, WDS
• Environmental
  • Operating Temperature:0ºC~40ºC
  • Storage Temperature:-10~70?
  • Relative Humidity(Operational): 10%~90%,noncondensing
  • Relative Humidity(Storage):10%~90%,noncondensing
• Software
  • Standard Version
    • RFC768 User Datagram Protocol(UDP)
    • RFC791 Internet Protocol(IP)
    • RFC792 Internet Control Message Protocol
    • RFC793 Transmission Control Protocol(TCP)
    • bandwidth:20MHz?40MHz?80MHz
    • Wireless Mode:11ac only, 11n only, 11g only?11b only(option)
    • System Windows XP / Vista / 7 / 8 / 8.1/10, MAC

Product weight and dimensions

• Item Weight: 0.25 KG
• Product Dimensions: 98mm L x 28mm W x 10mm (L x W x H)
