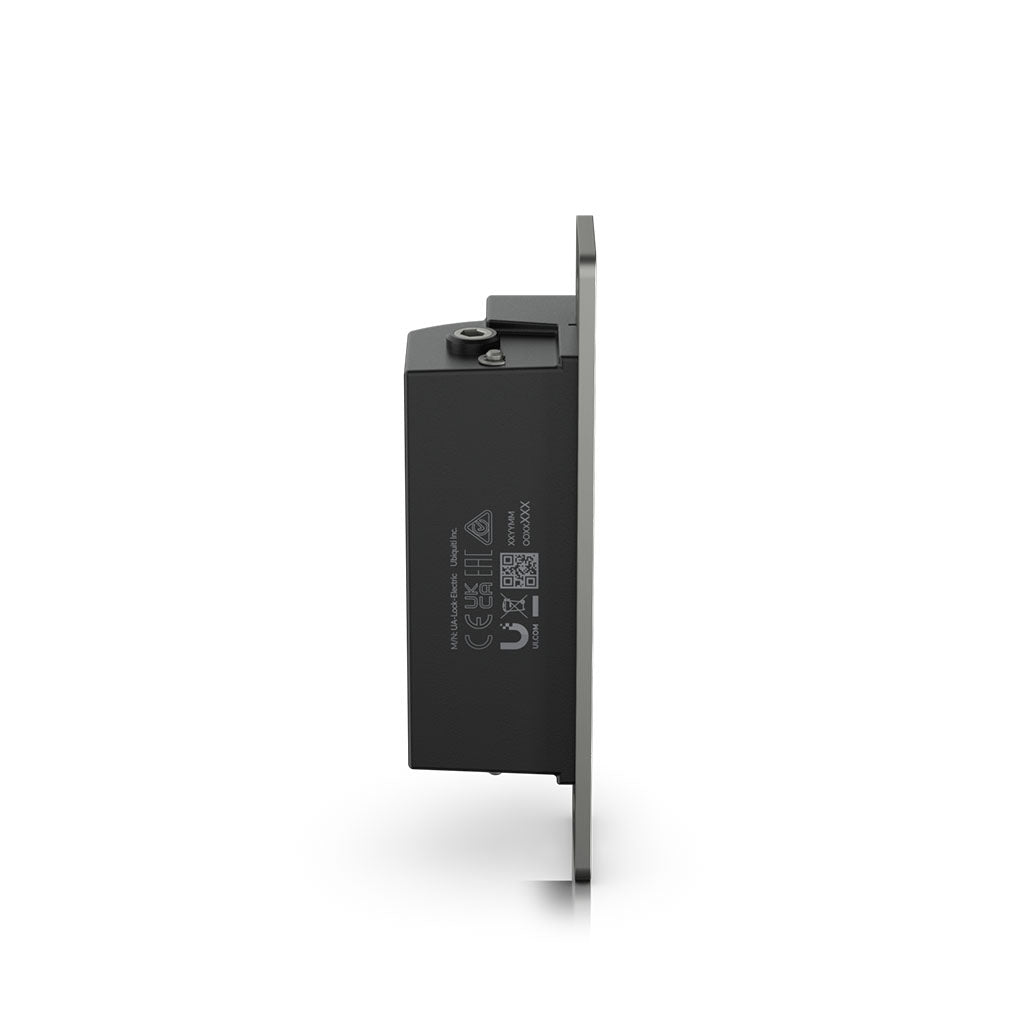

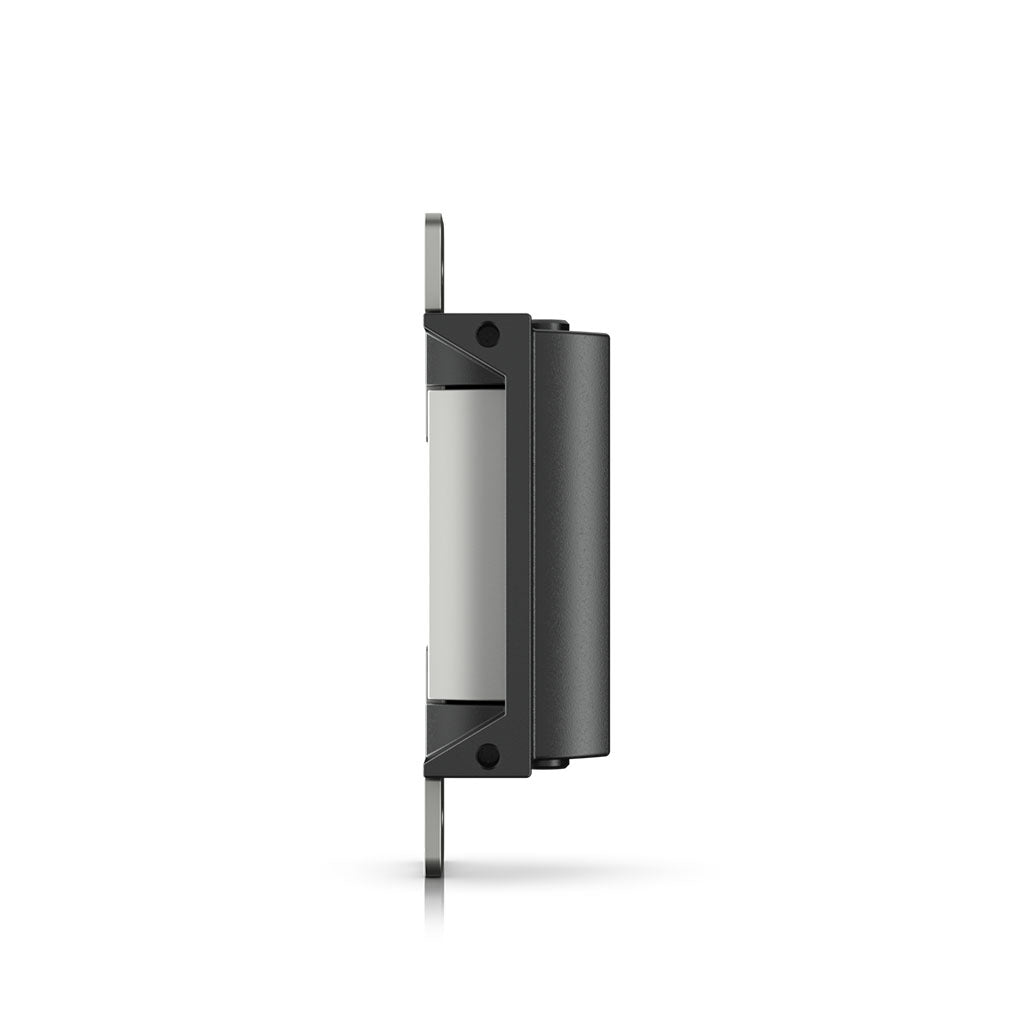

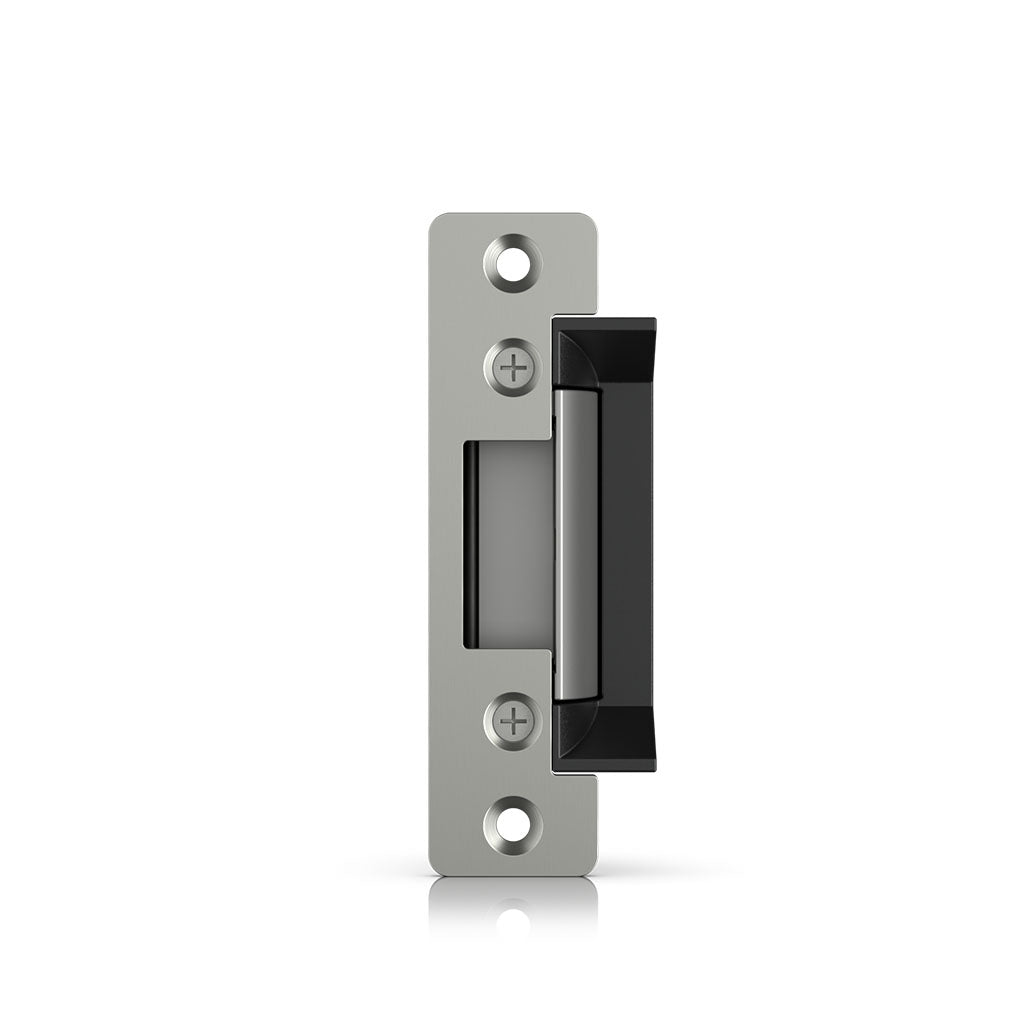

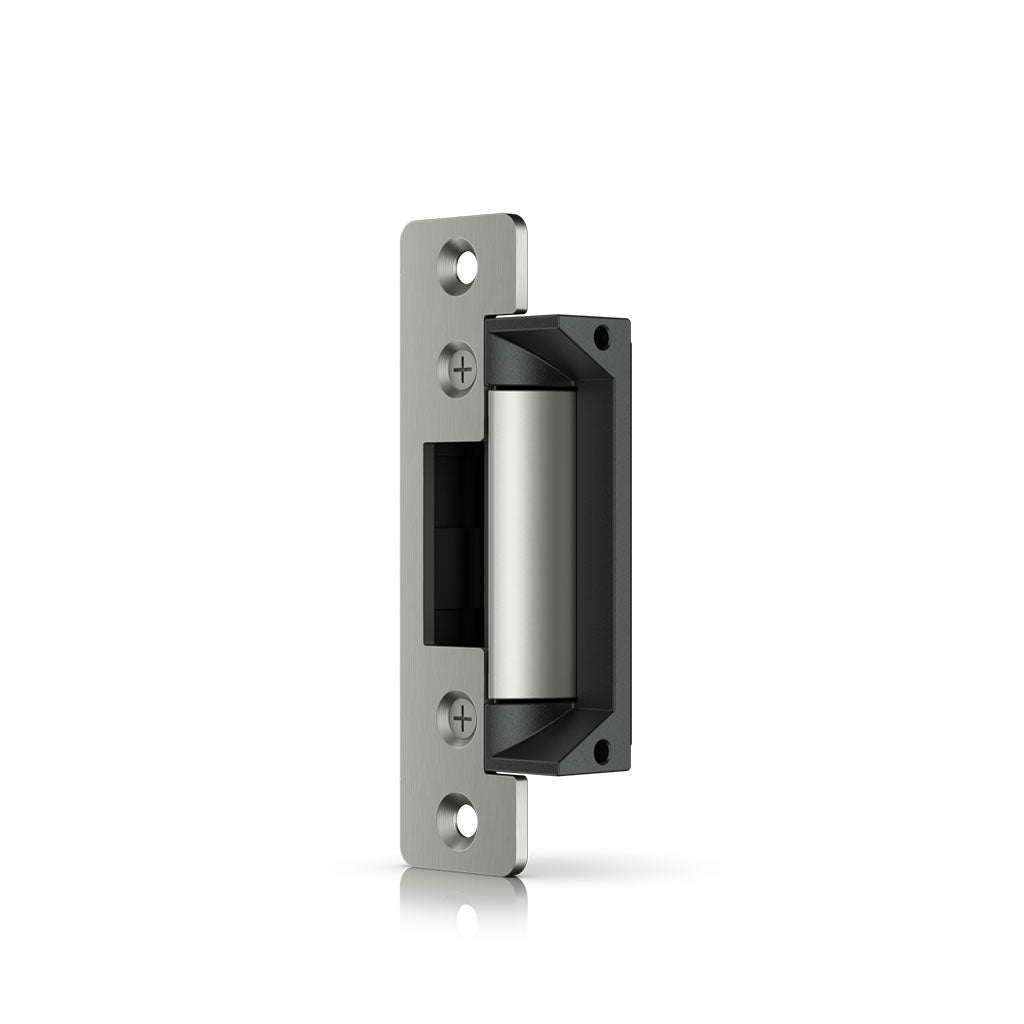

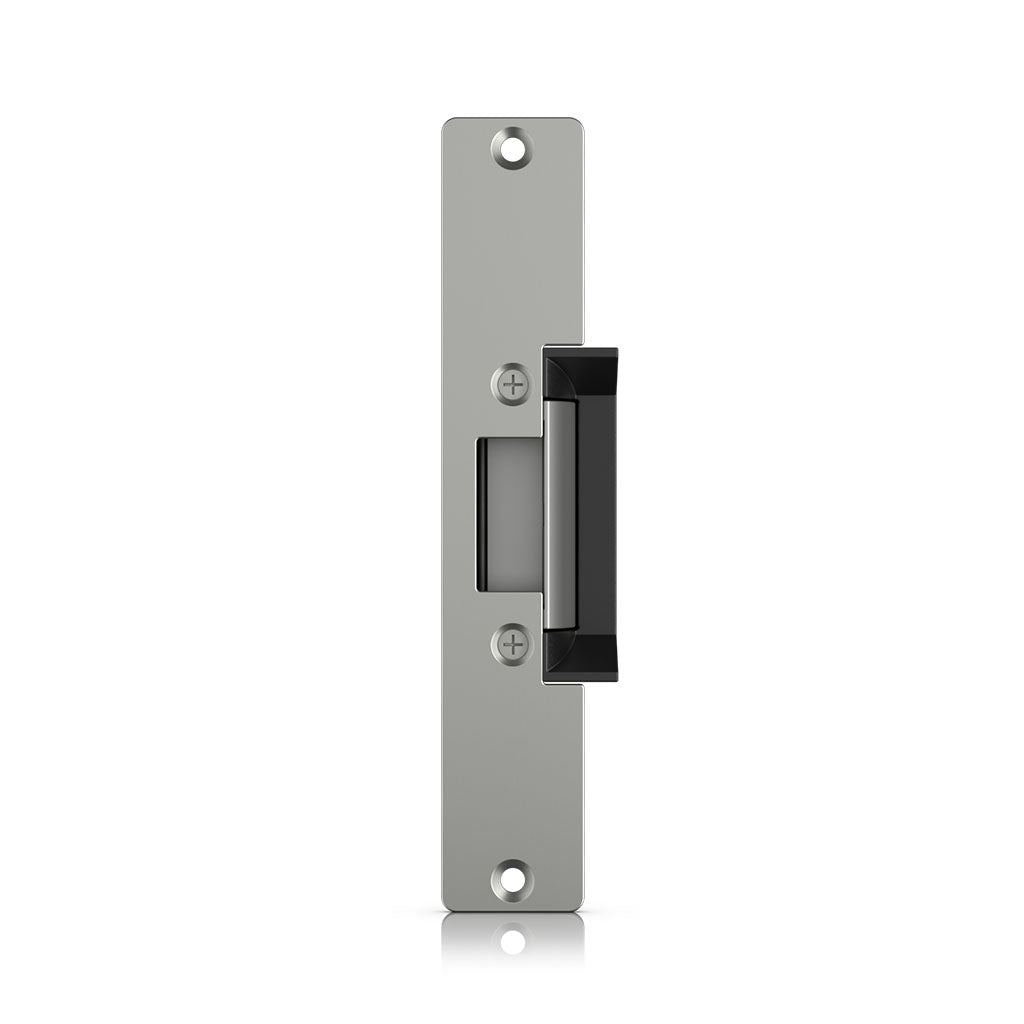

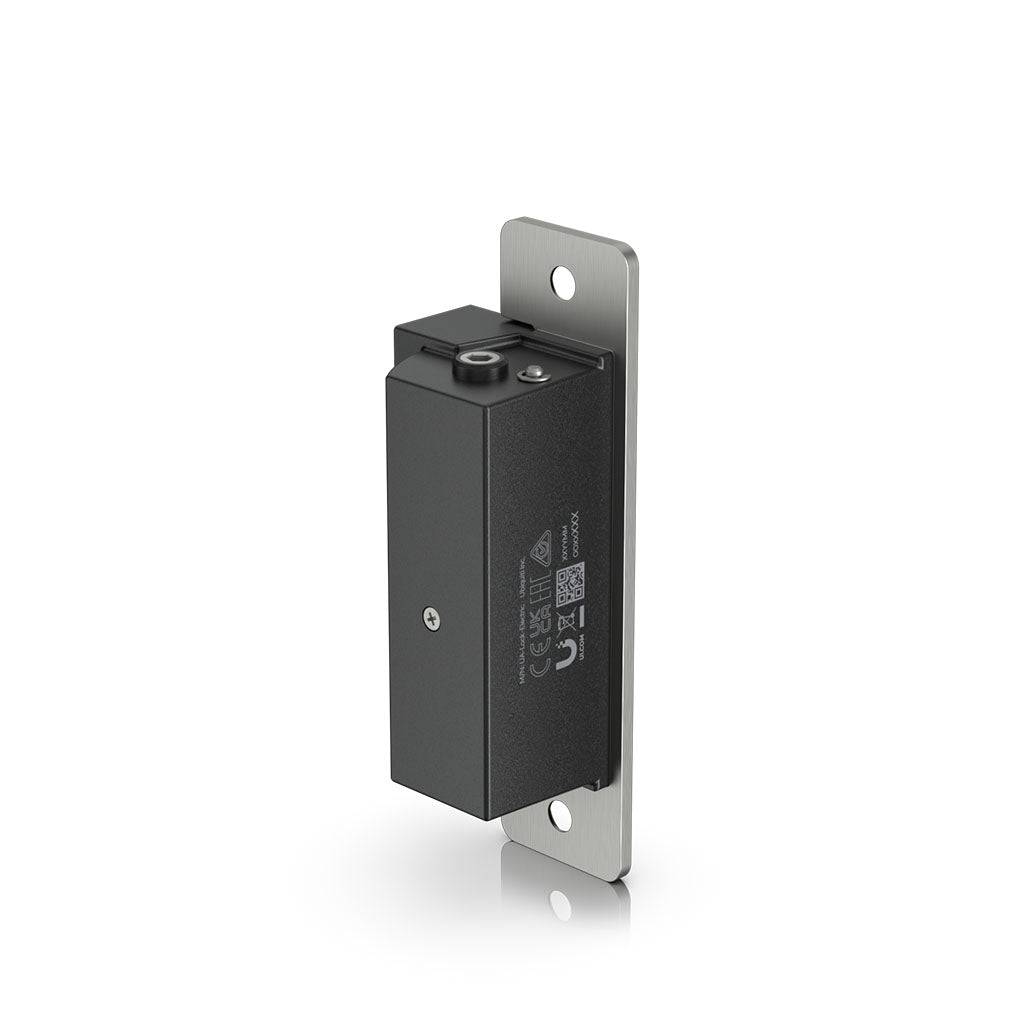

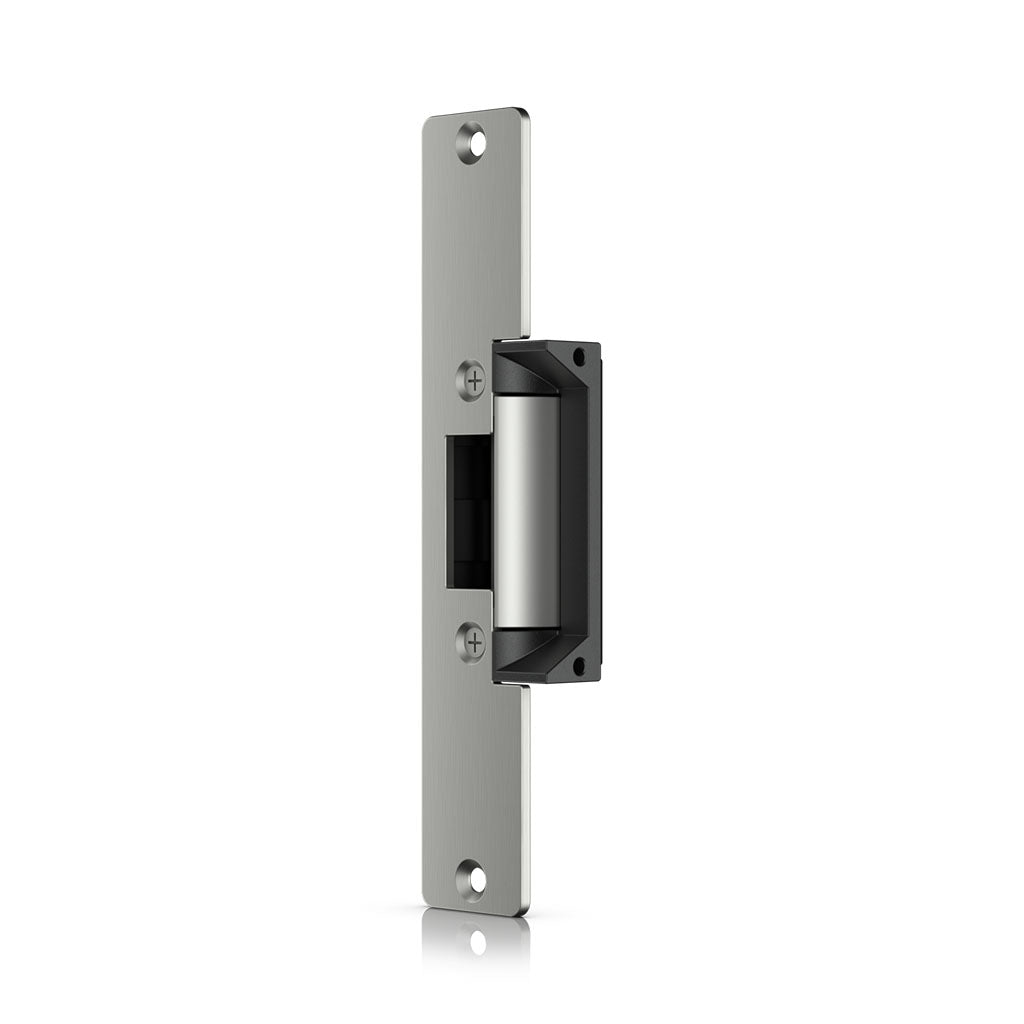

Ubiquiti UniFi Electric Lock
Description
• Ubiquiti UniFi Electric Lock Material: Zinc Alloy, Stainless Steel
• Suitability: Wooden, Steel, Aluminum doors
• Wiring connection: Connect the two screw terminal separately to powered lock relay on, UA-Hub: NO, COM
• Voltage: 12V DC
• UA-Lock-Electric
• Suitability: Wooden, Steel, Aluminum doors
• Wiring connection: Connect the two screw terminal separately to powered lock relay on, UA-Hub: NO, COM
• Voltage: 12V DC
• UA-Lock-Electric
$141.00
Sale price
$141.00
In stock at Mwave
Dispatch or pick up within 24 hours
BANK TRANSFER (EFT)
$141.00
Sale price
$141.00
In stock at Mwave
Dispatch or pick up within 24 hours
Accepted payment methods
Description
• Ubiquiti UniFi Electric Lock Material: Zinc Alloy, Stainless Steel
• Suitability: Wooden, Steel, Aluminum doors
• Wiring connection: Connect the two screw terminal separately to powered lock relay on, UA-Hub: NO, COM
• Voltage: 12V DC
• UA-Lock-Electric
View Full Details
• Suitability: Wooden, Steel, Aluminum doors
• Wiring connection: Connect the two screw terminal separately to powered lock relay on, UA-Hub: NO, COM
• Voltage: 12V DC
• UA-Lock-Electric
| Mechanical | |
|---|---|
| Dimensions | Lock body: 80 x 40 x 35 mm (3.2 x 1.6 x 1.4") Short front plate: 124 x 32 x 3 mm (4.9 x 1.3 x 0.1") Long front plate: 202 x 36 x 3 mm (7.9 x 1.4 x 0.1") |
| Weight | Lock body: 185 g (6.5 oz) Short front plate: 50 g (1.8 oz) Long front plate: 130 g (4.6 oz) |
| Enclosure material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Hardware | |
| Voltage | 12V DC |
| Current power | 400mA ±10% |
| Wiring connection | Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM |
| Lock type | Fail secure lock Single door |
| Lock holding force | 1,200 kg (2,645 lb) |
| Suitability | Wooden, steel, aluminum door |
| Screw terminal | + and - |
| Ambient operating temperature | -10 to 45° C (14 to 113° F) |
| Ambient operating humidity | 5 to 90% noncondensing |
| Certifications | FCC, IC, CE |
