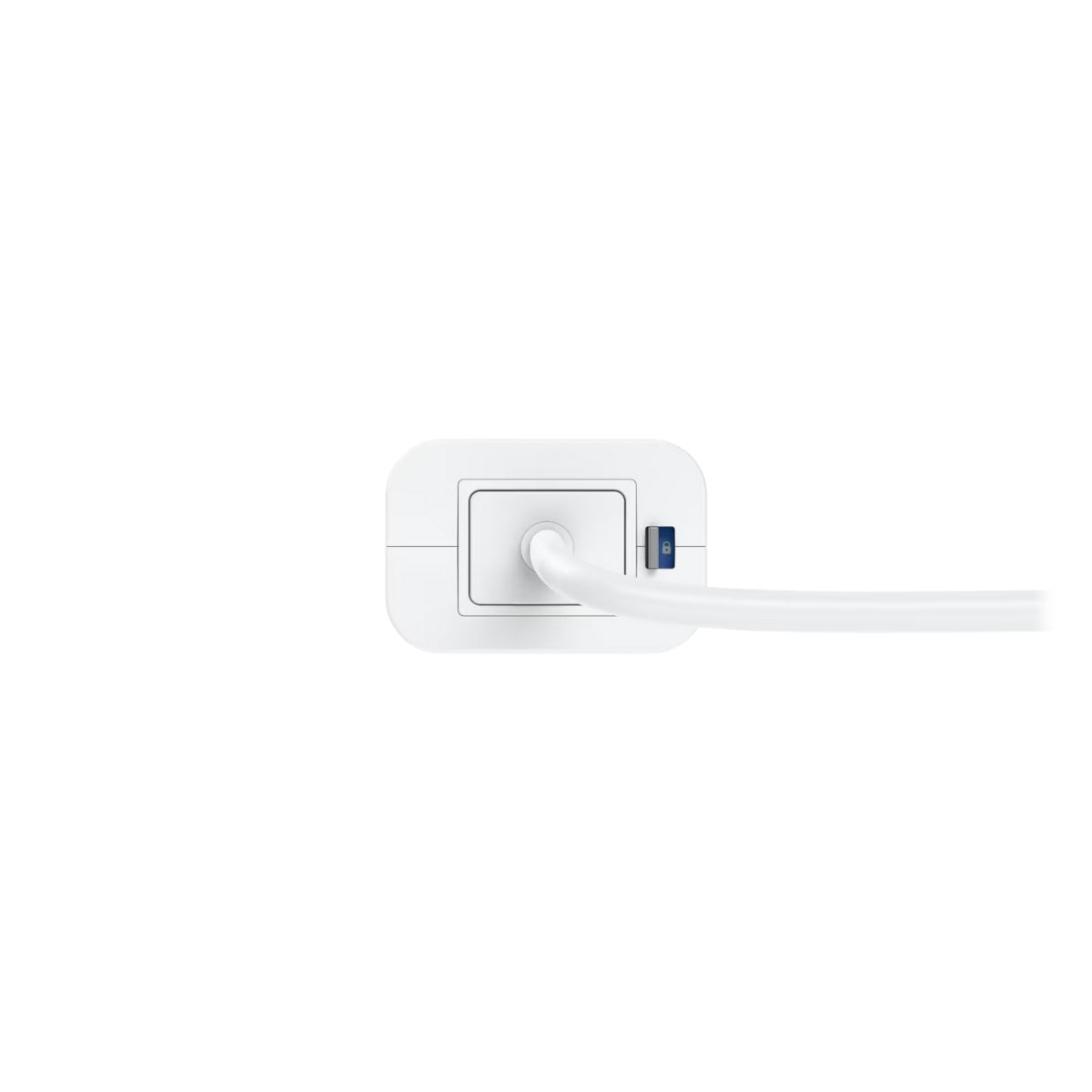

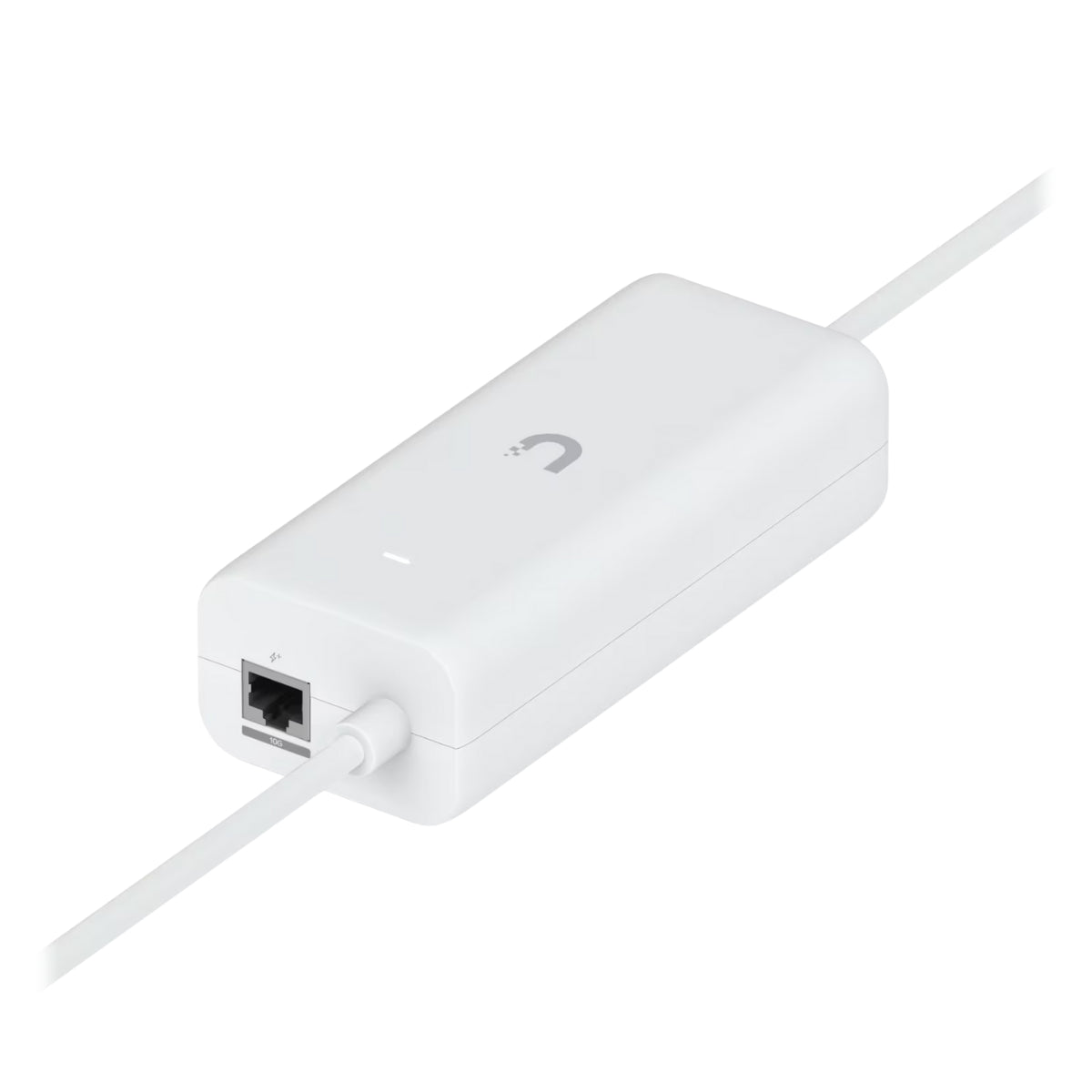

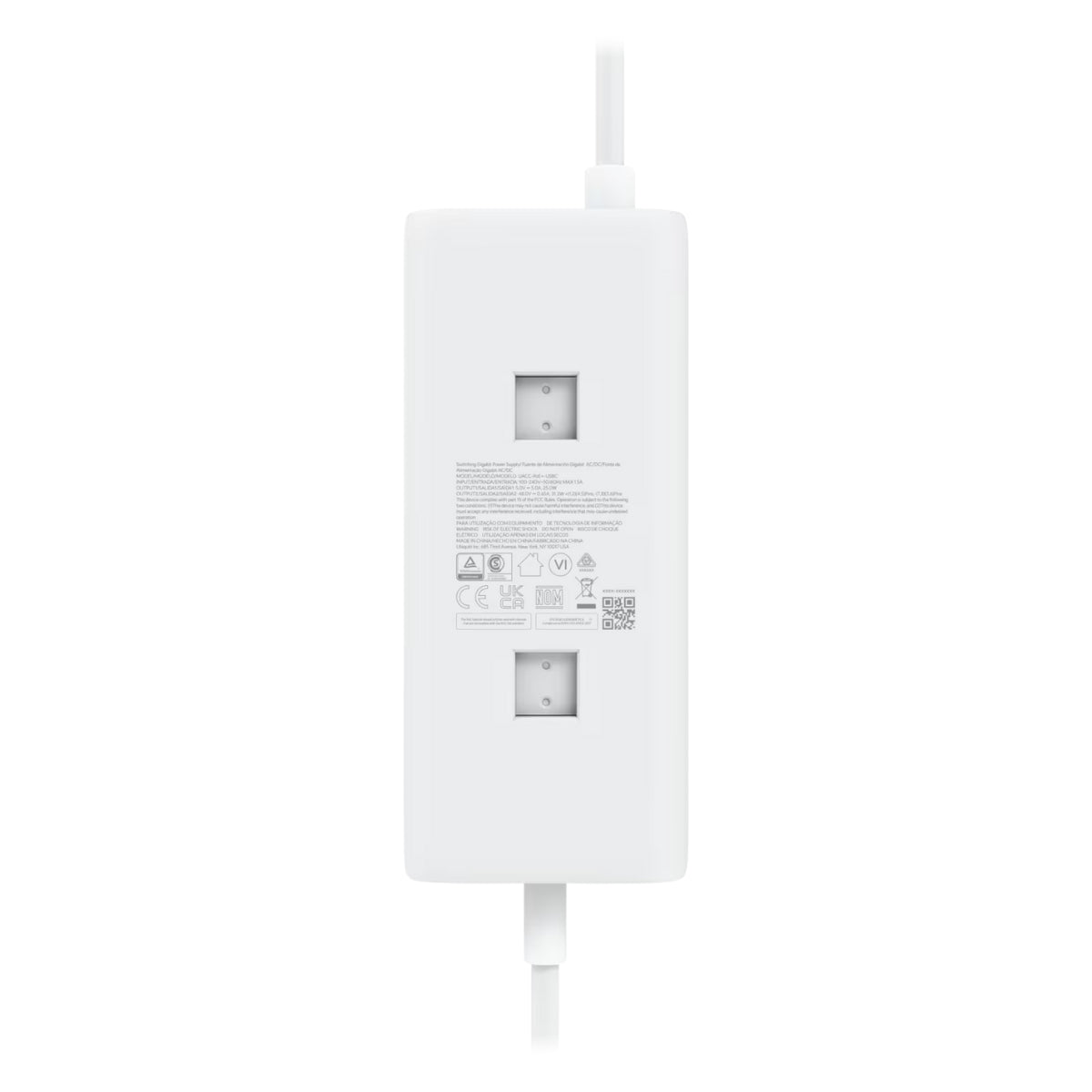

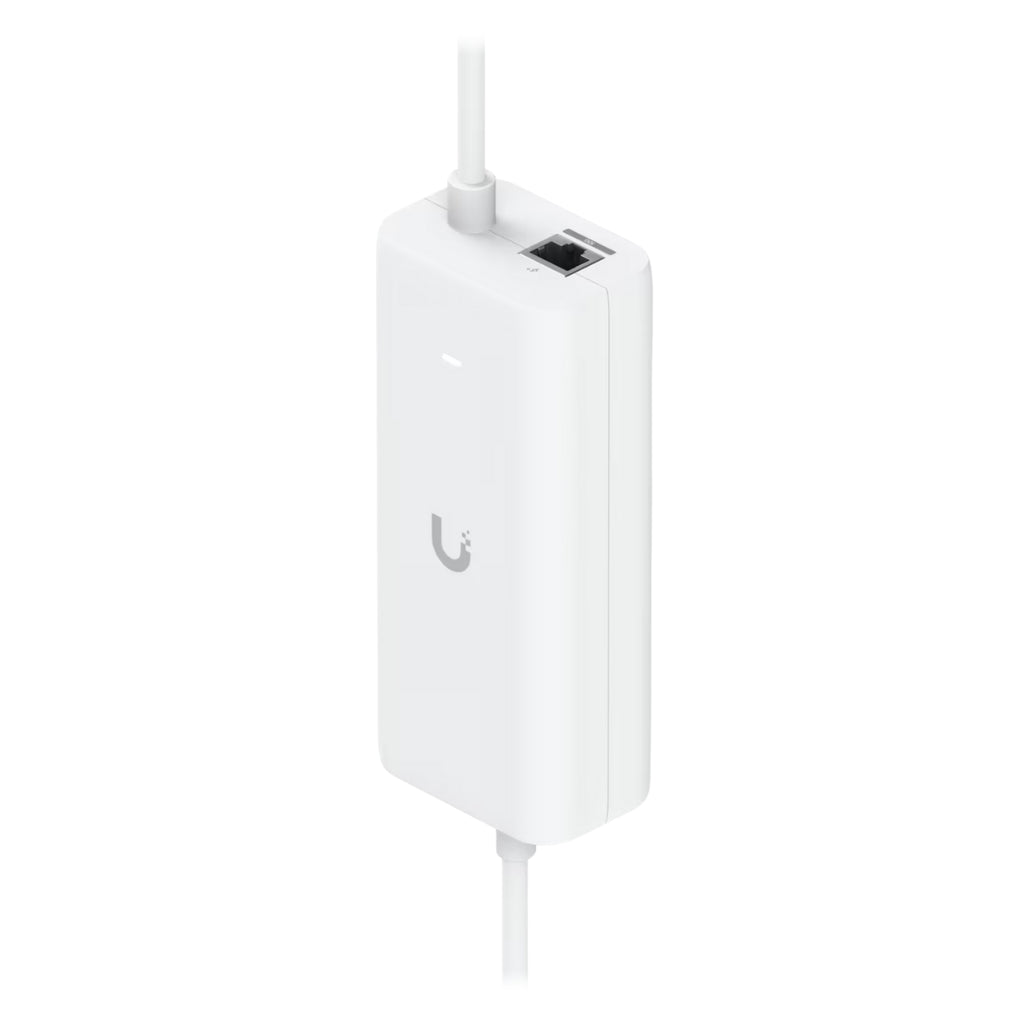

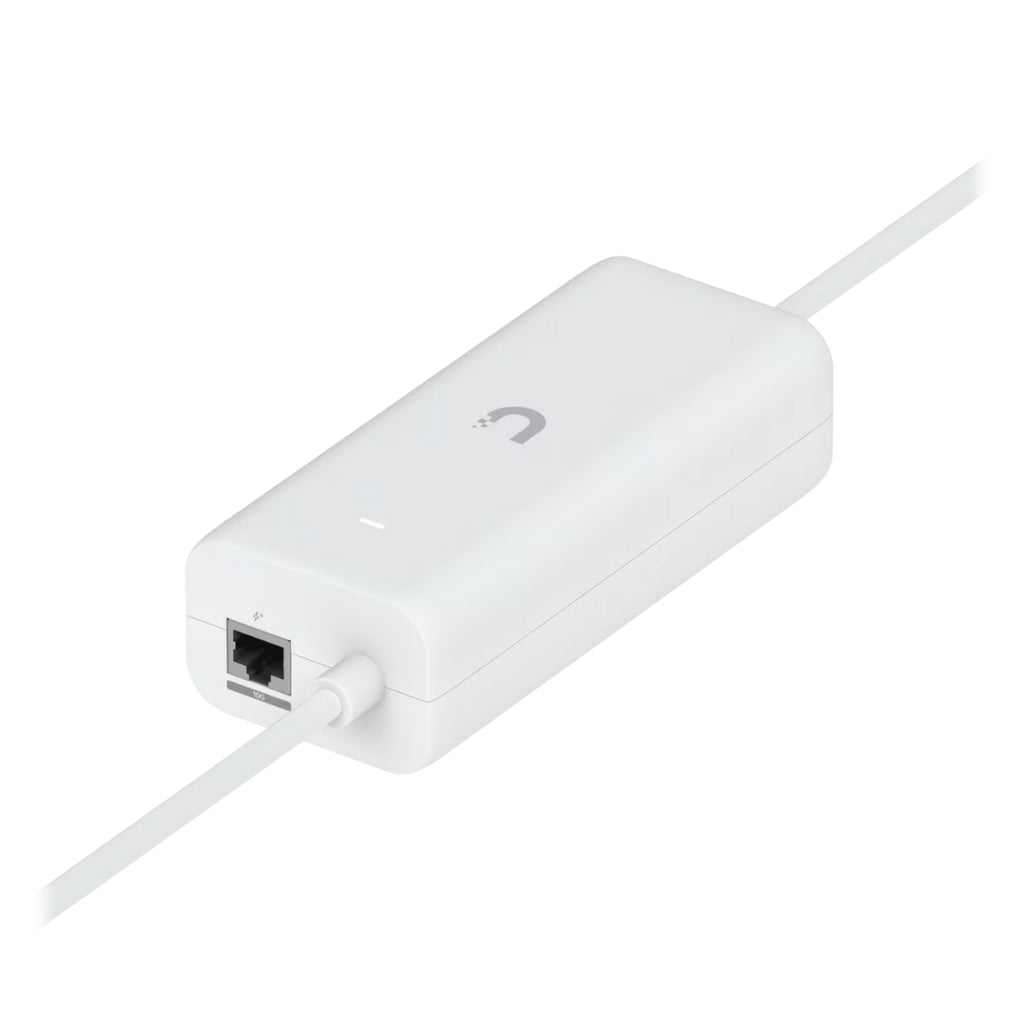

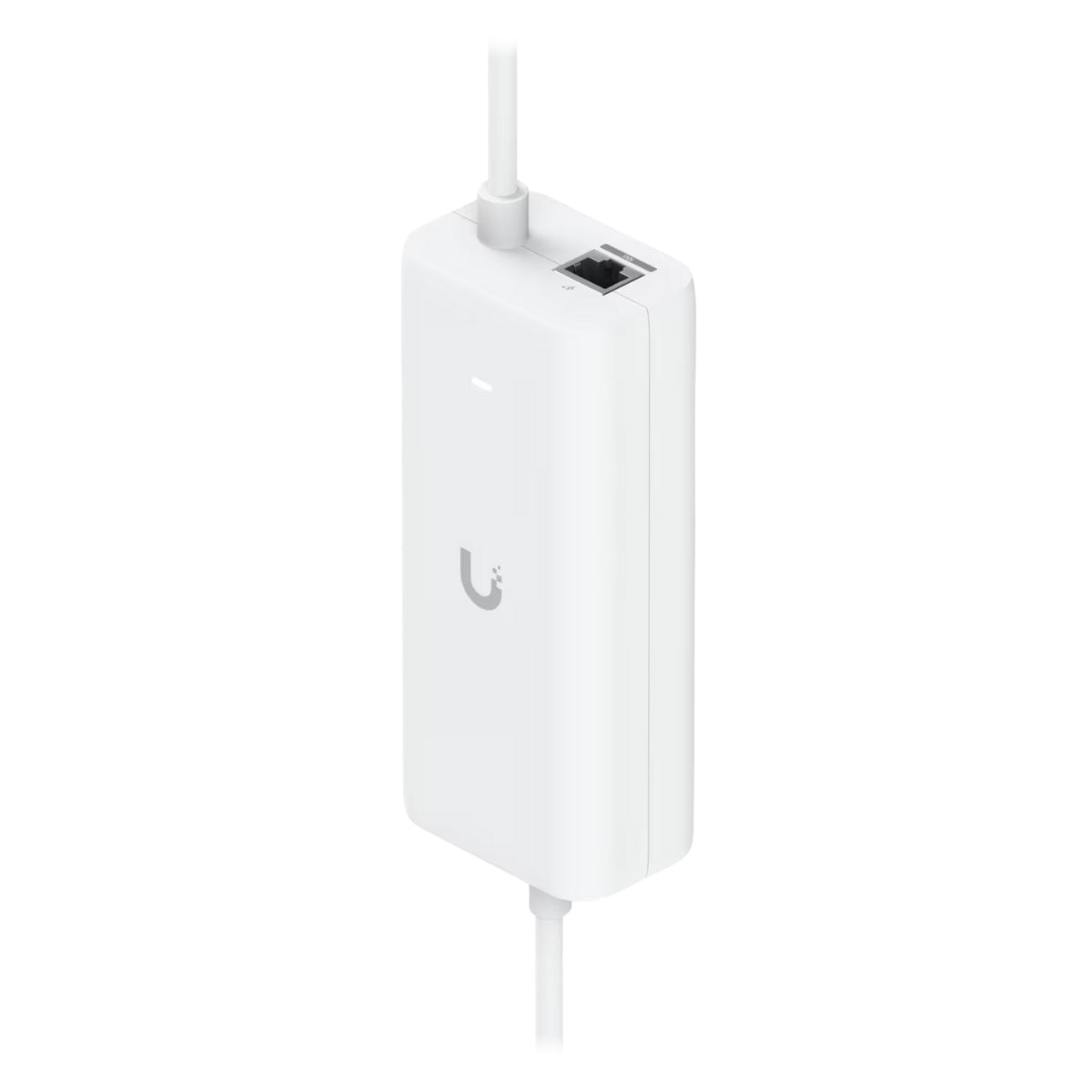

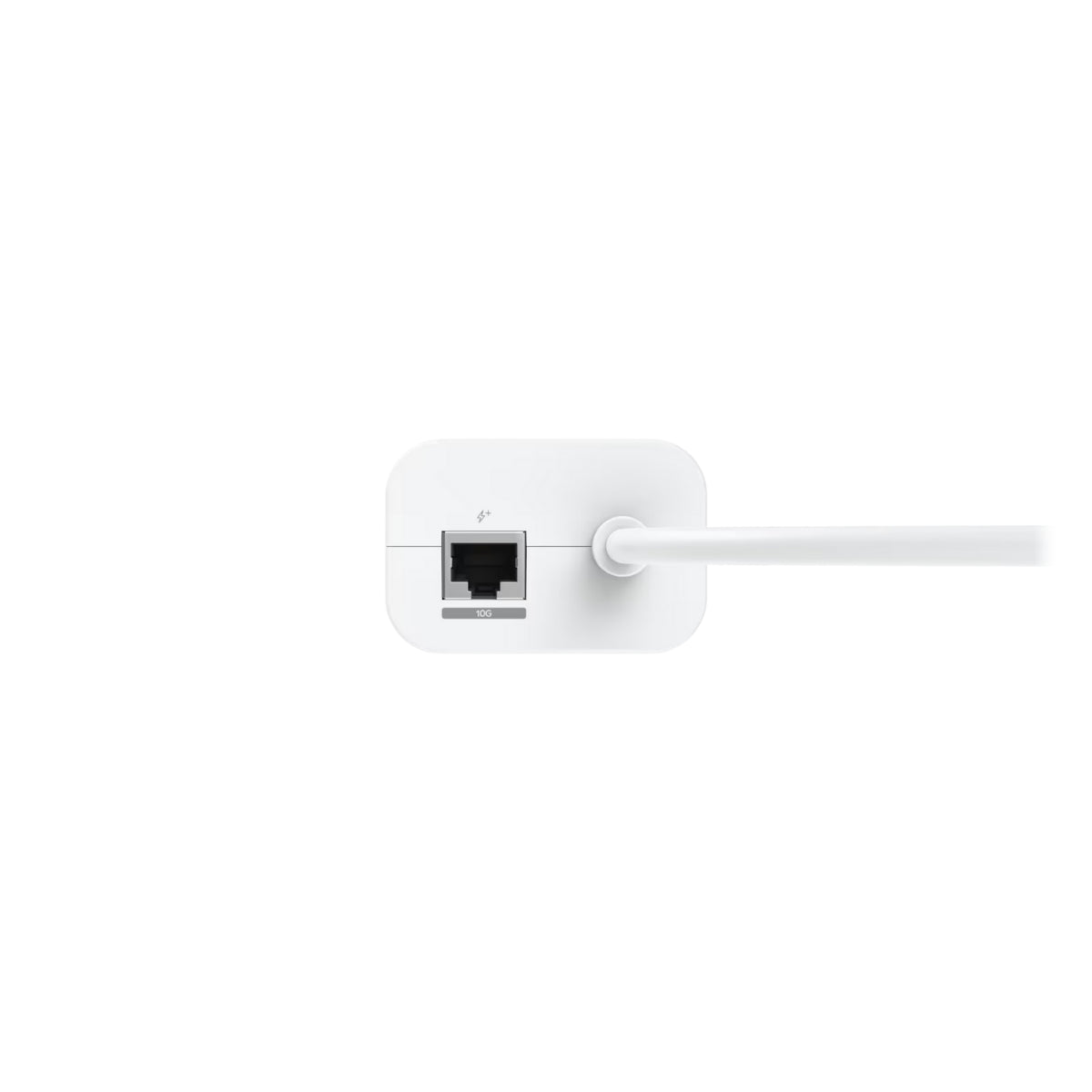

Ubiquiti PoE Integrated AC Adapter
Description
• Ubiquiti PoE Integrated AC Adapter, AC Adapter with Integrated PoE, Enabling UniFi Cloud Gateway Device to Support PoE Output on a Single Port Output Voltage: Type-C: 5V@ 5A, PoE+: 48V@ 0.65A
• Rated Voltage: 100240V AC @ 50/60Hz
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• Data In / PoE: RJ45 shielded socket
• UACC-PoE+-USBC
• Rated Voltage: 100240V AC @ 50/60Hz
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• Data In / PoE: RJ45 shielded socket
• UACC-PoE+-USBC
$84.00
Sale price
$84.00
In stock with supplier
Ships within 8 - 18 days
BANK TRANSFER (EFT)
$84.00
Sale price
$84.00
In stock with supplier
Ships within 8 - 18 days
Accepted payment methods
Description
• Ubiquiti PoE Integrated AC Adapter, AC Adapter with Integrated PoE, Enabling UniFi Cloud Gateway Device to Support PoE Output on a Single Port Output Voltage: Type-C: 5V@ 5A, PoE+: 48V@ 0.65A
• Rated Voltage: 100240V AC @ 50/60Hz
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• Data In / PoE: RJ45 shielded socket
• UACC-PoE+-USBC
View Full Details
• Rated Voltage: 100240V AC @ 50/60Hz
• 4-pair Powering: Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
• Data In / PoE: RJ45 shielded socket
• UACC-PoE+-USBC
Dimensions
46 x 62 x 42 mm (5.7 x 2.4 x 1.7")
Weight
358 g (12.6 oz)
Length
Cable: 150 cm (4.9 ft) total, including 30 cm split Type-C/Ethernet ends Power cord: 180 cm (5.9 ft)
Output Voltage
Type-C: 5V@ 5A PoE+: 48V@ 0.65A
Rated Voltage
100—240V AC @ 50/60Hz
Gigabit LAN Port
?
4-pair Powering
Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-)
Clamping Protection
11V data, 60V power
Data In / PoE
RJ45 shielded socket
Input Current
1.5A max.
Inrush Current
120A
Efficiency
82%
Switching Frequency
65 kHz
Output Ripple
1% max.
Line Regulation
≤ 5%
Load Regulation
≤ 5%
Max. Surge Discharge
1500A (8/20 μs) power
Peak Pulse Current
36A (10/1000 μs) data
Response Time
<1 ns
Shunt Capacitance
<5 pF data
Surge Protection
Difference and common mode
Ambient Storage Temperature
-30 to 70°C (-22 to 158° F)
Ambient Operating Temperature
0 to 40° C (32 to 104° F)
Ambient Operating Humidity
10 to 95% noncondensing
NDAA Compliant
?
Certifications
CE, FCC, IC, UL, UKCA, CCC, KC, RoHS
