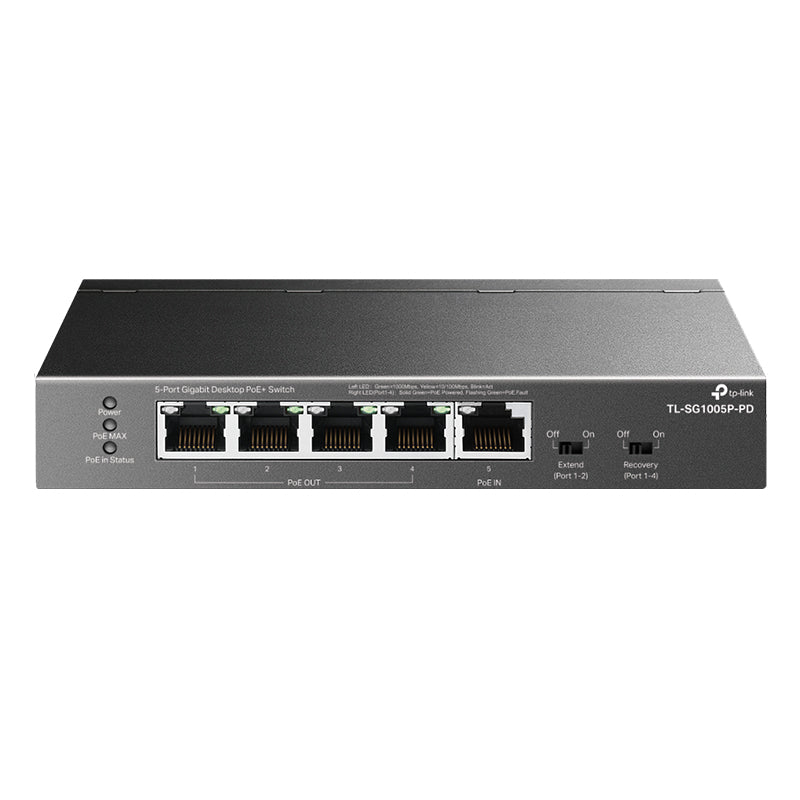

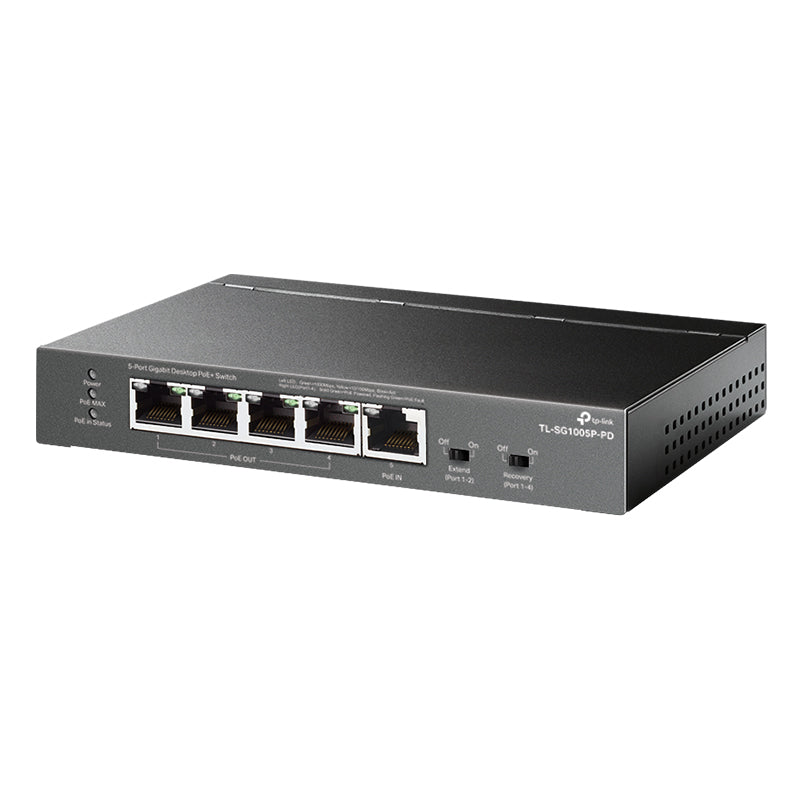

TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch
TP-Link TL-SG1005P-PD 5-Port Gigabit Desktop PoE+ Switch
Description
• 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1p
• Ports: 5x Gigabit RJ45, 1x Gigabit RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4), 4x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at)
• Power Supply: Only Powered by PoE Device
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K
• TL-SG1005P-PD
• Ports: 5x Gigabit RJ45, 1x Gigabit RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4), 4x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at)
• Power Supply: Only Powered by PoE Device
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K
• TL-SG1005P-PD
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$59.00
Sale price
$59.00
In stock with supplier
Ships within 8 - 18 days
BANK TRANSFER (EFT)
$59.00
Sale price
$59.00
In stock with supplier
Ships within 8 - 18 days
Accepted payment methods
Description
• 5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out Standards: IEEE 802.3i, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.3x, 802.1p
• Ports: 5x Gigabit RJ45, 1x Gigabit RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4), 4x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at)
• Power Supply: Only Powered by PoE Device
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K
• TL-SG1005P-PD
View Full Details
• Ports: 5x Gigabit RJ45, 1x Gigabit RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4), 4x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at)
• Power Supply: Only Powered by PoE Device
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• MAC Address Table: 2K
• TL-SG1005P-PD
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
Additional Features:
Silent Operation: Industry-leading fanless design ensures quiet operation, ideal for any home or business.
Plug and Play: No configuration and installation required.
Power Supply: The product only supports PoE power supply, not AC or DC power supply.
Footnotes:
*PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to the power consumption of PoE-powered devices or the cable quality and type.
Specifications:
|
HARDWARE FEATURES |
|
|---|---|
|
Standards and Protocols |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.1p |
|
Interface |
5× 10/100/1000Mbps RJ45 Ports |
|
|
1× 10/100/1000 Mbps RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4) |
|
|
4× 10/100/1000 Mbps RJ45 PoE Out Ports (compliance with 802.3af/at) |
|
|
AUTO Negotiation |
|
|
AUTO MDI/MDIX |
|
Network Media |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
100BASE-TX: UTP category 5, 5e cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
|
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) |
|
|
EIA/TIA-568 100Ω STP (maximum 100m) |
|
Fan Quantity |
Fanless |
|
Power Supply |
Only Powered by PoE Device |
|
PoE Ports (RJ45) |
PoE In Port: Port 5, Compliance with 802.3af/at/bt Type3/bt Type4 |
|
|
PoE Out Ports: Ports 1-4, compliance with 802.3af/at |
|
|
PoE Power Budget: |
|
|
- 66 W when powered by 802.3bt Type 4 (90 W) |
|
|
- 47 W when powered by 802.3bt Type 3 (60 W) |
|
|
- 21 W when powered by 802.3at (30 W) |
|
|
- 9 W when powered by 802.3af (15.4 W) |
|
Dimensions (W x D x H) |
6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm) |
|
Max Power Consumption |
2.68 W (90W PoE In, with no PD connected) |
|
|
68.59 W (90W PoE In, with 66 W PD connected) |
|
Max Heat Dissipation |
9.112 BTU/h (90W PoE In, with no PD connected) |
|
|
233.206 BTU/h (90W PoE In, with 66 W PD connected) |
|
PERFORMANCE |
|
|
Switching Capacity |
10 Gbps |
|
Packet Forwarding Rate |
7.44 Mpps |
|
MAC Address Table |
2k |
|
SOFTWARE FEATURES |
|
|
Advanced Features |
Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission) |
|
|
PoE Auto Recovery (Ports 1-4) |
|
|
Mac Address Auto-Learning and Auto-Aging |
|
|
IEEE 802.3x Flow Control |
|
|
802.1p/DSCP quality of service |
|
|
IGMP Snooping |
|
Transfer Method |
Store-And-Forward |
|
OTHERS |
|
|
Certification |
CE, FCC, RoHS |
|
Package Contents |
TL-SG1005P-PD |
|
|
Installation Guide |
|
Environment |
Operating Temperature: -30–70 ? (-22–158 ?) |
|
|
Storage Temperature: -40–70 ? (-40–158 ?) |
|
|
Operating Humidity: 10–90% RH non-condensing |
|
|
Storage Humidity: 5–90% RH non-condensing |
5-Port Gigabit Desktop PoE+ Switch with 1-Port PoE++ In and 4-Port PoE+Out
MAC Address Table: 2K
Packet Forwarding Rate: 7.44 Mpps
Ports: 5x Gigabit RJ45
1x Gigabit RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
4x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at)
Power Supply: Only Powered by PoE Device
Standards: IEEE 802.3i
802.3u
802.3ab
802.3af
802.3at
802.3bt
802.3x
802.1p
Switching Capacity: 10 Gbps
TL-SG1005P-PD
MAC Address Table: 2K
Packet Forwarding Rate: 7.44 Mpps
Ports: 5x Gigabit RJ45
1x Gigabit RJ45 PoE In Ports (compliance with 802.3af/at/bt Type3/bt Type4)
4x Gigabit RJ45 PoE Out Ports (compliance with 802.3af/at)
Power Supply: Only Powered by PoE Device
Standards: IEEE 802.3i
802.3u
802.3ab
802.3af
802.3at
802.3bt
802.3x
802.1p
Switching Capacity: 10 Gbps
TL-SG1005P-PD
