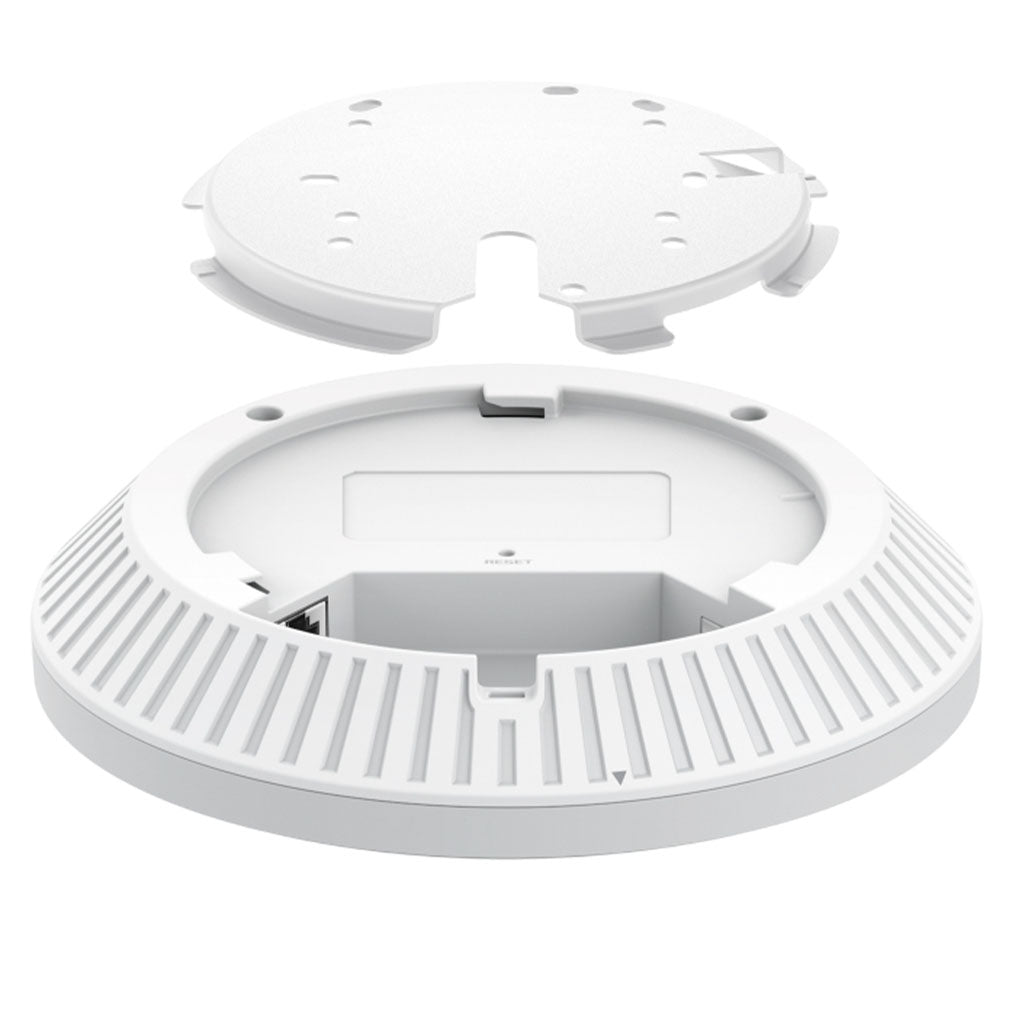

TP-Link EAP723 BE3600 Dual-Band Ceiling Mount Wi-Fi 7 Access Point - Excludes Power Adapter
TP-Link EAP723 BE3600 Dual-Band Ceiling Mount Wi-Fi 7 Access Point - Excludes Power Adapter
Description
• TP-Link EAP723 BE3600 Dual-Band Wi-Fi 7 Ceiling Mount Access Point 1x 2.5G Ethernet Port
• Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
• Power Consumption: 8.6 W (For PoE); 16.0 W (For DC)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Wireless Client Capacity: 250+
• Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
• Frequency: 2.4 GHz and 5 GHz
• EAP723
• Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
• Power Consumption: 8.6 W (For PoE); 16.0 W (For DC)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Wireless Client Capacity: 250+
• Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
• Frequency: 2.4 GHz and 5 GHz
• EAP723
$129.00
Sale price
$129.00
In stock at Mwave
Dispatch or pick up within 24 hours
BANK TRANSFER (EFT)
$129.00
Sale price
$129.00
In stock at Mwave
Dispatch or pick up within 24 hours
Accepted payment methods
Description
• TP-Link EAP723 BE3600 Dual-Band Wi-Fi 7 Ceiling Mount Access Point 1x 2.5G Ethernet Port
• Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
• Power Consumption: 8.6 W (For PoE); 16.0 W (For DC)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Wireless Client Capacity: 250+
• Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
• Frequency: 2.4 GHz and 5 GHz
• EAP723
View Full Details
• Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
• Power Consumption: 8.6 W (For PoE); 16.0 W (For DC)
• Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
• Wireless Client Capacity: 250+
• Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
• Frequency: 2.4 GHz and 5 GHz
• EAP723
| HARDWARE FEATURES | |
|---|---|
| Interface | 1× 2.5G Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included) |
| Power Consumption | • 18.6 W (For PoE); • 16.0 W (For DC) |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.4 in (160 × 160 × 36.7 mm) |
| Antenna Type | • 2.4 GHz: 2× 4.0 dBi • 5 GHz: 2× 5.0 dBi |
| Mounting | Ceiling / Wall Mounting (Kits Included) |
| WIRELESS FEATURES | |
|---|---|
| Coverage | 140?(1500 ft²)*** |
| Wireless Client Capacity | 250+** |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax/be |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz) |
| Wireless Functions | • 4K-QAM‡ • Seamless Roaming • MU-MIMO‡ • EHT160‡ • Mesh? • OFDMA‡ • Load Balance • Band Steering • Beamforming • Airtime Fairness • Multiple SSIDS:16(8 on each band) • Wireless Schedule • Reboot Schedule • QoS(WMM) • Rate Limit • Static IP/Dynamic IP • RADIUS Accounting • MAC Authentication |
| Wireless Security | • Captive Portal Authentication? • Access Control • Maximum number of MAC Filter: 4,000 • Wireless Isolation Between Clients • VLAN • Rogue AP Detection • WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise |
| Transmission Power | < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, band 1&band 2, EIRP) < 28 dBm (5 GHz, band 3, EIRP) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
| Cloud Access | Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller. |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| Web-based Management | Yes |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS, IC |
| Package Contents | • EAP723 • Installation Guide • Ceiling/Wall Mounting Kit |
| Environment | • Operating Temperature: 0 °C–40 °C (32 °F–104 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing; |
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput, wireless coverage, and connected devices are not guaranteed and will vary as a result of internet service provider factors, network conditions, client limitations, and environmental factors, including building materials, obstacles, volume and density of traffic, and client location.
‡Use of Wi-Fi 7 (802.11be) and features including 160 MHz Bandwidth, 4K-QAM, Multi-RUs, OFDMA and MU-MIMO requires clients to also support the corresponding features.
**The actual capacity depends on the wireless environment and client traffic and is generally less than the maximum number of client connections.
***Coverage value is calculated based on laboratory testing. Actual coverage is not guaranteed and will vary as a result of client limitations and environmental factors.
?Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of an Omada SDN controller. Please refer to the User Guides of Omada SDN controllers for configuration methods.
1x 2.5G Ethernet Port
EAP723
Frequency: 2.4 GHz and 5 GHz
Power Consumption: 8.6 W (For PoE); 16.0 W (For DC)
Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
TP-Link EAP723 BE3600 Dual-Band Wi-Fi 7 Ceiling Mount Access Point
Wireless Client Capacity: 250+
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
EAP723
Frequency: 2.4 GHz and 5 GHz
Power Consumption: 8.6 W (For PoE); 16.0 W (For DC)
Power Supply: 802.3at PoE or 12V/1.5A DC (Power Adapter Is Not Included)
Signal Rate: 688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
TP-Link EAP723 BE3600 Dual-Band Wi-Fi 7 Ceiling Mount Access Point
Wireless Client Capacity: 250+
Wireless Standards: IEEE 802.11 a/b/g/n/ac/ax/be
