Synology SA3610 12-Bay 2U SAS Rackmount Xeon CPU 16GB RAM

SA3610

Flexible petabyte-scale storage for growing storage needs.

When scalability meets performance

The Synology SA3610 and SA3410 are designed for on-demand scalability and offer up to 1.7 PB of storage when fully expanded. They let enterprise data centers, studios, and growing businesses store large data volumes without sacrificing speed and performance.

Fast and reliable

Over 6,200/3,000 MB/s seq. read/write, built-in 10GbE, and hardware and software redundancy.

Expand and adjust

Add up to 84 extra drive bays, 40GbE or Fibre Channel, and SSD cache volumes whenever needed.

Host core applications

Back up 1,000+ endpoints, manage 128 IP cameras, or provide mailboxes for up to 1,600 users.

Flexibly expand storage capacity

Scale up your SA3610 and SA3410 flexibly to meet growing data demands whenever needed. Increase your storage capacity by adding up to seven 12-bay RX1222sas expansion units as your deployment grows.

Networking capabilities

Built-in dual 10GbE RJ-45 ports allow for high-speed network transmission right out of the box. Users can also boost network redundancy and bandwidth by adding optional 10/25/40GbE and Fibre Channel adapter cards into the two available PCIe 3.0 expansion slots.

Reliable and dependable

Protect your data and leverage hardware and software safeguards to ensure data and service availability in the face of disasters or malicious attacks.

Data Mirroring

Create a Synology High Availability (SHA) cluster on your servers to minimise data loss and enjoy minute-level failover with two SA3610 or SA3410 to act as active and passive servers.

Versatile data storage

Consolidate business data, backup data, and more in a highly scalable server.

File server

Utilise SA3610 and SA3410’s storage capacity and flexible expansion capabilities to host large amounts of data on a central repository.

Backup repository

Back up PCs, servers, Synology systems, SaaS data, and VMs, and back up your backup servers themselves with a scalable central storage solution.

Business application platform

Boost team efficiency by utilising Synology productivity solutions to work and communicate across teams or test out new software in company-hosted containers or virtual machines.

Centralised monitoring and management

Monitor and manage your Synology fleet from a central interface, on-prem or in the cloud.

Central Management System (CMS)

Manage Synology servers from a central console using group policies, task delegation, batch updates, and more.

Active Insight

Monitor your global Synology fleet’s performance, backup status, login activity and more with the power of the cloud.

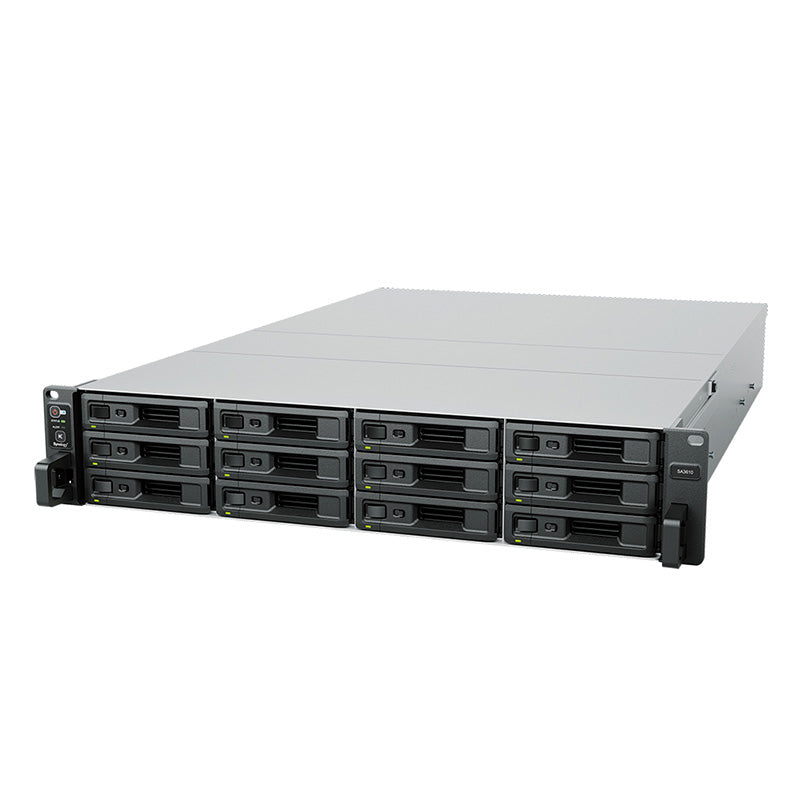

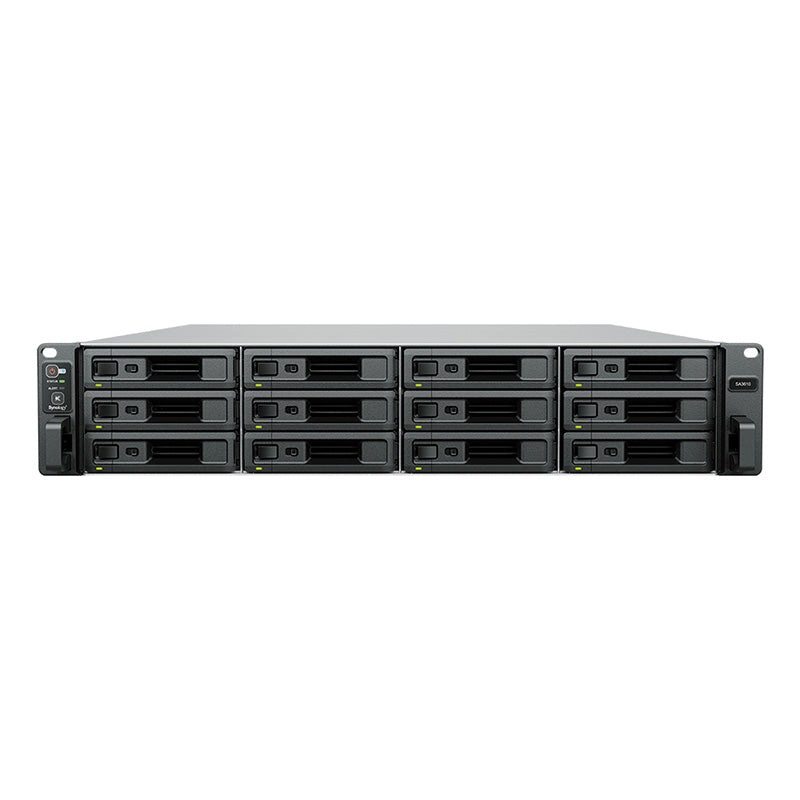

SA3610

1 - Power Button and Indicator
2 - Status indicator
3 - Alert indicator
4 - Mute button
5 - Drive status indicator
6 - Drive tray
7 - Rail kit release tab

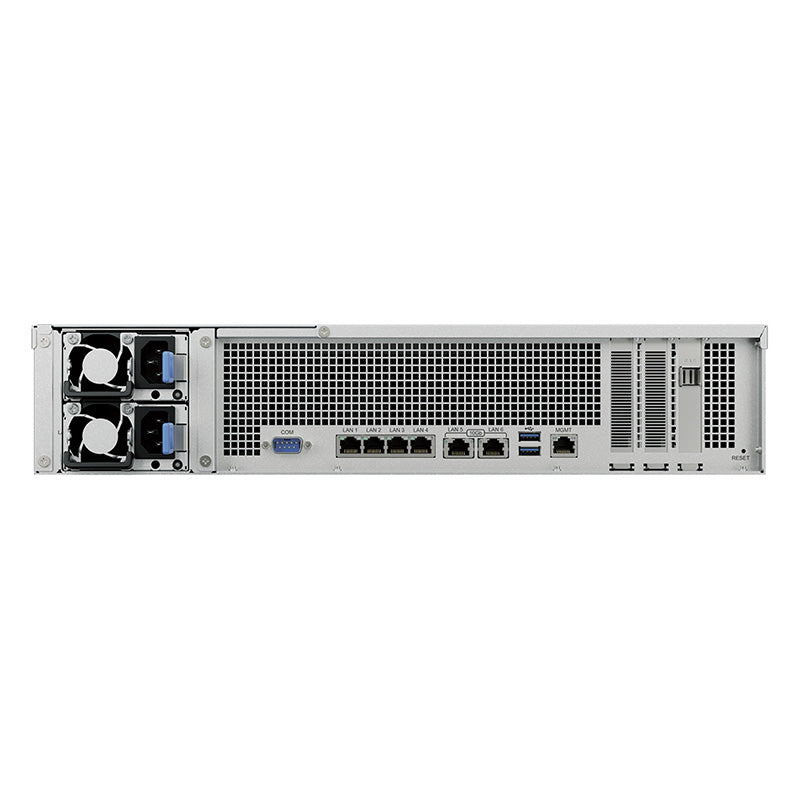

8 - PSU Fans
9 - Power port
10 - PSU Indicators
11 - Console Port
12 - 1GbE RJ-45 Ports
13 - 10GbE RJ-45 Ports
14 - USB 3.2 Gen 1 Ports
15 - Management Port
16 - PCI Express Expansion Slots
17 - Expansion Port
18 - Reset Button
