FlashStation FS3410

Economical, high-performance data management solution for SMBs.

Harness all-flash storage to speed up business workflows

Storage

Supports 24 x 2.5” SATA SSDs

Throughput

Over 356,500/129,400 iSCSI 4K random read/write IOPS1

Memory

16 GB DDR4 ECC RDIMM, up to 128 GB

Expandability

Optional 25/40GbE through PCIe 3.0 expansion

---

Powerful flash storage server

Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.

---

Built for high reliability

The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.

Out-of-band (OOB) management

Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.

Dual power supply

Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.

Failover Cluster

Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimise downtime when performing system updates or upgrades.

---

Powerful networking options

The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.

Built-in fast connectivity

Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.

Support for 10/25/40GbE

Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.

Failover and network balancing

Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.

---

Versatile data storage

The FS3410 fits perfectly in file server, block storage, or light application server roles that require high availability, reliability, and leading-edge storage technology.

VM storage & protection

Extremely fast IOPS performance combined with support for common virtualization platforms, iSCSI SAN service management, and extensive VM protection solutions make the FS3410 ideal for supporting and protecting VMs.

High-performance file serving & syncing

Leverage FS3410’s blistering speeds to provide low-latency access to massive files. Enhance the collaborative process with powerful and user friendly cross-site syncing capabilities.

Business application platform

Host cost-efficient business solutions, either through containers, virtual machines, or Synology DiskStation Manager (DSM)’s own solutions, including a powerful free backup suite, a versatile mail server, and a surveillance VMS with transparent licensing.

---

Get more with DiskStation Manager

Take advantage of a host of native productivity, management, and security solutions available in the web-based Synology DSM operating system.

Data Protection

Keep your business safe from data loss and minimise service downtime.

User Management

Manage user accounts and devices throughout your business with powerful directory services.

Security

Shield your Synology NAS from the most sophisticated threats with industry-leading security solutions.

File Management

Manage, sync, and share files from multiple devices through a centralised platform.

System Administration

Manage the health of your deployments and centrally administer updates with ease.

Public Cloud Integration

Back up and synchronise data easily between public cloud accounts and your NAS.

---

FlashStation FS3410

1 - Power Button and Indicator
2 - Status Indicator
3 - Alert Indicator
4 - Mute Button
5 - Drive status indicator
6 - Drive Trays
7 - Rail Kit Release Tabs
8 - PSU Fans
9 - Power Ports
10 - PSU Indicators
11 - Console Port
12 - PCI Express Expansion Slots
13 - 1GbE RJ-45 Ports
14 - 10GbE RJ-45 Ports
15 - USB 3.2 Gen 1 port
16 - Management Port
17 - Reset Button

---

Compatibility: 2.5" SATA SSD
CPU: Intel Xeon D-1541
8-core 2.1 (base)/2.7 (turbo) GHz
Drive Bays: 24
Form Factor (RU): 2U
FS3410
I/O: 4x RJ45 1GbE
2x RJ45 10GbE
1x Out-of-band Management LAN
15x LAN
2x USB 3.2 Gen1
PCIe Expansion: 2x Gen3 x8 (x8 link)
PSU: 550W
RAM: 16GB DDR4 ECC RDIMM
Max Memory Capacity: 128GB (4x 32GB)
Redundant Power Supply: Yes

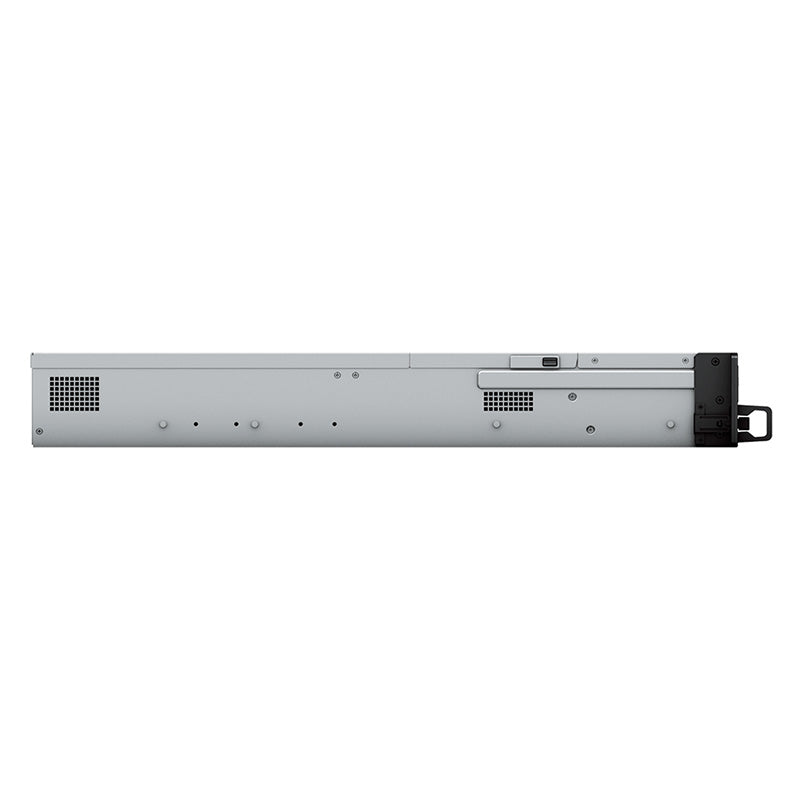

Synology FlashStation FS3410 24-Bay 2U Diskless NAS Xeon CPU 16GB RAM
