StarTech VGAVideo Extender Over Cat 5 With Audio
Description
• StarTech VGAVideo Extender Over Cat 5 With Audio Extend up to 150m
• Up to 4 Monitors (2 at local, 2 at remote)
• Mounting Brackets Included
• Up to 4 Monitors (2 at local, 2 at remote)
• Mounting Brackets Included
$255.95
Sale price
$255.95
BANK TRANSFER (EFT)
$255.95
Sale price
$255.95
Accepted payment methods
Description
• StarTech VGAVideo Extender Over Cat 5 With Audio Extend up to 150m
• Up to 4 Monitors (2 at local, 2 at remote)
• Mounting Brackets Included
View Full Details
• Up to 4 Monitors (2 at local, 2 at remote)
• Mounting Brackets Included

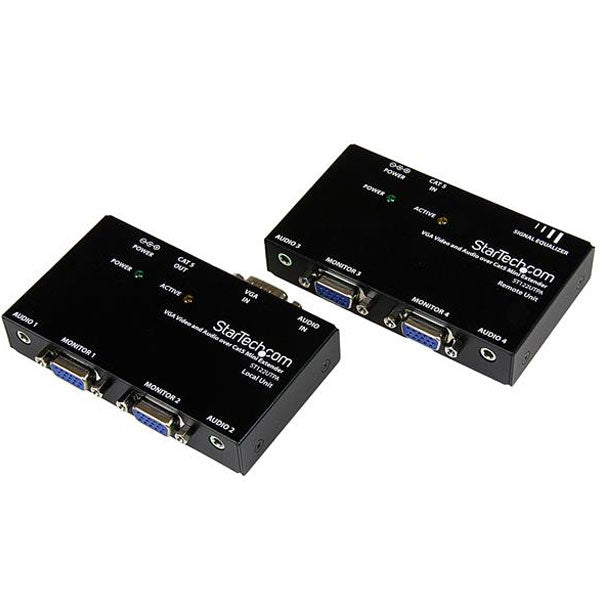

The ST122UTPA VGA Video Extender over Cat 5 with Audio allows up to 4 (2 local and 2 remote) monitors to be connected to a single PC. The video signal and corresponding audio are sent to the remote unit over standard 4 pair Category 5 or better (Cat 5e recommended) UTP cable, supporting extended video distances of up to 150m / 500ft.
The VGA video and audio extender includes a local transmitter and a remote receiver, providing an out-of-the box solution that's perfect for point to point digital signage applications that require audio. To simplify installation, this kit also includes a mounting bracket for the ST122UTPA receiver to install onto walls, desks or cabinets for a tidy setup.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.
| Connector(s) | |
| Local Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| RJ-45 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| VGA (15 pin, High Density D-Sub) Male | |
| Remote Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| RJ-45 Female | |
| VGA (15 pin, High Density D-Sub) Female | |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | No |
| Ports | 2 |
| Packaging Information | |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Performance | |
| Max Distance | 150 m / 500 ft |
| Maximum Cable Length | 152.4 m [500 ft] |
| Supported Resolutions | 1440x900 @ 150ft / 50m 1280x1024 @ 300ft / 100m 1024x768 @ 500ft / 150m |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 20 mm [0.8 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 181 g [6.4 oz] |
| Product Width | 83 mm [3.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 0.5A |
| Output Voltage | 12 DC |
| Power Consumption (In Watts) | 6 |
| Power Source | AC Adapter Included |

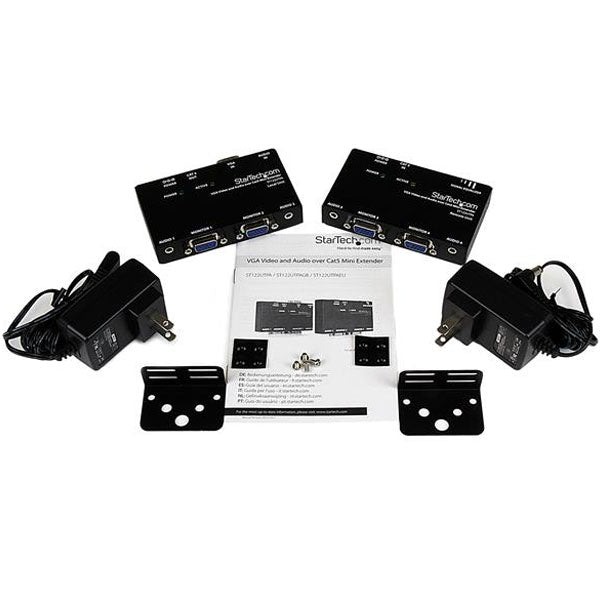

| What's in the Box | |
| Included in Package | Instruction Manual |
| Local VGA Extender Unit | |
| Mounting Bracket Kit (w/ screws) | |
| Power Adapter | |
| Remote VGA Extender Unit | |
| Sets Rubber Feet | |
Extend up to 150m
