StarTech VGA Video Extender Over CAT5 (ST121 Series)
StarTech VGA Video Extender Over CAT5 (ST121 Series)
Description
StarTech VGA Video Extender Over CAT5 (ST121 Series)
Extends up to 150m
Supports up to 4 Displays (2 at local, 2 at remote unit)
Extends up to 150m
Supports up to 4 Displays (2 at local, 2 at remote unit)
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$218.95
Sale price
$218.95
Accepted payment methods
Description
StarTech VGA Video Extender Over CAT5 (ST121 Series)
Extends up to 150m
Supports up to 4 Displays (2 at local, 2 at remote unit)
View Full Details
Extends up to 150m
Supports up to 4 Displays (2 at local, 2 at remote unit)
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
The ST121UTP VGA Video Extender over Cat5 allows you to extend your VGA video signal by up to 150 meters (500 feet) and connect up to 4 displays (2 local and 2 remote) from that single source. The ST121UTP is a bundled kit including both a local transmitter and a remote receiver unit, offering a complete solution for scenarios in which remote monitor displays are required.

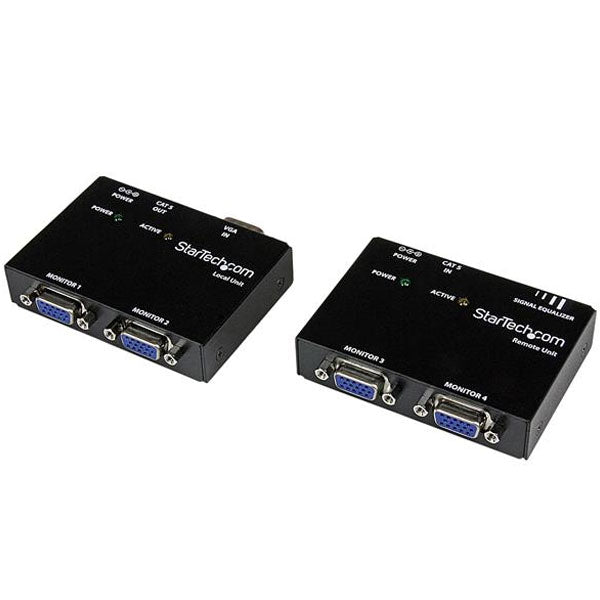

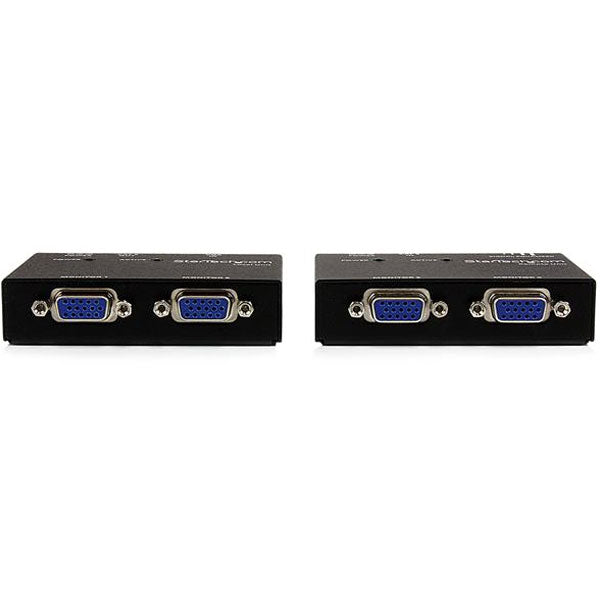

The local unit features a single VGA input as well as two VGA outputs giving you the ability to view and split your source VGA signal to two independent displays locally. The VGA video signal is then sent over standard 4 pair Category 5 or better UTP cable to the remote unit which also features two additional VGA outputs giving you the freedom to display your VGA source on up to four monitors in total.
The included a mounting bracket for the ST121UTP receiver provides versatile mounting options such as a wall, desk or cabinet.
This product is TAA compliant and backed by a Startech.com 2-year warranty with free lifetime technical support.

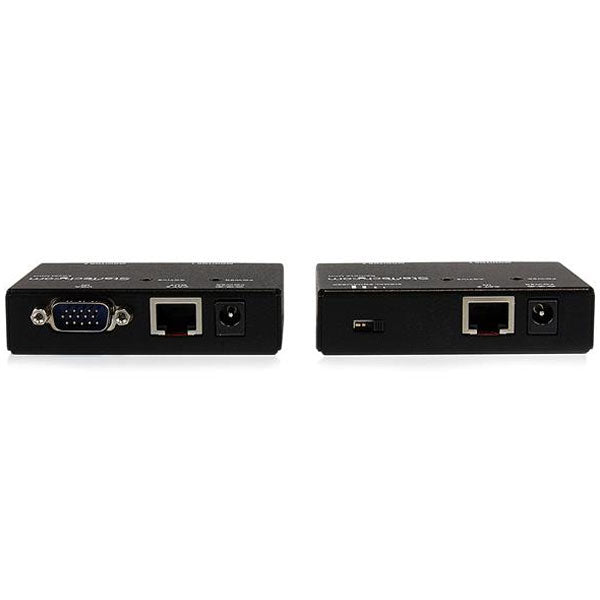

| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| VGA (15 pin, High Density D-Sub) Male | |
| Remote Unit Connectors | RJ-45 Female |
| VGA (15 pin, High Density D-Sub) Female | |
| Hardware | |
| Audio | No |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | No |
| Ports | 1 |
| Packaging Information | |
| Shipping (Package) Weight | 1.1 kg [2.5 lb] |
| Performance | |
| Max Distance | 150 m / 500 ft |
| Supported Resolutions | 1440x900 @ 150ft / 50m 1280x1024 @ 300ft / 100m 1024x768 @ 500ft / 150m |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 20 mm [0.8 in] |
| Product Length | 60 mm [2.4 in] |
| Product Weight | 181 g [6.4 oz] |
| Product Width | 83 mm [3.3 in] |
| Power | |
| Center Tip Polarity | Positive |
| Output Current | 0.6A |
| Output Voltage | 9 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 5.4 |
| Power Source | AC Adapter Included |

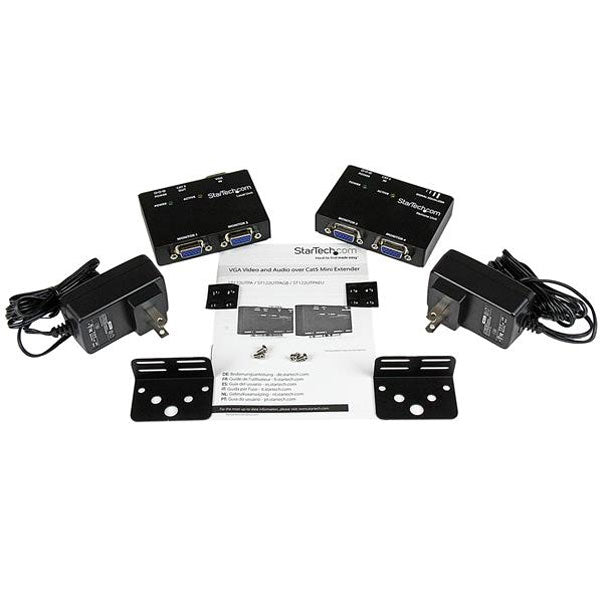

| What's in the Box | |
| Included in Package | Instruction Manual |
| Local VGA Extender Unit | |
| Mounting Bracket for Receiver (w/ screws) | |
| Power Adapter | |
| Remote VGA Extender Unit | |
| Sets Rubber Feet | |
