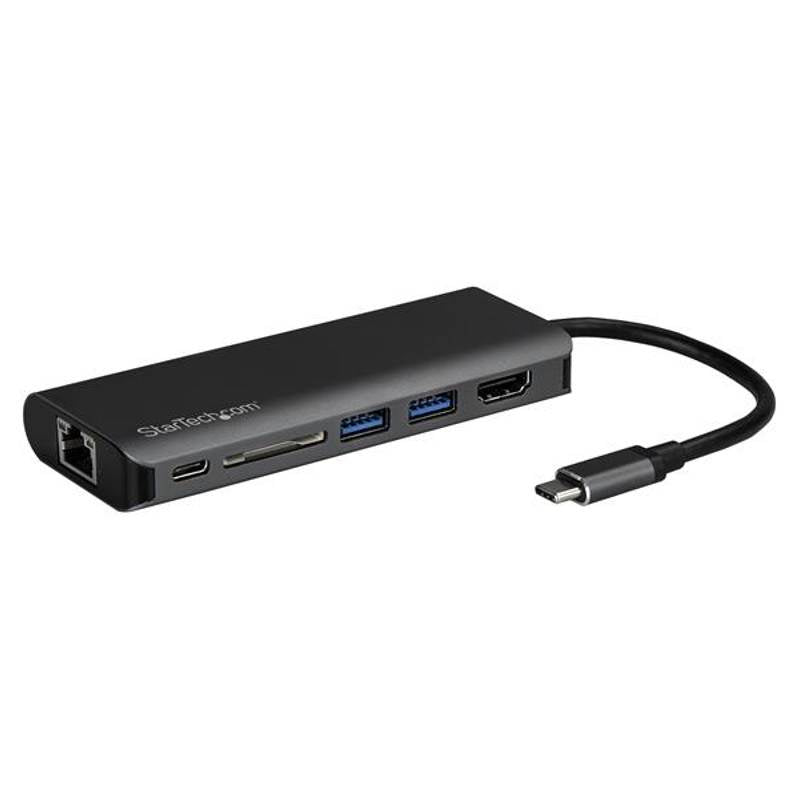

Expand the connectivity of your USB-C™ enabled laptop. This USB-C multiport adapter lets you turn your laptop into a powerful workstation, virtually anywhere you go, and eliminates the hassle of carrying and connecting many different port adapters. The USB-C adapter lets you add 4K Ultra HD HDMI® video output, two USB 3.0 Type-A ports, one Gigabit Ethernet port and one SD card reader slot through your laptop’s USB-C port.

You can also use your laptop’s USB-C power adapter to power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0. It’s the ideal accessory for your MacBook Pro or other USB Type-C™ equipped laptop, and it’s also Thunderbolt™ 3 port compatible.

Create a powerful workstation

When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. It offers a 4K HDMI port (with audio), so you can easily connect a high-resolution monitor and gain access to more screen space. With higher resolutions, you can view more windows at once and increase your productivity.

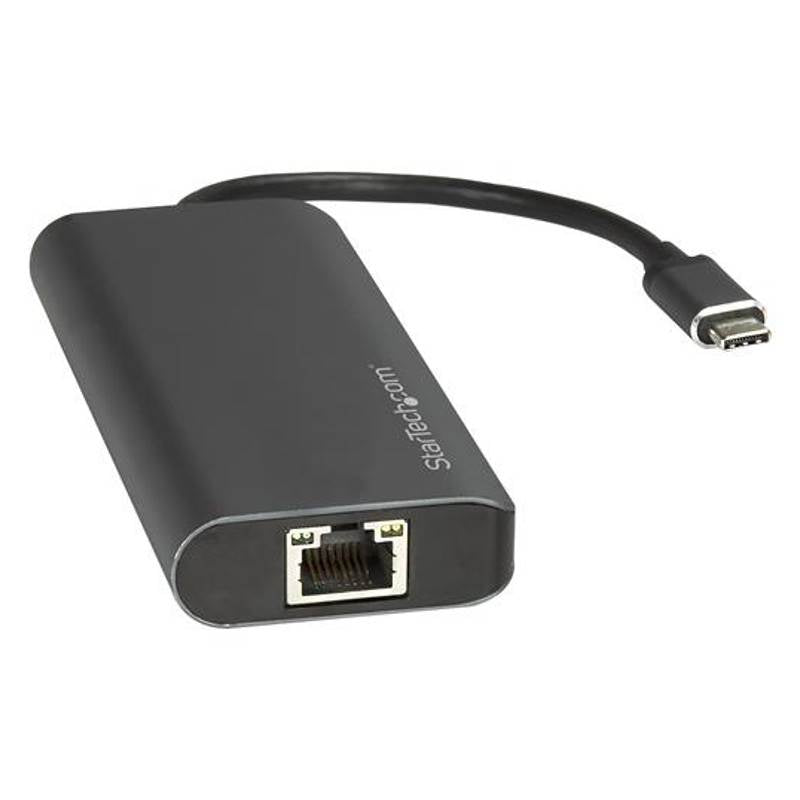

The Gigabit Ethernet port ensures reliable wired network access, which is ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect your existing peripheral devices, like your mouse or flash drive.

The USB-C adapter also features an SD card reader slot so you can access all of your multimedia content.

Designed for easy portability

This multiport adapter means you don’t have to carry multiple power adapters with you. Ideal for mobile use, it features a USB-C port that supports USB Power Delivery 2.0 (USB PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.

The versatile multiport adapter is compact and lightweight, so it's easy to tuck into your laptop bag. It consolidates multiple ports into a single adapter, which means you don’t need to bring along multiple single-function adapters.

The DKT30CSDHPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

Hardware
Displays Supported	1
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Shipping (Package) Weight	156 g [5.5 oz]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	152 mm [6 in]
Color	Gray and Black
Enclosure Type	Plastic
Product Height	16 mm [0.6 in]
Product Length	116 mm [4.6 in]
Product Weight	86 g [3 oz]
Product Width	46 mm [1.8 in]
Power
Power Delivery	60W
Power Source	USB-Powered
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 Mac OS® 10.11 to 10.13 Chrome OS™
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
	Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)

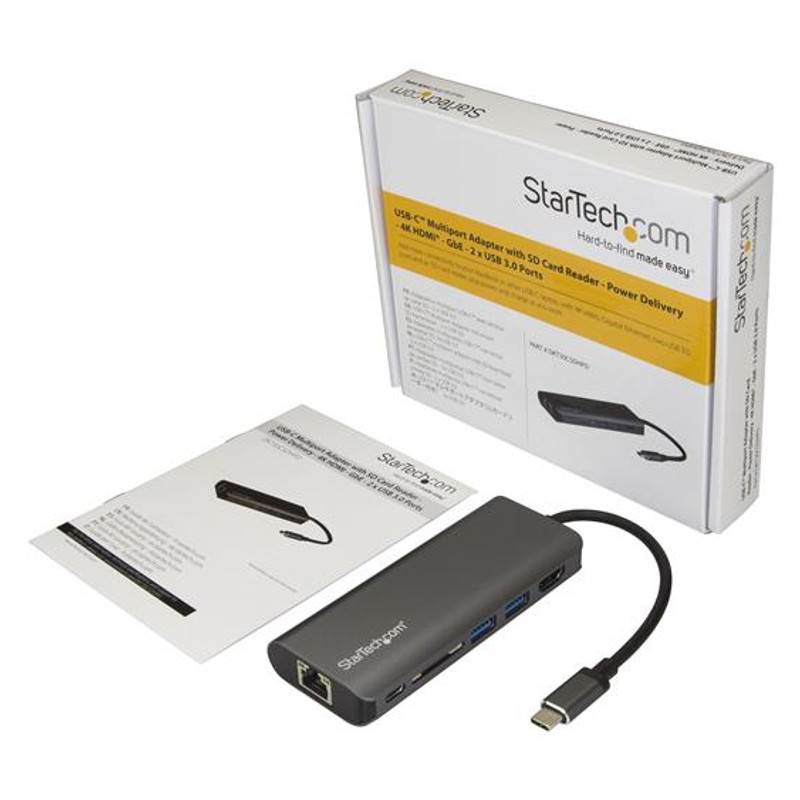

What's in the Box
Included in Package	multiport adapter
	quick-start guide
Hardware
Chipset ID	VIA/VLI - VL813 VIA/VLI - VL100 Genesys Logic - GL857L Parade - PS176 Realtek - RTL8153
Bus Type	USB-C
4K Support	Yes
Environmental
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Operating Temperature	0?C to 55?C (32°F to 131°F)
Humidity	40~50% RH
Connector(s)
Connector Type(s)	USB-C (24 pin) USB Power Delivery only Female
	USB Type-C (24 pin) USB 3.0 Male
	USB Type-A (9 pin) USB 3.0 Female
	SD / MMC Slot Female
	RJ-45 Female
	HDMI (19 pin) Female

Automatic driver install Windows macOS Chrome OS
Portable docking station w/ 60W Power Delivery passthrough uses laptops USB Type-C power adapter to charge the laptop (48W) and power the dock (12W)
USB C Multiport adapter w/ 4K 30Hz HDMI video display / Gigabit Ethernet / 2x USB-A 3.0 5Gbps hub
USB-C mini dock for Thunderbolt 3/USB-C Laptops + Ultrabooks like MacBook Pro HP Dell XPS Lenovo ThinkPad X1 Surface Laptop 3/Pro 7 Chromebook
USB-C travel dock w/ SD / SDHC / SDXC card reader
