Expand the connectivity of your USB-C™ enabled laptop. This sleek and compact TAA compliant USB-C multiport adapter, in attractive silver and white, is the perfect accessory for your MacBook Pro, MacBook, Chromebook™ or other USB Type C™ equipped laptop. The adapter is also Thunderbolt™ 3 port compatible, so you can connect it to your Thunderbolt 3 equipped laptop.

The USB-C adapter lets you create a powerful workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI video output, two USB 3.0 ports, and a Gigabit Ethernet port. You can also power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0.

Create a powerful workstation

When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. It offers a 4K HDMI® port (with audio), so you can easily connect a high-resolution monitor and gain access to more screen space. With higher resolutions, you can view more windows at once and increase your productivity.

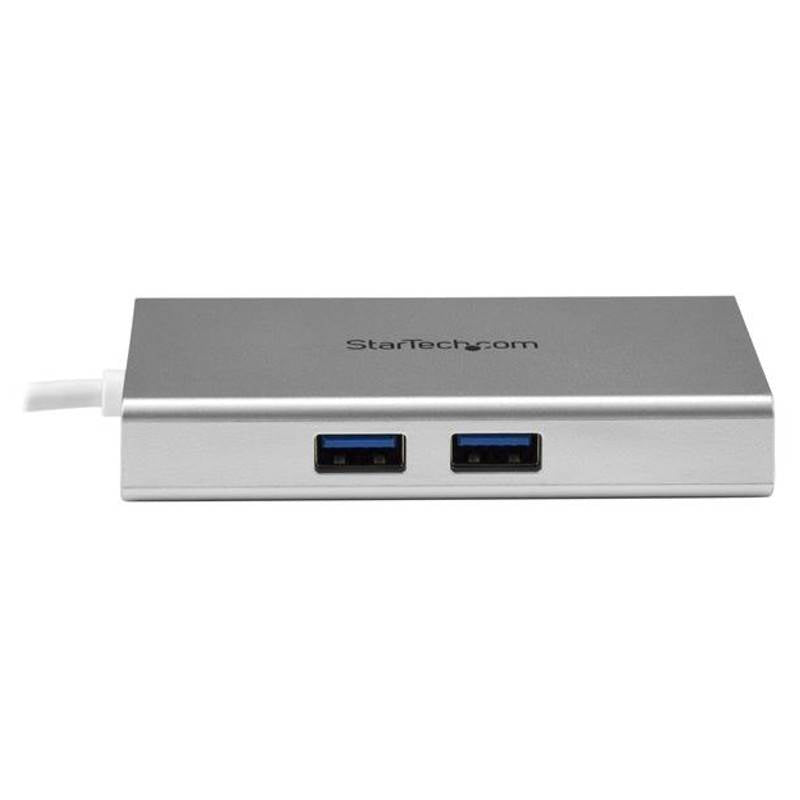

The Gigabit Ethernet port ensures reliable wired network access, which is ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect your existing peripheral devices, like your mouse or flash drive.

Designed for easy portability

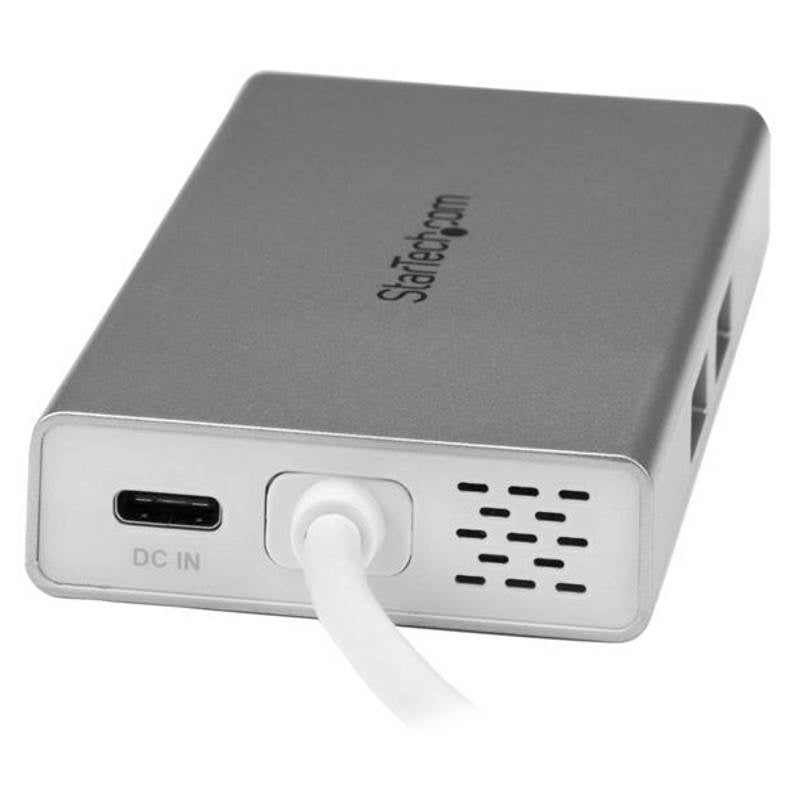

This multiport adapter means you don’t have to carry multiple power adapters with you. Ideal for mobile use, it features a USB-C port that supports USB Power Delivery 2.0 (USB PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.

The versatile multiport adapter is compact and lightweight, so it's easy to tuck into your laptop bag. It consolidates multiple ports into a single adapter, which means you don’t need to bring along multiple single-function adapters.

The adapter also features an integrated USB-C cable, which means one less cable to carry with you. The cable’s extended length at 25 cm (9.84"), provides you with more placement options, so you can position the adapter exactly where you need it, to work in comfort.

The DKT30CHPDW is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP alt mode.

Hardware
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Shipping (Package) Weight	193 g [6.8 oz]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	250 mm [9.8 in]
Color	Silver & White
Enclosure Type	Plastic
Product Height	16 mm [0.6 in]
Product Length	96 mm [3.8 in]
Product Weight	64 g [2.3 oz]
Product Width	51 mm [2 in]
Power
Power Delivery	60W
Power Source	USB-Powered
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 Mac OS® 10.9 to 10.13 Chrome OS™
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
	Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)

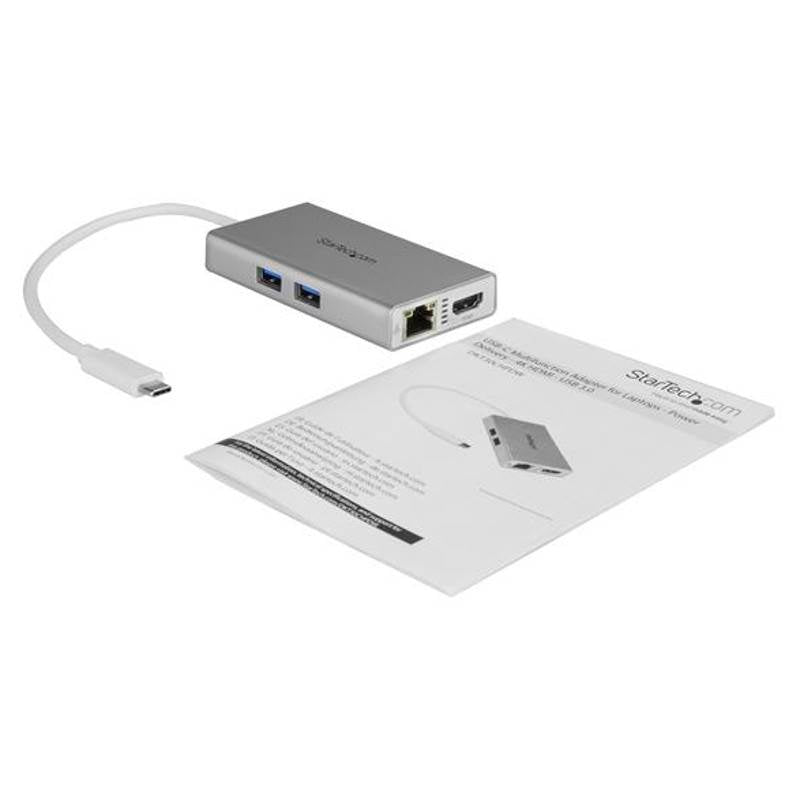

What's in the Box
Included in Package	quick-start guide
	USB-C multiport adapter
Hardware
Displays Supported	1
Chipset ID	VIA/VLI - VL813 VIA/VLI - VL100 Chrontel - CH7525A ASIX - AX88179
Bus Type	USB-C
4K Support	Yes
Environmental
Storage Temperature	-10°C to 65°C (14°F to 149°F)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Humidity	0~85% RH (Non-condensing)
Connector(s)
Connector Type(s)	USB Type-C (24 pin) USB 3.0 Male
	USB Type-C (24 pin) USB 3.0 Female
	USB Type-A (9 pin) USB 3.0 Female
	RJ-45 Female
	HDMI (19 pin) Female

10" attached cable for extended reach to ports on 2-in-1s or device on riser
4-in-1 USB-C multiport adapter with 4K 30Hz HDMI video (single display)/2x USB-A 3.0 5Gbps/Gigabit Ethernet/60W Power Delivery pass through
For USB Type-C/Thunderbolt 3 laptops Ultrabooks Chromebooks tablets phones from HP/Dell/Lenovo/MacBooks/Surface/Samsung
Portable USB-C mini docking station powered by laptop USB bus or external USB-C power adapter
USB C travel dock for Windows/macOS/Chrome OS/Android
