Transition from the legacy USB-A (USB 3.0) to the new USB-C with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 100W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.

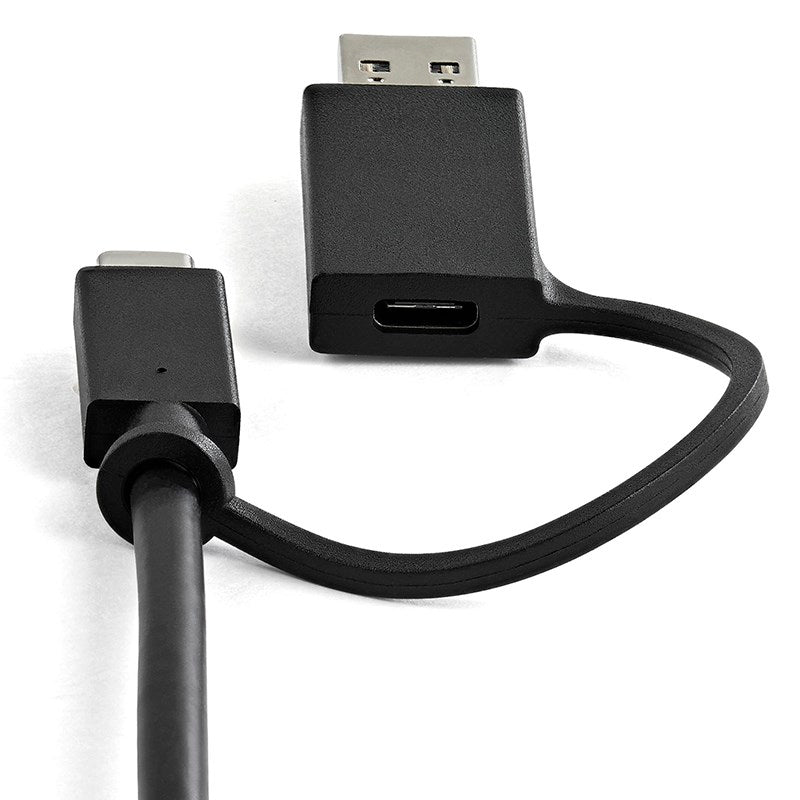

The Uniquely Universal Host Cable

The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.

100W Power Delivery

For high performance laptops that require more charging power, the dock powers and charges your laptop as you work with 100W PD for faster charging, using the 170W power adapter - all through a single cable.

Flexible Monitor Connections

This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.

• Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz

• Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz

• Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz

• Single 5K DisplayPort* | Up to 5120 × 2880

^{*Requires monitor support for 5K using two DP ports}

Certified for Universal Compatibility & Reliability

This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.

Easy and Convenient Setup

For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).

The Connections You Need

Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.

For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM & SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.

Connected Device Transparency with the StarTech.com MAC Address Changer Utility

The DK30C2DPEP, includes a free Windows® application that enables you to better manage your enterprise network security. When you connect to your network through the ethernet port of the dock, the computer’s MAC address is typically not broadcast to the network, as your network only sees the MAC address of the docking station. However, the StarTech.com MAC Address Changer or Cloning software enables the USB-C dock to use MAC address spoofing of the connected Windows laptop rather than the MAC address of the dock itself. This ensures your network administrators have full visibility of each device on the network and can monitor and limit activity accordingly. To request access to our MAC Address Changer utility, please contact our Technical Support Department by phone, live chat, or e-mail.

The IT Pro’s Choice Since 1985

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.

DK30C2DPEP is backed by a StarTech.com 3-year warranty and free lifetime technical support.

" "

Connector(s)
Connector Type(s)	3.5 mm Mini-Jack (4 Position) Female
	DisplayPort (20 pin) Female
	Ethernet Gigabit Female
	HDMI (19 pin) Female
	USB 3.0 A (Fast-Charge, 9 pin) Female
	USB Type-A (9 pin) USB 3.0 (5 Gbps) Female
	USB Type-C (Fast-Charge, 24 pin) USB 3.0 Female
Environmental
Humidity	0~95% RH
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Hardware
4K Support	Yes
Bus Type	USB 3.0
	USB-C
Chipset ID	DisplayLink - DL6950 Genesys Logic - GL3523 Fresco Logic - FL7102 Fresco Logic - FL7201 VIA Labs - VL160 RealTek - RTL8153 Texas Instruments - TS3A225E
Displays Supported	2
Fast-Charge Port(s)	Yes
Industry Standards	USB Power Delivery Specification Rev. 3.0 USB Battery Charging Specification Rev. 1.2 DisplayPort 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface	USB 3.0
K-Lock Slot	Kensington Standard Slot (K-Slot)
Packaging Information
Package Height	90 mm [3.5 in]
Package Length	27 cm [10.6 in]
Package Width	15.5 cm [6.1 in]
Shipping (Package) Weight	1.3 kg [2.9 lb]
Performance
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	2x HDMI - 4096 x 2160p @60Hz 2x DisplayPort - 4096 x 2160p @60Hz 1x HDMI + 1x DisplayPort - 4096 x 2160p @60Hz 1x 5K DisplayPort using 2 DP video ports - 5120 x 2880 @60Hz Lower resolutions are also supported. For example, if the max is 4096 x 2160p (4K), it also supports 3840 x 2160p (4K), 2560 x 1600p and 2560 x 1440p.
PXE	Yes
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Color	Black & Space Gray
Material	Plastic
Product Height	3 cm [1.2 in]
Product Length	22 cm [8.7 in]
Product Width	80 mm [3.1 in]
Weight of Product	280 g [9.9 oz]
Power
Center Tip Polarity	Positive
Input Current	2.5 A
Input Voltage	100 - 240 AC
Output Current	8.5 A
Output Voltage	20V DC
Plug Type	N
Power Consumption (In Watts)	170 W
Power Delivery	100W
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com USB-C & USB-A Hybrid Dock w/ 100W PD - Dual 4K 60Hz HDMI / DP
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 macOS 10.11 - 10.12, 10.14 Chrome OS™ v55+
Special Notes / Requirements
Note	4K resolution is supported on all 4 video ports. A 4K-capable DisplayPort or HDMI display is required to achieve 4Kx2K resolutions
	5K resolution is supported by connecting the two DisplayPort video ports to a single 5K display. A 5K-capable display is required to achieve 5K (5120 x 2880 60Hz) resolutions
	If connected to a USB 2.0 host port, or if using a USB 2.0 host connection cable, performance may be limited (USB 3.0 host cable included)
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery.
	The dock connects to the USB Type-C port or the USB Type-A port on your laptop.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps
System and Cable Requirements	USB-C enabled computer with an available USB Type-C port, or a USB-3.0 enabled computer with an available USB Type-A port
What's in the Box
Included in Package	Docking Station
	Quick-Start Guide
	Universal Power Adapter (NA/JP, ANZ)
	USB-C Cable (with Attached USB-C to USB-A Adapter)

"

Dual 4K60Hz UHD; DisplayPort or HDMI monitors
supports dual extended displays on MacBooks w/ Intel or Apple M1 chip
MAC address changer and DisplayLink Utility
Universal docking station w/ 100W Power Delivery for laptops like Lenovo X1 Extreme Dell Latitude XPS 15 HP Spectre MacBook Pro 16
USB-C and USB-A Hybrid dock for USB-C/USB-A/TB3 laptops w/ 2-in-1 USB host cable
USB-IF/VESA/DisplayLink certified
Windows/macOS/Chrome OS -1 USB-C/3 USB-A ports/GbE/audio/k-slot/mount options
