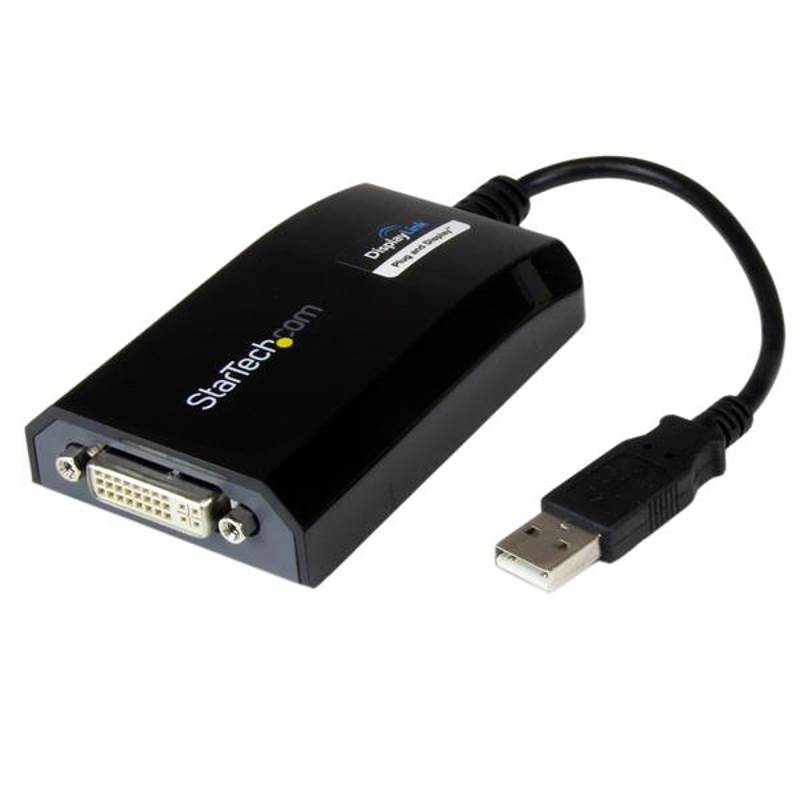

The USB2DVIPRO2 USB to DVI Adapter functions as an external graphics card for Windows® and Mac® computers - the perfect solution for turning your desktop or laptop computer into a dual or multi-monitor environment, all through the simplicity and convenience of USB.

The USB-DVI Adapter delivers high quality video (up to 1920x1200) for a variety of applications and is capable of simultaneously running up to five additional displays from a single computer (using four USB2DVIPRO2 External Video Adapters). The adapter connects to a host computer through a USB 2.0 port, acting as an external DVI video card to either extend or mirror the desktop shown on the existing display - without having to open the computer case.

Featuring driver support for Microsoft Windows® (including Aero themes) and Mac OS X, and with video support for resolutions up to 1920x1200, this USB-DVI video adapter is the ideal solution for a wide rade of operating environments as well as large-screen displays/monitors.

The USB2DVIPRO2 USB to DVI Adapter is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Performance
General Specifications	This USB video adapter uses a DisplayLink family chipset. If you’re connecting this device to a computer along with additional USB video adapters or docking stations, please avoid using devices with a Trigger or Fresco family chipset.
Maximum Digital Resolutions	1920x1200 (32-bit color)
MTBF	621,445 Hours
Supported Resolutions	Widescreen (16/32 bit): 1920x1200, 1680x1050, 1440x900, 1366x768 Standard (16/32 bit): 1600x1200, 1280x1024, 1024x768, 800x600, 640x480
Physical Characteristics
Cable Length	165 mm [6.5 in]
Color	Black
Product Height	20 mm [0.8 in]
Product Length	270 mm [10.6 in]
Product Weight	72 g [2.5 oz]
Product Width	55 mm [2.2 in]
Power
Power Source	USB-Powered
Software
OS Compatibility	Windows® 2000, XP, Vista, 7, 8, 8.1, 10 MacOS® 10.6 to 10.13.3 Chrome OS v51 Ubuntu 14.04, 16.04
Special Notes / Requirements
Note	Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions.
	Power PC-based Macintosh computers, such as late-model iMacs, PowerBooks and PowerMacs, are not currently supported
System and Cable Requirements	1.2Ghz or higher CPU 30MB of hard drive space 512 MB RAM USB 2.0 Port
	Not intended for gaming
What's in the Box
Included in Package	Driver CD
	DVI to VGA adapter
	Instruction Manual
	USB to DVI Adapter
Packaging Information
Shipping (Package) Weight	254 g [9 oz]
Indicators
LED Indicators	Blue - Power
Hardware
USB Pass-Through	No
Memory	16MB
Chipset ID	DisplayLink - DL-195
AV Output	DVI
AV Input	USB 2.0
Environmental
Storage Temperature	-10°C to 80°C (14°F to 176°F)
Operating Temperature	10°C to 40°C (50°F to 104°F)
Humidity	<85% non-condensing
Connector(s)

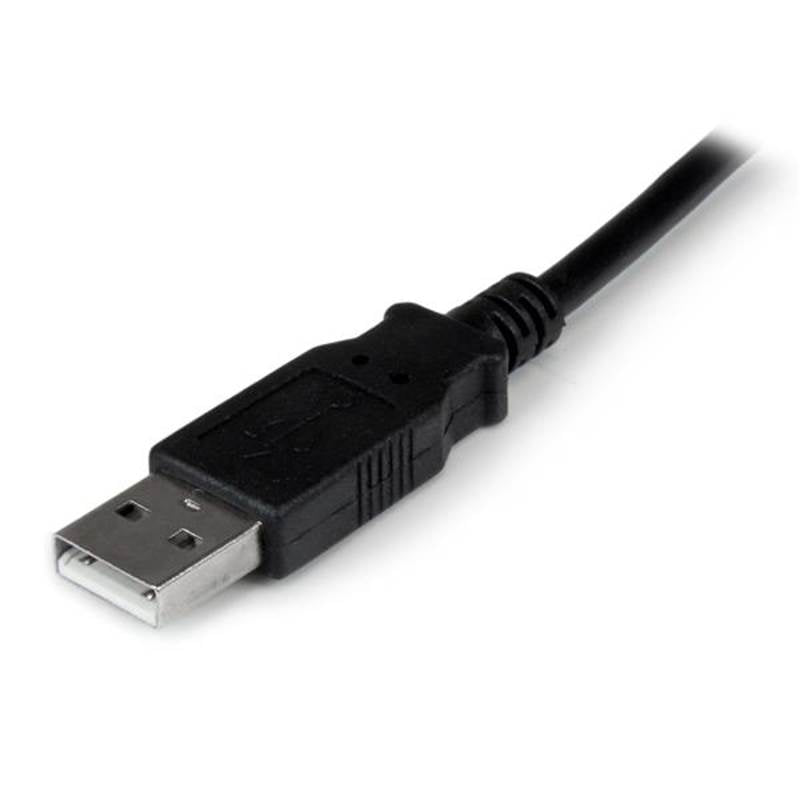

Connector Type(s)	USB Type-A (4 pin) USB 2.0 Male

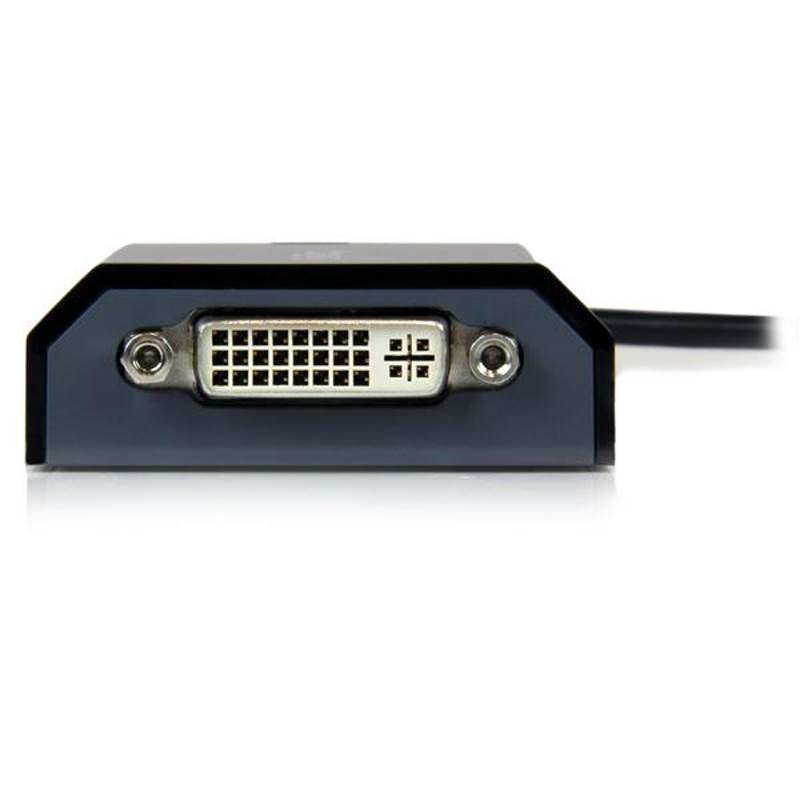

	DVI-I (29 pin) Female

1080p Video Playback
Compatible with Mac OSX & Windows 7 / 8 USB equipped desktop & laptop computers and HDMI equipped televisions and projectors
Connect an additional HDMI display to your MacHDMI or PC with USB 3.0 technology capable of video playback at 1080p
Dual or Triple monitor for home office or BOYD (Bring your own Device) work stations
USB Video / Multi Monitor Adapter / USB Video Card / USB 3.0 HDMI Video Card
