StarTech USB Sound Card Audio Adapter w/ SPDIF
Description
StarTech USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
96 KHz / 24-bit Sample Rate
Approx 91dB SNR (A-weighting)
16-100ohm Headphone Drive Ability
1x 3.5 mm Mini-Jack (3 Position) Female, 1x 3.5 mm Mini-Jack (4 Position) Female, 1x 3.5mm Mini-Toslink (SPDIF; Optical) Female, 1x USB A (4 pin) Male
96 KHz / 24-bit Sample Rate
Approx 91dB SNR (A-weighting)
16-100ohm Headphone Drive Ability
1x 3.5 mm Mini-Jack (3 Position) Female, 1x 3.5 mm Mini-Jack (4 Position) Female, 1x 3.5mm Mini-Toslink (SPDIF; Optical) Female, 1x USB A (4 pin) Male
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
Description
StarTech USB Stereo Audio Adapter External Sound Card with SPDIF Digital Audio
96 KHz / 24-bit Sample Rate
Approx 91dB SNR (A-weighting)
16-100ohm Headphone Drive Ability
1x 3.5 mm Mini-Jack (3 Position) Female, 1x 3.5 mm Mini-Jack (4 Position) Female, 1x 3.5mm Mini-Toslink (SPDIF; Optical) Female, 1x USB A (4 pin) Male
View Full Details
96 KHz / 24-bit Sample Rate
Approx 91dB SNR (A-weighting)
16-100ohm Headphone Drive Ability
1x 3.5 mm Mini-Jack (3 Position) Female, 1x 3.5 mm Mini-Jack (4 Position) Female, 1x 3.5mm Mini-Toslink (SPDIF; Optical) Female, 1x USB A (4 pin) Male
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

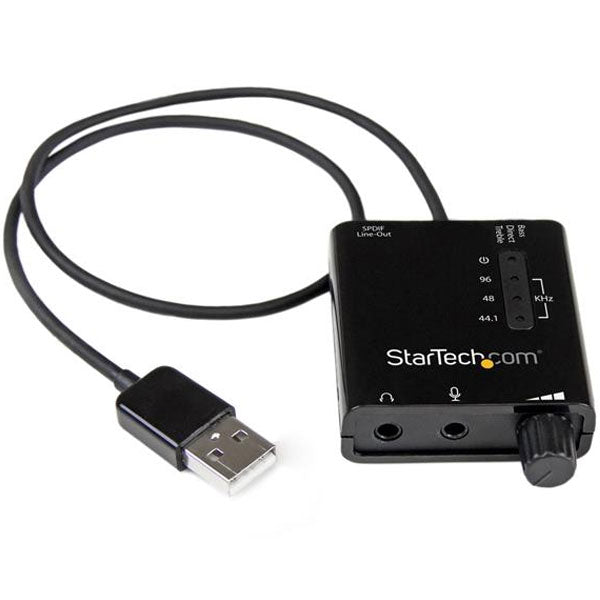

The ICUSBAUDIO2D External USB Sound Card lets you add an S/PDIF digital audio output and standard 3.5mm analog audio/microphone connections to your system through USB - a convenient way to bypass or replace an internal sound card without having to open the computer case.
For home-theater quality sound, the USB DAC (digital-to-analog converter) offers 96KHz / 24-bit sampling rates for both playback and recording, and a 3.5mm S/PDIF port with support for Dolby® Digital 5.1 surround sound (AC3) and DTS® pass-through (Note: 5.1 surround sound is supported in Windows® only).

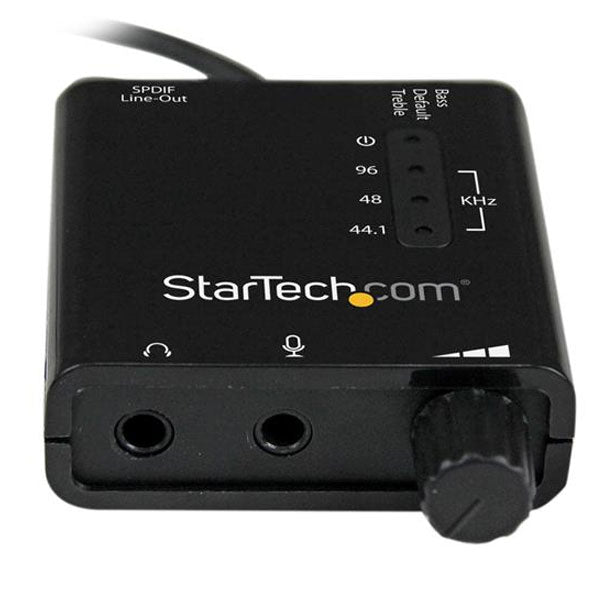

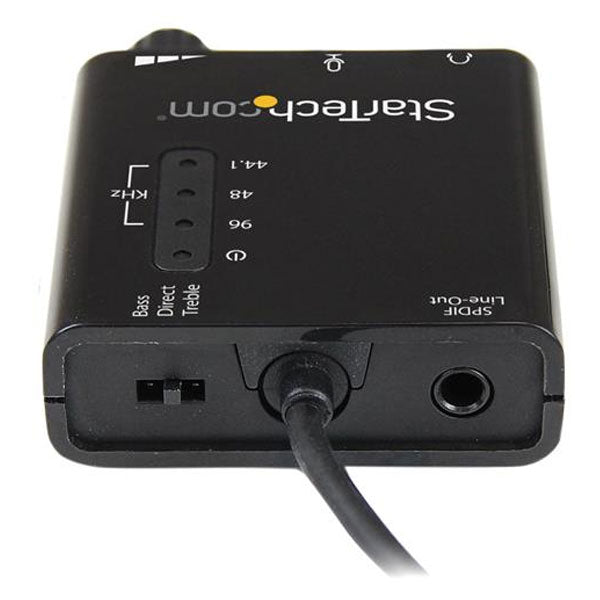

This versatile USB audio adapter features an integrated 3.5mm 4-position TRRS connection for your headphones or combination headset/microphone. Also a convenient external volume control for quick adjustments, a hardware EQ switch for Bass or Treble boosting, and an LED status bar to display the current sampling rate.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Performance | |
| Audio Specifications | 96 KHz / 24-bit Sample Rate Approx 91dB SNR (A-weighting) 16-100ohm Headphone Drive Ability |
| Physical Characteristics | |
| Cable Length | 406.5 mm [16 in] |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 16 mm [0.6 in] |
| Product Length | 47 mm [1.9 in] |
| Product Weight | 40 g [1.4 oz] |
| Product Width | 46 mm [1.8 in] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X® 10.6 to 10.8 |
| Special Notes / Requirements | |
| Note | 5.1 surround sound output is supported in Windows only |
| System and Cable Requirements | Available USB Port |
| What's in the Box | |

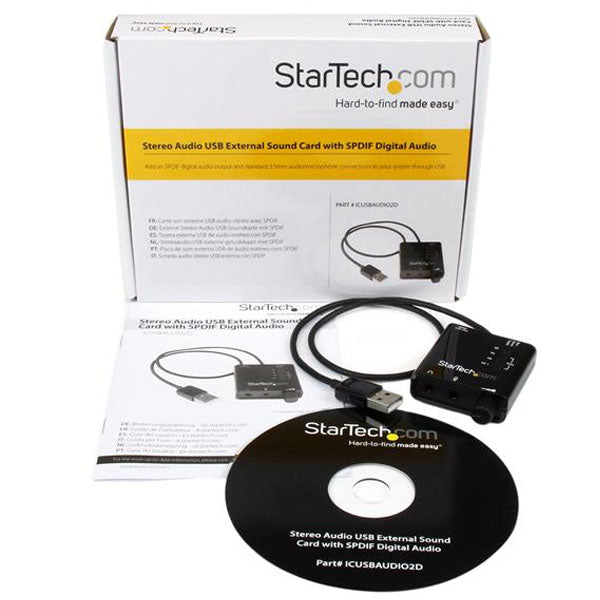

| Included in Package | Instruction Manual |
| Software CD | |
| USB Stereo Audio Adapter | |
| Packaging Information | |
| Shipping (Package) Weight | 119 g [4.2 oz] |
| Indicators | |
| LED Indicators | Power |
| Playback / Recording sample rate | |
| Hardware | |
| Chipset ID | VIA/VLI - VT1630A |
| Bus Type | USB 2.0 |
| Environmental | |
| Storage Temperature | 0°C to 70°C (32°F to 158°F) |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Humidity | 10~90% RH (Non-Condensing) |
| Connector(s) | |

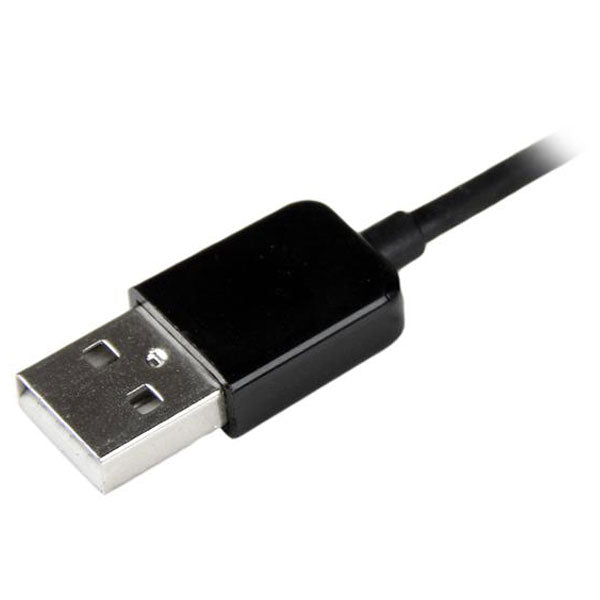

| Connector Type(s) | USB Type-A (4 pin) USB 2.0 Male |
| 3.5mm Mini-Toslink (SPDIF, Optical) Female | |
| 3.5 mm Mini-Jack (4 Position) Female | |
| 3.5 mm Mini-Jack (3 Position) Female | |
