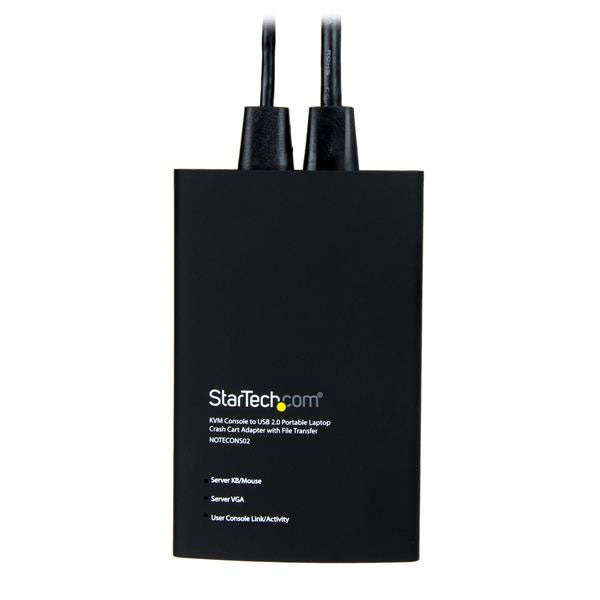

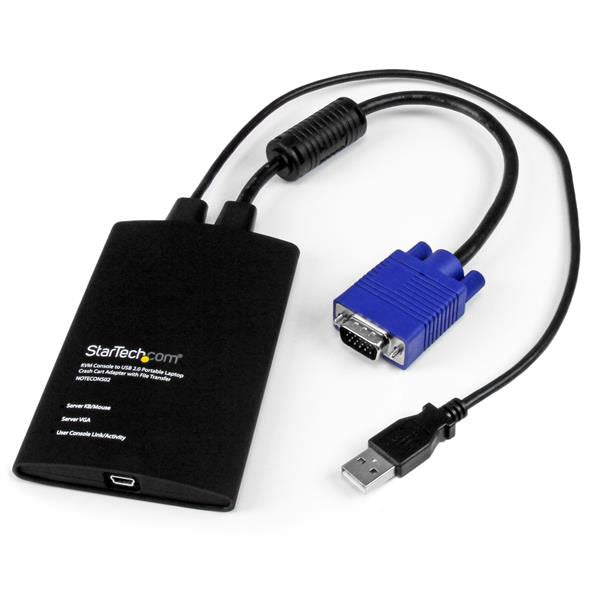

The NOTECONS02 Portable USB Crash Cart Adapter lets you turn your laptop into a portable console for rack servers, PCs, ATMs, kiosks and more, now with local file transfer and video capture built into the software. Simply connect the crash cart adapter to your laptop using the included USB cable, then connect the integrated USB and VGA cables to your server for instant, BIOS-level control.

Connect Quickly

Get connected in seconds. The crash cart adapter offers integrated VGA and USB cables for the server-side connections and includes the USB cable to connect to your laptop.

Troubleshoot your devices faster with a flexible software interface that lets you transfer files from your laptop to the server, capture videos for records or instructional purposes, take screenshots and scale the display window to full screen mode or smaller, with no scroll bars - ever.

Connect Universally

With no server-side software installation required, the USB crash cart adapter can connect to any PC or device that has a VGA and USB port, to provide BIOS-level control.

Powered from the server-side USB connection, the laptop crash cart adapter doesn't require an AC outlet and saves your laptop / netbook battery power.

Connect Portably

With portability for the mobile administrator or repair technician in mind, this pocket-sized adapter features a rugged design that easily fits inside your laptop bag and requires no additional accessories to connect.

Eliminating the need to lug around a large, awkward traditional crash cart to troubleshoot and service your systems, this portable crash cart lets you connect to a headless device with only a laptop.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Hardware
PC Video Type	VGA
Rack-Mountable	No
Indicators
LED Indicators	Host/Server Keyboard/Mouse USB Link
	Host/Server Video (VGA) Link
	User Console/USB Link
Packaging Information
Shipping (Package) Weight	363 g [12.8 oz]
Performance
Hot-Key Selection	No
IP Control	No
Maximum Analog Resolutions	1920x1200 @ 60Hz
Maximum Number of Users	1
MTBF	909000
Hardware
PC Interface	USB
Number of Monitors Supported	1
KVM Ports	1
Daisy-Chain	No
Cables Included	Yes
Audio	No
Environmental
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	80% RH
Connector(s)

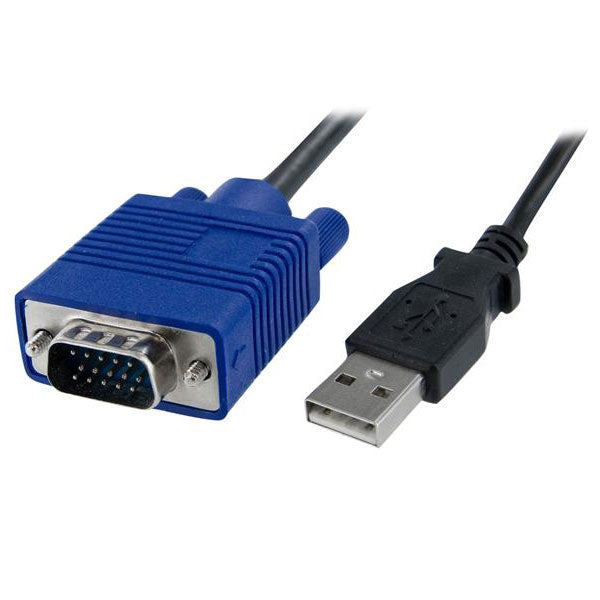

Host Connectors	VGA (15 pin, High Density D-Sub) Male
	USB Type-A (4 pin) USB 2.0 Male

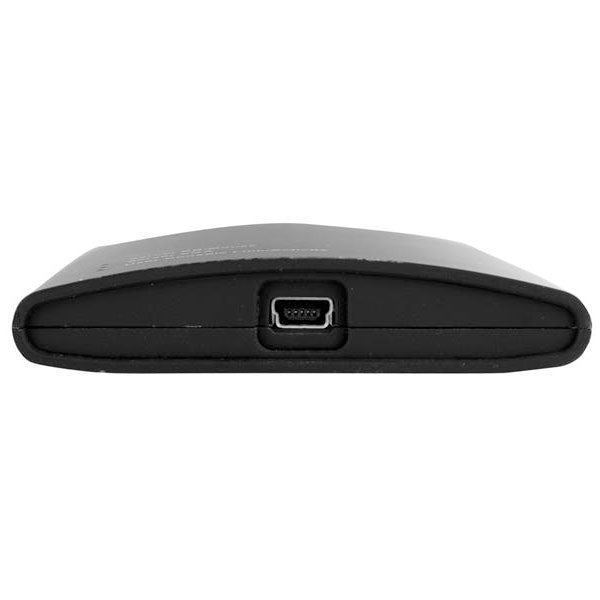

Console Interface(s)	USB Mini-B (5 pin) Female Input
Performance
On-Screen Display	No

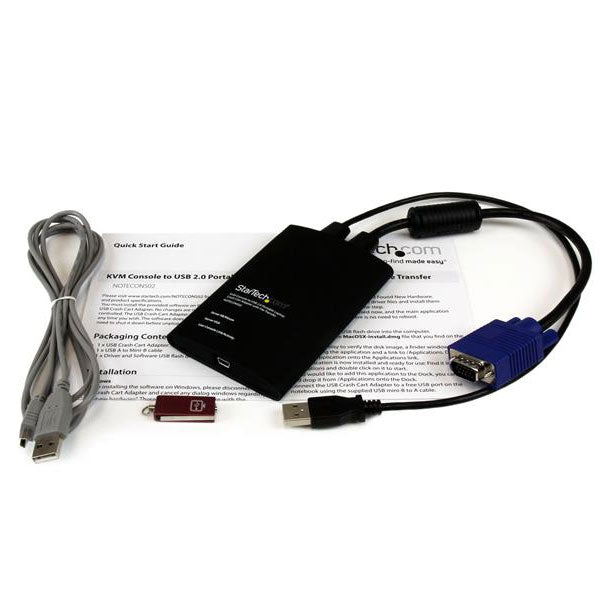

What's in the Box
Included in Package	USB Crash Cart Adpater
	USB Software Key
Physical Characteristics
Cable Length	1 x 15in (385mm) USB host cable, 1 x 3in (76mm) VGA host cable, 1 x 6ft (1.8m) USB Console cable
	416 mm [16.4 in]
Color	Black
Enclosure Type	Plastic
Product Depth	115 mm [4.5 in]
Product Height	15 mm [0.6 in]
Product Weight	170 g [6 oz]
Product Width	74 mm [2.9 in]
Power
Power Source	USB-Powered
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.9 to 10.13 Linux 2.6 to 4.11 LTS versions only
Special Notes / Requirements
Note	If you're interfacing with a Linux device, this adapter is only compatible with standard QWERTY keyboards in U.S English configuration
What's in the Box
Included in Package	USB A to Mini-B Cable

Auto centering for 4x3 images on a wide screen display
Auto video scaling when re-sizing the view pane
Compact portable KVM crash cart adapter with integrated KVM cables
File & video sharing from laptop to connected server
KVM adapter works with legacy and industrial devices
Laptop crash cart adapter provides instant BIOS-Level
no scroll bars
Screenshot & video capture at resolutions up to 1920x1200 60 Hz
Self-powered USB connection
Turns your laptop into an instant crash cart
