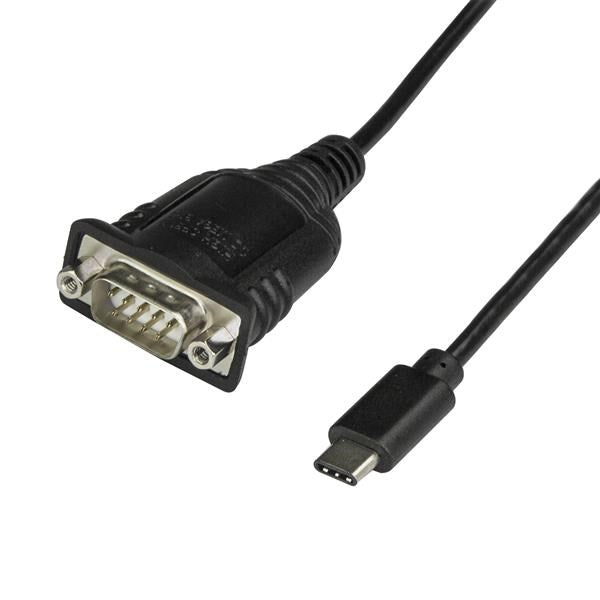

StarTech USB C to Serial Adapter Cable 40cm - COM Retention - RS232 DB9
StarTech USB C to Serial Adapter Cable 40cm - COM Retention - RS232 DB9
Description
• Portable 40cm USB-C to serial adapter converter cable RS232 DB9 TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 | Stop bits 1/1.5/2 | Parity Modes: None/Xon/Xoff/RTS/CTS/DTR/DSR | Flow control opts available
• COM port retention re-assigns saved COM values each time adapter is reconnected
• Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers
• Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male
• COM port retention re-assigns saved COM values each time adapter is reconnected
• Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers
• Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male
$50.95
Sale price
$50.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$50.95
Sale price
$50.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
• Portable 40cm USB-C to serial adapter converter cable RS232 DB9 TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 | Stop bits 1/1.5/2 | Parity Modes: None/Xon/Xoff/RTS/CTS/DTR/DSR | Flow control opts available
• COM port retention re-assigns saved COM values each time adapter is reconnected
• Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers
• Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male
View Full Details
• COM port retention re-assigns saved COM values each time adapter is reconnected
• Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers
• Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male
This USB-C™ to serial adapter lets you connect your USB-C devices to your legacy serial equipment. It converts a USB-C port on your laptop or computer into an RS232 DB9 serial port with COM port retention. This gives you a cost-saving and convenient way to connect to serial devices such as point-of-sale terminals, serial modems, industrial equipment, and a wide variety of other RS232 peripherals.
Connect with ease
The RS232 adapter cable is compatible with Windows®, macOS and Linux® operating systems, which makes it easy to integrate into mixed environments.
Built-in convenience
A time-saving and convenient USB/serial solution, the adapter retains assigned serial COM port values in nonvolatile memory, allowing the same values to automatically be re-assigned to the adapter serial port if disconnected and reconnected, or disconnected from one USB port and installed in another.
The USB-C serial cable also supports advanced features like remote wake-up and power management control.
The ICUSB232PROC is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | DB-9 (9 pin, D-Sub) Male |
| USB Type-C (24-pin) USB 2.0 (480Mbps) Male | |
| Environmental | |
| Humidity | 5~85% RH |
| Operating Temperature | -10°C to 80°C (14°F to 176°F) |
| Storage Temperature | -20°C to 100°C (-4°F to 212°F) |
| Hardware | |
| Bus Type | USB-C |
| Chipset ID | Prolific - PL2303RA |
| Industry Standards | USB 1.1/2.0 RS232 |
| Interface | Serial |
| Port Style | Cable Adapters |
| Ports | 1 |
| Packaging Information | |
| Package Height | 0.1 mm [0 in] |
| Package Length | 20 cm [7.9 in] |
| Package Width | 22 cm [8.7 in] |
| Shipping (Package) Weight | 54 g [1.9 oz] |
| Performance | |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 512 Bytes |
| Flow Control | None, Xon/Xoff, RTS/CTS, DTR/DSR |
| Max Baud Rate | 921.6 Kbps |
| MTBF | 30,000 Hours |
| Parity | Odd, Even, Mark, Space, or None Parity Modes |
| Serial Protocol | RS-232 |
| Stop Bits | 1, 1.5, 2 |
| Physical Characteristics | |
| Cable Length | 0.4 m [1.4 ft] |
| Color | Black |
| Product Height | 2 cm [0.8 in] |
| Product Length | 42.8 cm [16.9 in] |
| Product Width | 35 mm [1.4 in] |
| Weight of Product | 36 g [1.3 oz] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | Windows® 7, 8.1, 10 Windows Server® 2008 R2, 2012 R2, 2016 Mac OS X® 10.11 and 10.14 Linux 2.6.x to 4.4.x LTS Versions only |
| Special Notes / Requirements | |
| System and Cable Requirements | One available USB-C port |
| What's in the Box | |
| Included in Package | quick-start guide |
| serial adapter cable | |
COM port retention re-assigns saved COM values each time adapter is reconnected
Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers
Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male
Portable 40cm USB-C to serial adapter converter cable RS232 DB9
TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 | Stop bits 1/1.5/2 | Parity Modes: None/Xon/Xoff/RTS/CTS/DTR/DSR | Flow control opts available
Control RS-232 equipment over USB Type-C laptop like PLC/sensors/oscilloscopes/receipt printers
Driverless setup | Windows 7 and up / macOS 10.11 and up / Linux 2.6 and up | Male/Male
Portable 40cm USB-C to serial adapter converter cable RS232 DB9
TECH SPECS: 921.6 Kbps baud | 512 byte FIFO | Data bits of 5/6/7/8 | Stop bits 1/1.5/2 | Parity Modes: None/Xon/Xoff/RTS/CTS/DTR/DSR | Flow control opts available
