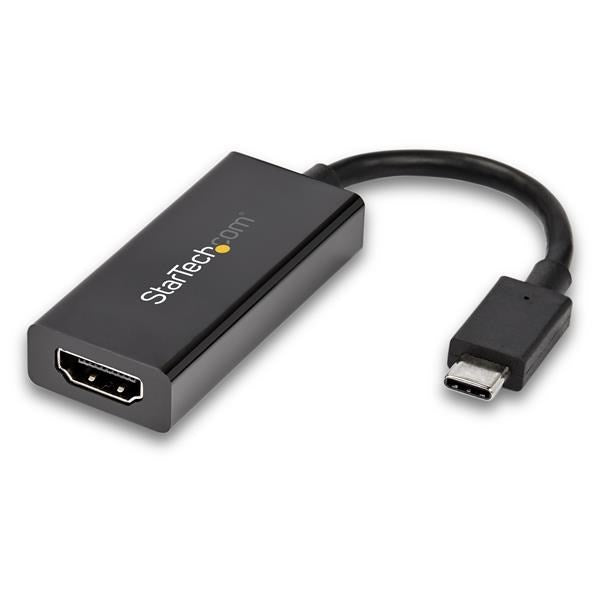

This USB-C to HDMI adapter lets you connect your USB Type-C laptop to an HDMI display. The adapter supports High Dynamic Range (HDR) and provides sharper images with enhanced video. With brighter colors and greater contrast, the adapter is ideal for:

• Creating eye-catching visuals for photography, videography, cinematography

• Displaying crisp digital signage walls

• Delivering enriched presentations True 4K at 60Hz and HDR

The USB-C video adapter is fully compatible with your HDMI 2.0b equipment, supporting resolutions up to 4K 60Hz (3840 X 2160) and bandwidths up to 18Gbps. The adapter offers 4:4:4 chroma subsampling, so every pixel gets its own unique color. It's also backward compatible with earlier versions of HDMI and DisplayPort at their supported maximum resolutions. With HDR support, you can enjoy lifelike images with increased contrast, brightness and colors and greater luminosity than standard digital imaging. Ideal for Travel This lightweight 4K adapter is highly portable, with a small-footprint design. It's the perfect accessory for your USB-C laptop or MacBook, fitting easily into your carrying case. Hassle-Free Setup To ensure easy operation and installation, this unique USB-C to HDMI adapter includes a reversible USB-C connector so you will always plug it into your laptop correctly on the first try. CDP2HD4K60H is backed by a 3-year StarTech.com warranty and free lifetime technical support. Notes:

• To achieve HDR, your USB-C port must support DisplayPort 1.4 and your display must support HDMI 2.0b.
• NVIDIA graphics adapters may not support 4:4:4 chroma subsampling and 5.1/7.1 audio output, when used with this adapter.

Connector(s)
Connector A	USB-C (24 pin) DisplayPort Alt Mode Male Input
Connector B	HDMI (19 pin) Female Output
Environmental
Humidity	25%-60%RH
Operating Temperature	5°C ~ 35°C (41 F°~95 F°)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
Active or Passive Adapter	Active
AV Input	USB Type-C
AV Output	HDMI
Chipset ID	MegaChips - MCDP2900
Industry Standards	DisplayPort 1.4
	HDMI 2.0b
Packaging Information
Package Height	11 mm [0.4 in]
Package Length	22 cm [8.7 in]
Package Width	20 cm [7.9 in]
Shipping (Package) Weight	0 kg [0.1 lb]
Performance
Audio Specifications	7.1 surround sound
Maximum Digital Resolutions	4096 X 2160 @ 24Hz 3840 X 2160 @ 60H
Supported Resolutions	4096 X 2160 @ 24Hz 3840 X 2160 @ 60Hz Lower resolutions and refresh rates may also be supported
Video Revision	HDMI 2.0b
Wide Screen Supported	Yes
Physical Characteristics
Cable Length	67 mm [2.6 in]
Color	Black
Enclosure Type	Plastic
Product Height	1.1 cm [0.4 in]
Product Length	25 mm [1 in]
Product Width	15 cm [5.9 in]
Weight of Product	25 g [0.9 oz]
Prominence
Description CDW 75 - 1st Line	StarTech.com USB-C to HDMI Adapter - HDR 4K 60Hz - USB C to HDMI Converter
Special Notes / Requirements
Note	In order to achieve maximum performance of this product, both the source and destination devices must support the appropriate specifications
	Your USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to work with this adapter.
What's in the Box
Included in Package	USB-C to HDMI Adapter

EMI Shielding | Tested w/HDMI cables up to 23
HDR for high-contrast ratio w/HDMI 2.0b display/monitor/TV | USBC to HDMI converter for content creators
OS independent
USB C to HDMI 2.0b adapter w/ HDR10 supports 4K 60Hz UHD video (3840x2160) | HBR3 | 4:4:4 chroma subsampling | 7.1ch audio | HDCP 2.2
USB-C to HDMI adapter dongle works w/ USB Type-C and Thunderbolt 3 devices like Dell XPS Precision Latitude/Lenovo ThinkPad/Surface Pro 7/MacBook Pro/Air (Intel and M1)/iPad Pro/HP EliteBook
