Expand the connectivity of your USB-C™ equipped laptop, wherever you go. With this Taa compliant USB-C™ adapter, you can create a powerful workstation, providing support for an Ultra HD 4K monitor, a wired network connection, USB-A device and a USB-C device.

Ideal for mobile use, the USB-C multiport adapter is the perfect accessory for your Dell™ Precision, Dell XPS, MacBook or other USB Type-C™ laptop. Since it uses USB-C, the adapter is Thunderbolt™ 3 port compatible, to connect to your Thunderbolt 3 equipped laptop.

Create a powerful workstation

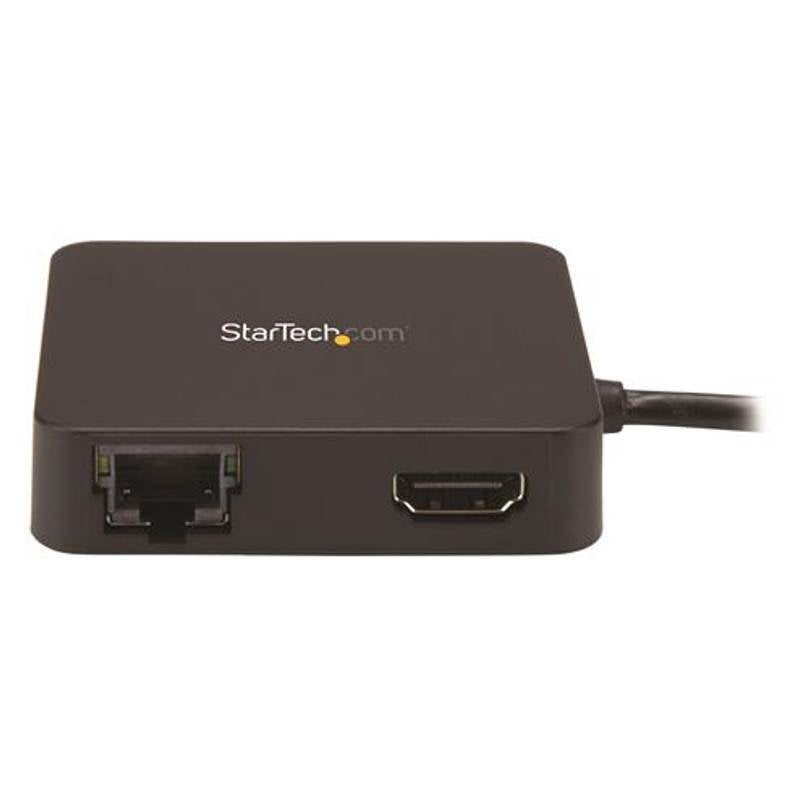

When coupled with your laptop, this USB-C adapter makes it easy to set up a dual-monitor workstation. It offers an HDMI® port that supports 4K Ultra HD 4096 x 2160p with audio to connect a high-resolution monitor, plus it supports 3840 x 2160p resolution. When traveling, you can use an HDMI port-equipped television in a hotel room as a second display. The travel adapter is also ideal for quick setups in conference rooms or boardrooms, to deliver engaging presentations.

Gain reliable network access

The USB-C multiport adapter ensures reliable wired network access with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi® access such as in classrooms, office buildings and hotels.

Connect your USB devices with ease

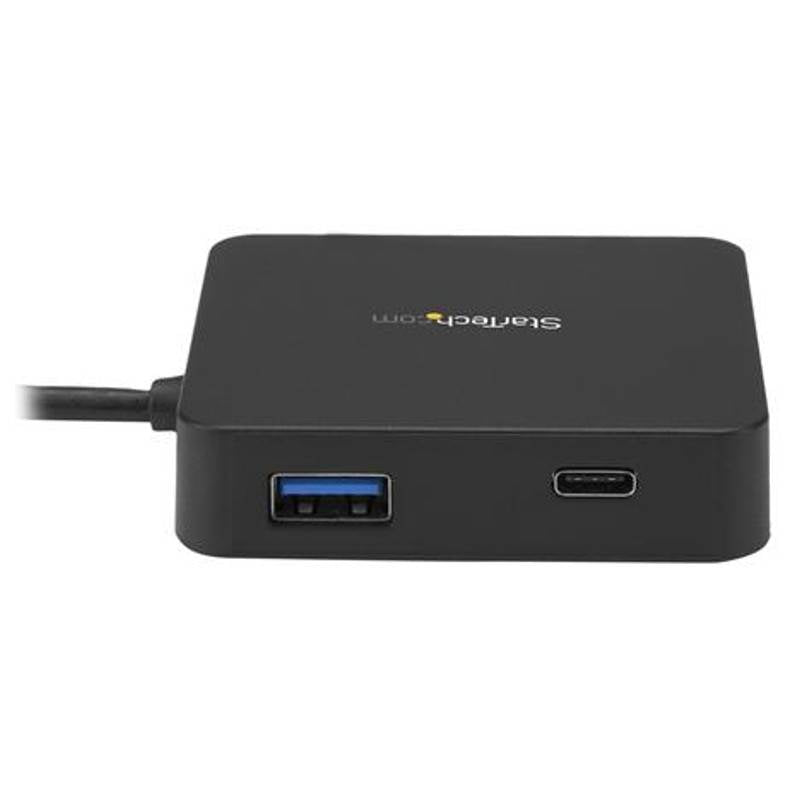

The multiport adapter provides a versatile way to connect USB devices to your port-limited laptop. Connect an existing device, like your mouse or a flash drive, to the USB Type-A port. With the USB-C port, you are future-ready to add a USB-C device.

Designed for easy portability

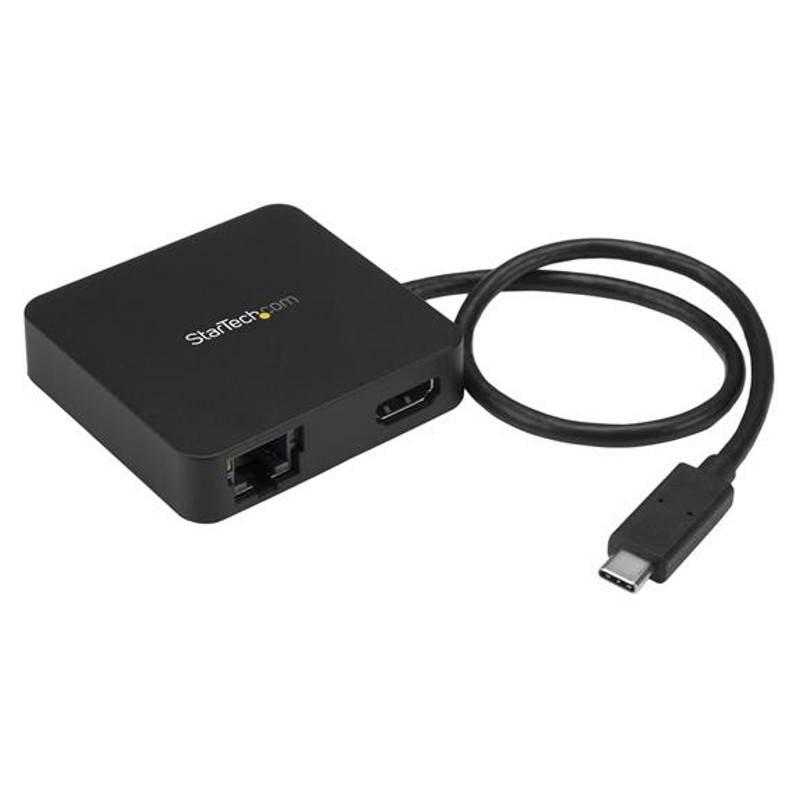

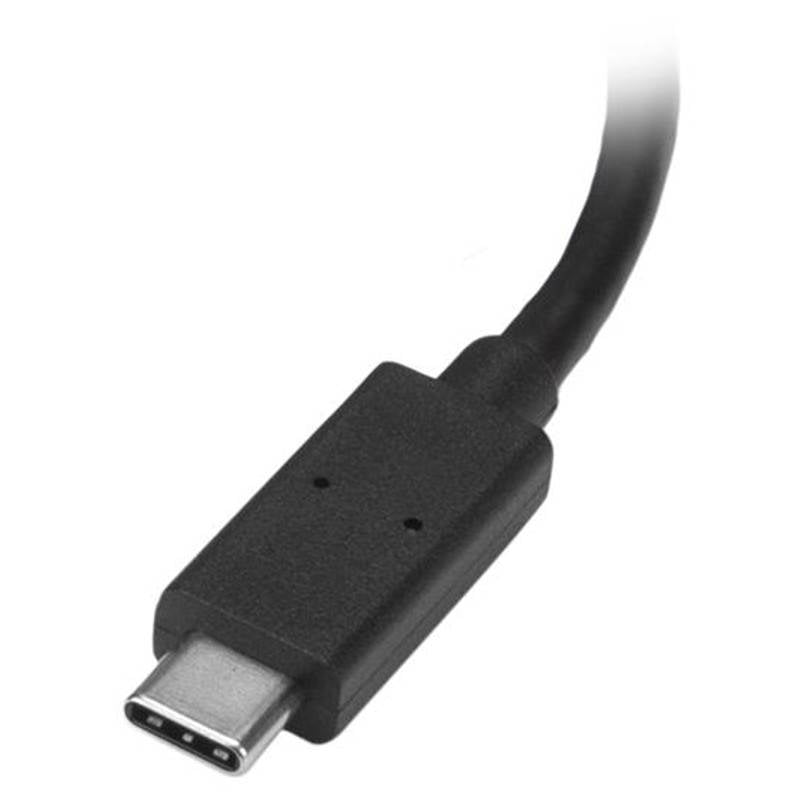

The bus-powered multiport adapter is portable and compact, tucking easily your laptop bag. Since it consolidates multiple ports into a single adapter, you don’t need to bring along multiple single-function adapters. The adapter also features a built-in USB-C cable, which means one less cable to carry. Installation is fast and simple, with native support in most operating systems.

The DKT30CHD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery.

Connector(s)
Connector Type(s)	HDMI (19 pin) Female
	RJ-45 Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Type-C (24 pin) USB 3.0 Female
	USB Type-C (24 pin) USB 3.0 Male
Environmental
Humidity	5~90% RH (Non-condensing)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
4K Support	Yes
Bus Type	USB-C
Chipset ID	Genesys Logic - GL3523 Realtek - RTL8153 Parade - PS176
Displays Supported	1
Fast-Charge Port(s)	No
Packaging Information
Shipping (Package) Weight	0.2 kg [0.4 lb]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	340 mm [13.4 in]
Color	Black
Enclosure Type	Plastic
Product Height	15 mm [0.6 in]
Product Length	65 mm [2.6 in]
Product Weight	52 g [1.8 oz]
Product Width	62 mm [2.4 in]
Power
Power Source	USB-Powered
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 Mac OS 10.10 to 10.13 Chrome OS™
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
	The USB Type-C connector (female) is data only.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode).

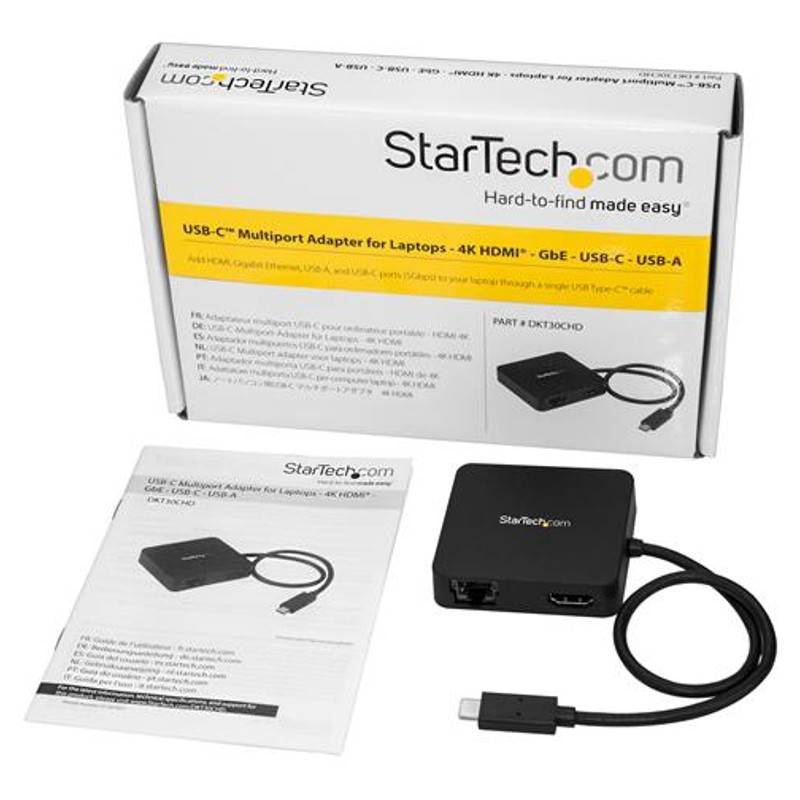

What's in the Box
Included in Package	quick-start guide
	USB-C multiport adapter

4-in-1 USB-C multiport adapter w/ 4K 30Hz HDMI video/Gigabit Ethernet/USB 3.0 Hub 5Gbps (1x USB-A 1x USB-C); USB bus-powered
Attached 34cm (13") cable provides extended reach to reduce connector strain on 2-in-1 devices or laptops on risers
Auto driver install
For USB Type-C and Thunderbolt 3 laptops Ultrabooks USB-C Chromebook tablets phones; works w/ HP Dell Lenovo MacBook Surface
USB-C travel dock w/ ultra compact & portable square design
Windows/macOS/Chrome OS/iPadOS/Android
