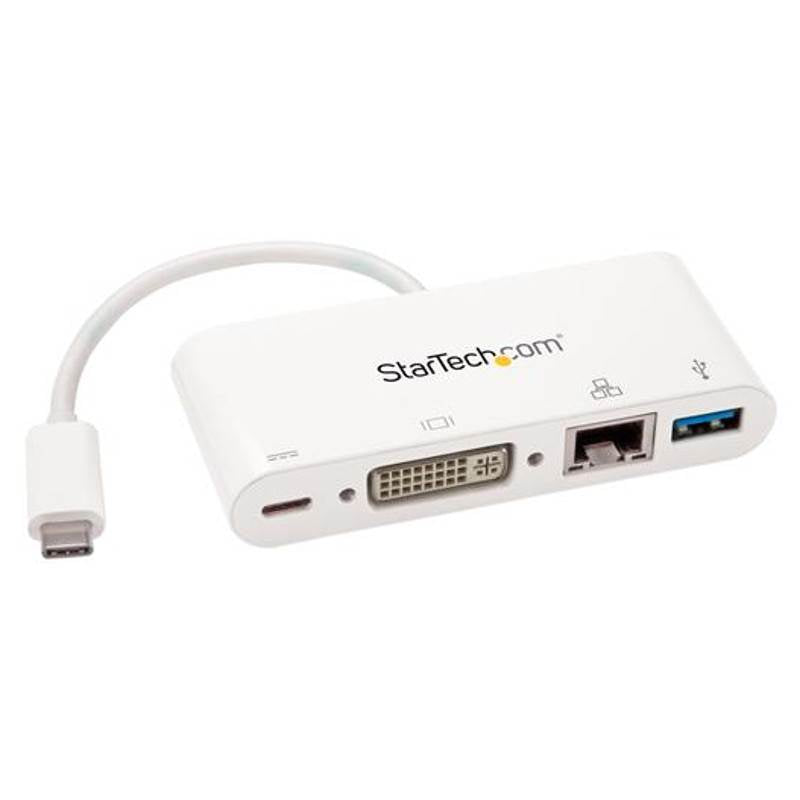

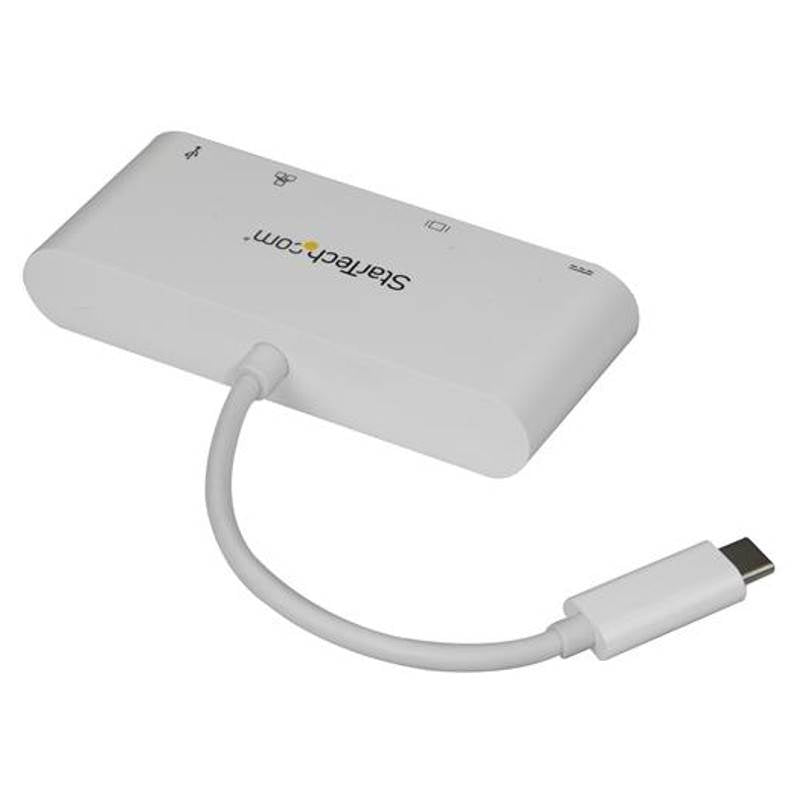

Expand the connectivity of your USB-C™ enabled laptop. This sleek USB-C multiport adapter lets you create a powerful workstation virtually anywhere, providing DVI video output, one USB 3.0 Type-A port, and a Gigabit Ethernet port.

You can also power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0. It’s the ideal accessory for your Dell XPS, MacBook Pro or other USB Type-C™ equipped laptop, and it’s also Thunderbolt™ 3 port compatible.

Create a powerful workstation

The multiport adapter expands the connectivity of your port-limited laptop, using the built-in USB-C cable to connect to multiple devices simultaneously. When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. Connect to a DVI display in an office workspace or your home office with ease.

The Gigabit Ethernet port ensures reliable wired network access, plus with an additional USB 3.0 Type-A port, you can connect an existing peripheral device, like your mouse or flash drive.

Get reliable network connectivity

The Gigabit Ethernet port ensures reliable wired network access, ideal for areas with limited Wi-Fi availability.

Designed for easy portability

This compact multiport adapter is USB-powered, so there’s no need to carry a separate power adapter with you. Ideal for mobile use from office to home, or for travel, the multiport adapter features a USB-C port that supports USB Power Delivery 2.0 so you can power and charge your laptop as you work. The adapter features a built-in USB-C cable and gives you network connectivity plus a USB Type-A connection for optimum versatility as you travel.

The DKT30CDVPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.

Connector(s)
Connector Type(s)	29 pin DVI-I (Dual Link) Female
	RJ-45 Female
	USB Type-A (9 pin) USB 3.0 Female

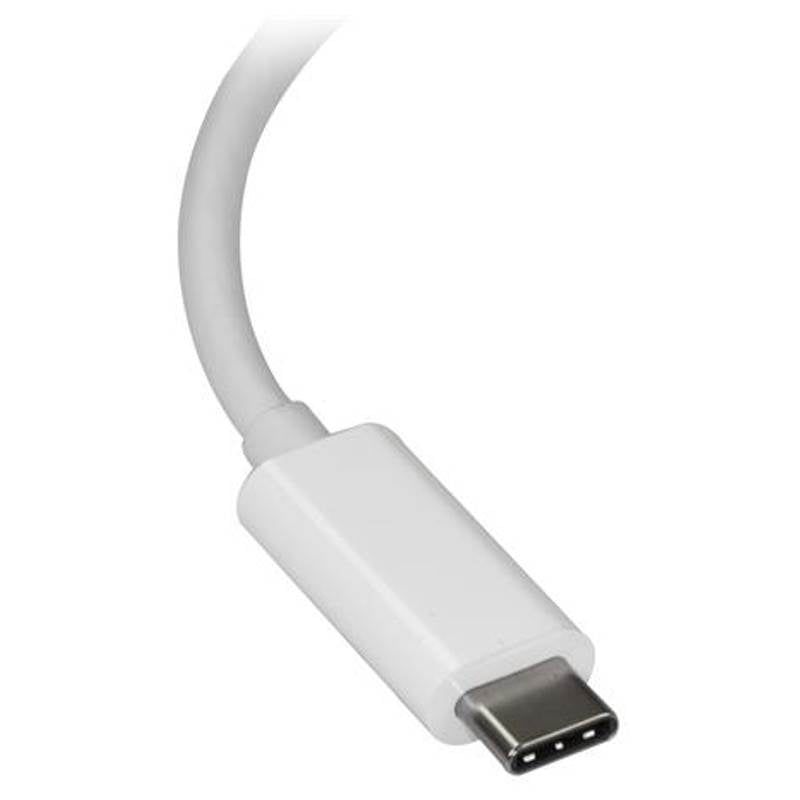

	USB Type-C (24 pin) USB 3.0 Male
	USB-C (24 pin) USB Power Delivery only Female
Environmental
Humidity	0~85% RH (Non-condensing)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Hardware
4K Support	Yes
Audio	Yes
Bus Type	USB-C
Chipset ID	VIA/VLI - VL813 VIA/VLI - VL100 Parade - PS171 Realtek - RTL8153
Displays Supported	1
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Shipping (Package) Weight	130 g [4.6 oz]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	1920 × 1200 - 60 Hz (DVI)
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Color	White
Product Height	17 mm [0.7 in]
Product Length	97 mm [3.8 in]
Product Weight	50 g [1.8 oz]
Product Width	41 mm [1.6 in]
Power
Power Delivery	60W
Power Source	USB-Powered
Software
OS Compatibility	Windows® 7, 8.1, 10 Mac OS® 10.11 to 10.13 Chrome OS™
Special Notes / Requirements
Note	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)
	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)

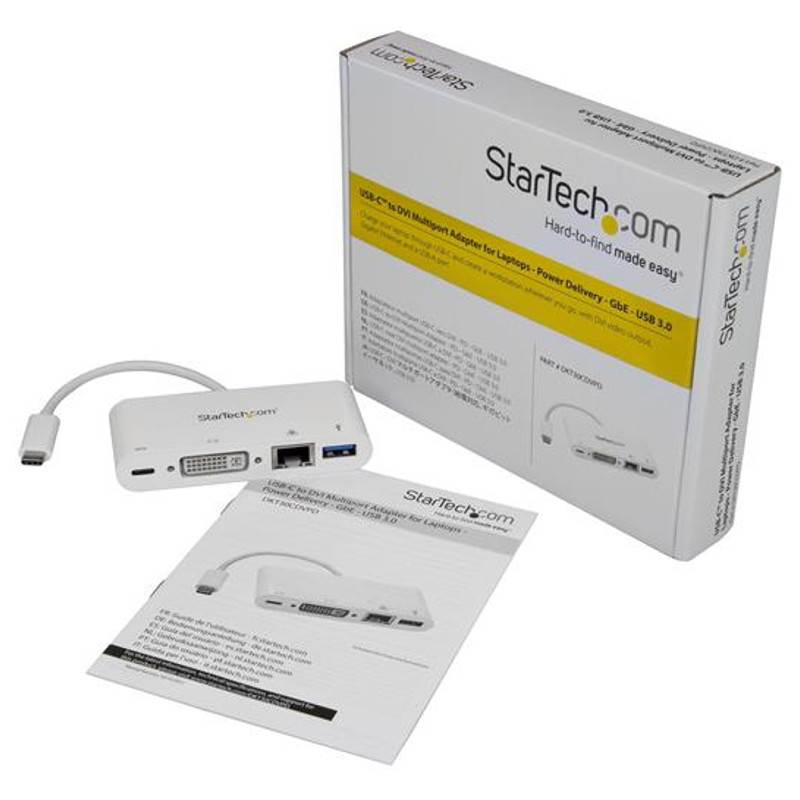

What's in the Box
Included in Package	instruction manual
	multiport adapter

4-in-1 USB-C multiport adapter with DVI-Digital video output 1920x1200 / 1080p (single link)/Gigabit Ethernet/1x 5Gbps USB-A 3.0 port | Works w/ Thunderbolt 3
OS Independent; auto driver setup
Portable laptop docking station can be USB bus powered or use your laptops USB-C power adapter for up to 60W Power Delivery pass through (7W for dock/53W for charging)
White USB Type-C multiport adapter/mini dock is compatible w/ MacBook Pro Air/Dell XPS/HP EliteBook/Lenovo X1 Carbon/Chromebooks
