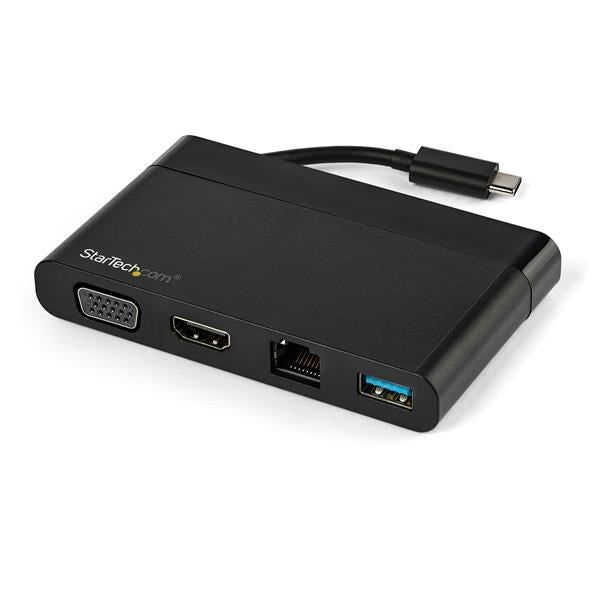

Ideal for mobile workers, this USB-C multiport adapter with HDMI and VGA gives you flexible video output. It’s like four adapters in one, with HDMI or VGA connections, a Gigabit Ethernet port and a USB 3.0 port, all through one connection to your laptop’s USB-C port. Plus, it features a hideaway cable for better cable management and easier travel.

With easy plug-and-play installation on most operating systems, the USB-C adapter doesn’t require additional drivers or software. It’s the perfect accessory for MacBook Pro, Dell XPS, Chromebook or other USB-C laptops. Connect a UHD 4K HDMI or VGA Monitor The USB Type-C multiport adapter keeps you prepared for business travel. You can extend your laptop’s display by connecting to a 4K HDMI (4096x2160 or 3840 x 2160p) or VGA (1920 x 1200p) monitor or projector, to make presentations or set up a workstation.

Convenient Cable Management

With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock, for easy connections on the go. Plus, the USB Type-C adapter is bus powered, so there’s no need to carry around a separate power adapter.

Enhance Productivity

Connect a flash drive, mouse or other peripheral to your USB-C or Thunderbolt 3 laptop using the USB 3.0 Type-A port. The USB-C adapter adds wired network connectivity with the GbE port, making it ideal in areas without Wi-Fi.

DKT30CHVCM is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Hardware
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Package Height	45 mm [1.8 in]
Package Length	15.5 cm [6.1 in]
Package Width	13.3 cm [5.2 in]
Shipping (Package) Weight	0.2 kg [0.4 lb]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Analog Resolutions	1920 x 1200p @ 60Hz (VGA)
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz (HDMI)
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	85 mm [3.3 in]
Color	Black
Enclosure Type	Plastic
Product Height	1.6 cm [0.6 in]
Product Length	10.5 cm [4.1 in]
Hardware
Displays Supported	1
Chipset ID	Genesys Logic - GL3523 Realtek - RTL8153 Eton Technology - EJ899T Parade Technologies - PS176 ITE -IT6516
Bus Type	USB-C
4K Support	Yes
Environmental
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	0~90% RH
Connector(s)
Connector Type(s)	VGA (15 pin, High Density D-Sub) Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Male
	USB Type-A (9 pin) USB 3.0 Female
	RJ-45 Female
	HDMI (19 pin) Female
Physical Characteristics
Product Width	65 mm [2.6 in]
Weight of Product	82 g [2.9 oz]
Power
Power Source	USB-Powered
Prominence
Description CDW 75 - 1st Line	StarTech.com USB-C Multiport Adapter - HDMI & VGA - Mac / Windows / Chrome
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 macOS 10.11 to 10.14 Chrome OS™
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.
	Only one video output port can be used at the same time (HDMI or VGA). If two displays are connected, the HDMI port takes priority.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode).
What's in the Box
Included in Package	Instruction Manual
	Multiport Adapter

4-in-1 USB-C travel dock for single monitor 4K 30Hz HDMI or 1080p VGA video display w/ USB-A 3.0 and Gigabit Ethernet
All-in-one USB Type-C mini hub for mobile work from home and on the go business applications
Driverless setup supports Windows macOS Chrome OS Android
Lightweight portable USB C multiport docking station attached hideaway cable management
USB C and Thunderbolt 3 compatible USB-C multiport adapter for HP Lenovo Dell MacBook Chromebook Laptops and Samsung Galaxy devices
