Here’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C™ laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.

Connect a UHD 4K HDMI Monitor?

Use the USB-C adapter as a?portable docking station, connecting your laptop to?a?4K?HDMI monitor?(4096 x 2160p)?to create a workstation or make presentations.?It also connects to?an ultrawide monitor.?

Connect?Your?Devices?

The?USB-C adapter?gives you one?USB-C port to connect a USB-C device, and one USB-A?port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.

Laptop Charging with PD 3.0

With support for?100W?Power Delivery?3.0,?the?USB?Type-C multiport adapter?provides up to 92W laptop charging, and powers your peripherals?when connected to a USB-C power adapter.?PD?3.0 features Fast Role Swap to prevent USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).?

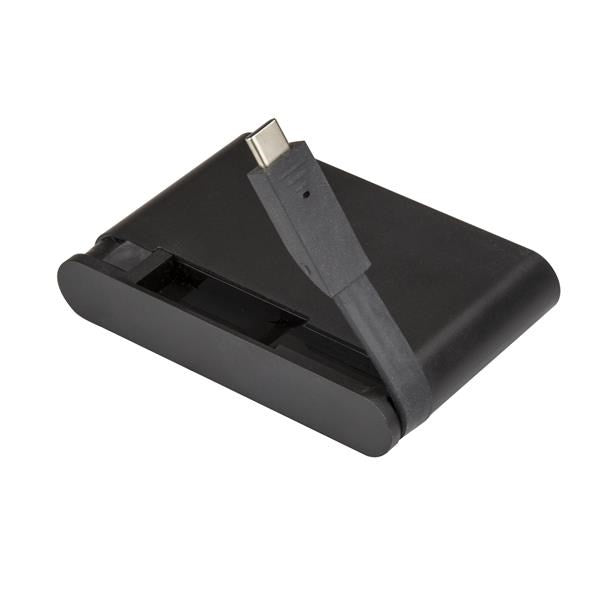

Wrap-Around Cable

The USB Type-C™ multiport adapter has a built-in wrap-around cable for easy connection and portability.

Reliable?Network?Connectivity?

The Gigabit Ethernet port ensures reliable wired network access.?

DKT30CHCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.?

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.?

Connector(s)
Connector Type(s)	HDMI (19 pin) Female
	RJ-45 Female
	USB 3.0 A (Fast-Charge, 9 pin) Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Male
Environmental
Humidity	10~90% RH (Non-condensing)
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Hardware
4K Support	Yes
Bus Type	USB-C
Chipset ID	VIA/VLI - VL102 VIA/VLI - VL817 Parade Technologies - PS176 RealTek - RTL8153
Displays Supported	1
Fast-Charge Port(s)	Yes
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Package Height	30 mm [1.2 in]
Package Length	17.3 cm [6.8 in]
Package Width	14.4 cm [5.7 in]
Shipping (Package) Weight	132 g [4.7 oz]
Performance
Auto MDIX	Yes
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz UltraWide - 3440 x 1440p @ 60 Hz or 2560x1080 at 60Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Product Height	1.4 cm [0.6 in]
Product Length	90 mm [3.5 in]
Product Width	60 mm [2.4 in]
Weight of Product	58 g [2 oz]
Power
Power Delivery	100W
Power Source	USB-Powered
Prominence
Description CDW 75 - 1st Line	StarTech.com USB C Multiport Adapter with HDMI - 4K - 1xA?1xC - 100W PD 3.0
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 Mac OS® 10.9 to 10.14 Chrome OS™
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
	Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 92W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
What's in the Box
Included in Package	instruction manual
	multiport adapter

Auto driver install Windows macOS Chrome OS Android
BC 1.2 1.5A for charging devices
Compact USB-C travel dock w/ cable wrap to prevent tangles (6" cable)
Portable USB-C mini dock w/ up to 100W PD 3.0 Passthrough (92W for laptop charging) using a USB-C laptop charger
Thunderbolt 3/USB Type-C laptops Ultrabooks chrome books tablets like MacBook HP Dell Lenovo
USB C multiport adapter to 4K 30Hz HDMI video/Gigabit Ethernet/USB-A (5Gbps/Fast Charge)/USB-C for data or Power Delivery
