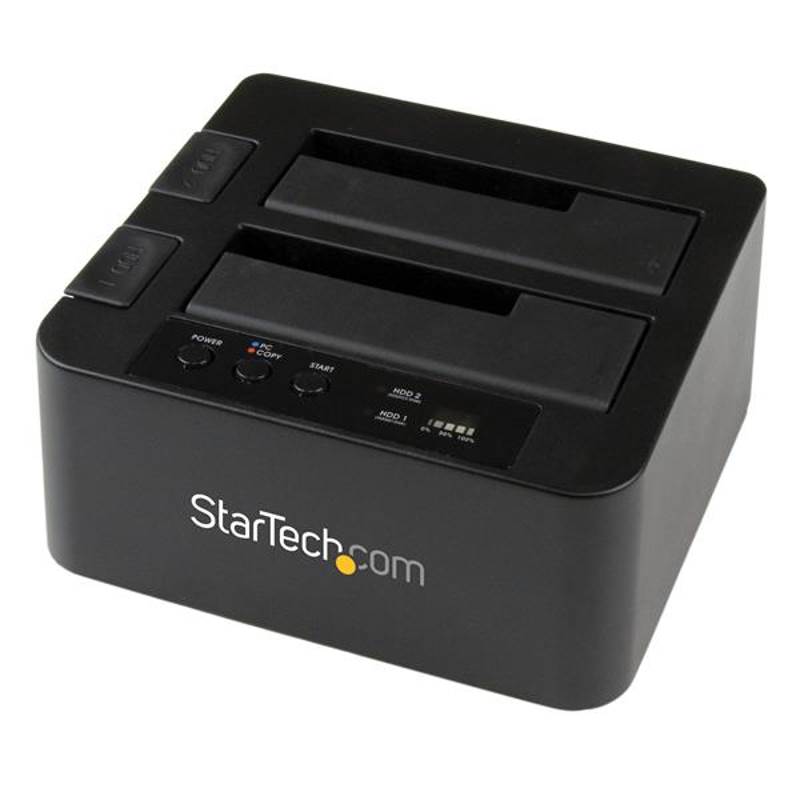

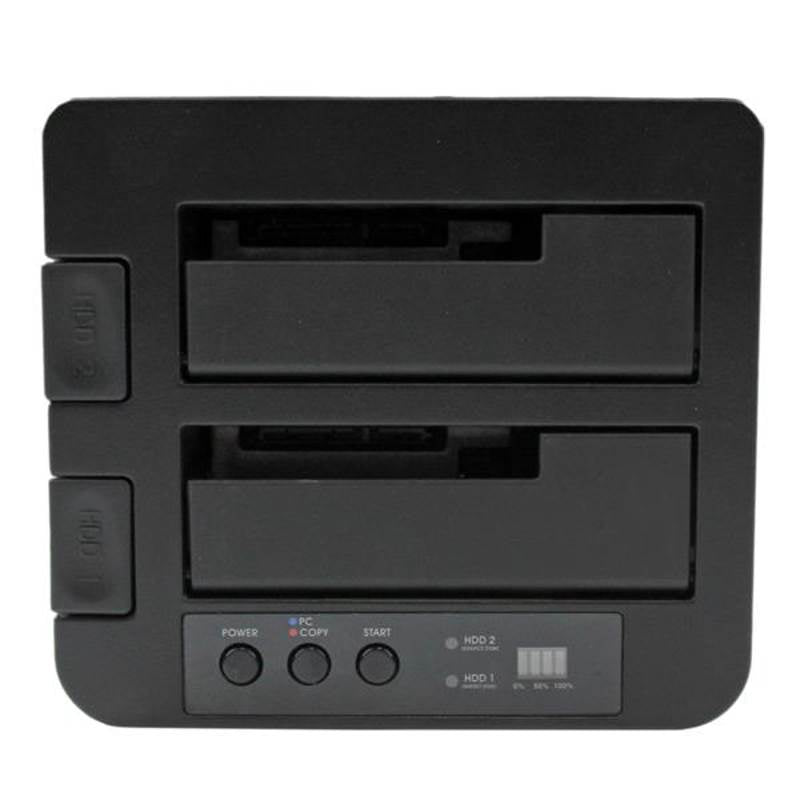

The SDOCK2U33RE Dual 2.5/3.5" SATA HDD/SSD duplicator dock lets you duplicate/clone an existing hard drive without the use of a host computer system -- or dock and swap drives from your desktop or laptop computer simultaneously, using a single USB or eSATA port.

Versatile Features

The SDOCK2U33RE offers convenient dual-function performance. As a hard drive duplicator, the SDOCK2U33RE lets you create an exact sector-by-sector clone from one hard drive to another, including partitions and boot sector information -- ensuring data integrity and consistency for sensitive operations, such as data recovery. As an external hard drive dock the SDOCK2U33RE lets you connect your drives through either eSATA or USB, with each drive slot individually supporting high capacity 2.5/3.5" hard drives or solid state drives, tested up to 4 TB.

Fast Performance

With support for SATA III (6 Gbps) you can maximize efficiency with duplication speeds up to 22 GB per minute, and eSATA docking speeds up to 6 Gbps. The Dock can also be connected through USB 3.0 with UASP for transfer speeds up 5 Gbps (70% faster than conventional USB 3.0). See our UASP testing results below for further details.

Hassle-free Operation

With push button operation and plug-and play installation, the duplicator dock has been specially designed for hassle-free operation. The SDOCK2U33RE lets you quickly dock your hard drives or start duplicating hard drives with the push of a button. Plus, the built-in LED progress bar saves you time by letting you easily monitor the entire duplication process, so you'll know exactly when it's time to start your next operation.

For added compatibility with different drive types in duplication and docking applications, the SDOCK2U33RE supports the use of various drive adapters. The below list of StarTech.com adapters have been specifically tested, to ensure compatibility with this drive duplicator:

2.5/3.5in IDE drives - SAT2IDEADP
mSATA drives - SAT2MSAT25
M.2 (NGFF) drives - SAT32M225

SDOCK2U33RE is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Improved Performance with UASP

UASP is supported in Windows 8, Mac OSX (10.8 or above), and Linux. In testing, UASP performs with a 70% faster read speed and 40% faster write speed over traditional USB 3.0 at peak performance.

At the same peak in testing UASP also shows an 80% reduction in required processor resources.

Testing results were obtained using an Intel® Ivy Bridge system, a UASP-enabled StarTech.com Enclosure, and a SATA III solid state drive.

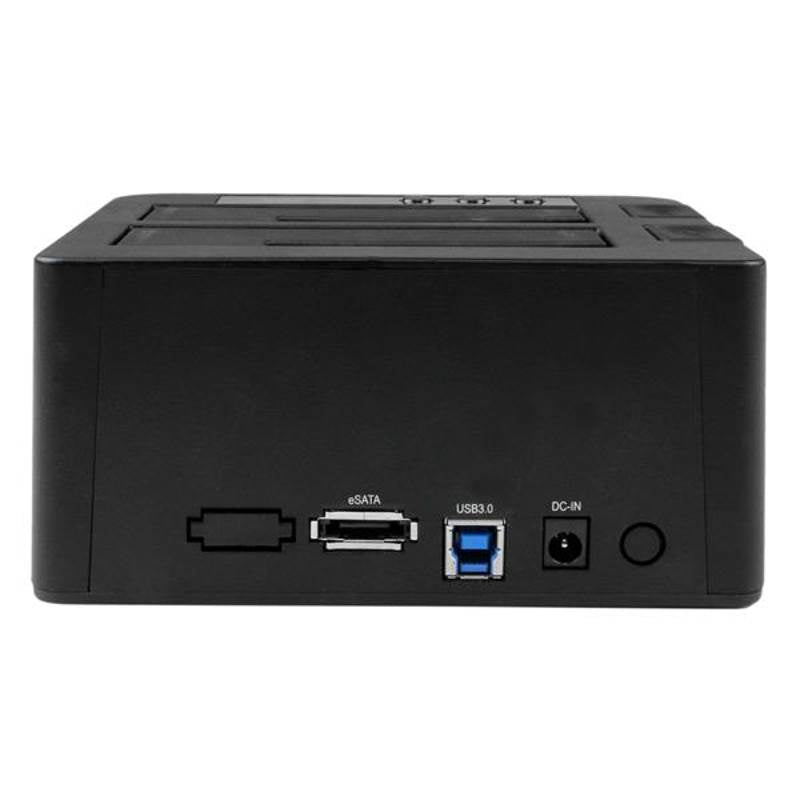

Connector(s)
Drive Connectors	SATA Data & Power Combo (7+15 pin) Receptacle
Host Connectors	eSATA (7 pin, Data) Female
	USB Type-B (9 pin) USB 3.0 Female
Environmental
Humidity	20%RH ~ 80%RH
Operating Temperature	5°C - 35°C (41°C to 95°C)
Storage Temperature	-20°C - 50°C (-4°C to 122°C)
Hardware
Chipset ID	JMicron - JMS562
Compatible Drive Types	SATA
Drive Installation	Removable
Drive Size	2.5in & 3.5in
Interface	USB 3.0 & eSATA
Number of Drives	2
Indicators
LED Indicators	Drive Status
	Mode Indicator
	Power Indicator
	Progress Indicator
Packaging Information
Shipping (Package) Weight	1020 g [36 oz]
Performance
Duplication Modes	Sector by Sector (Whole Drive)
Duplication Speed	22GBpm
Max Drive Capacity	Currently tested with up to 4TB 7200 RPM 3.5" hard drives per bay (8TB total) and 2TB 5900 RPM 2.5" hard drives (2TB total)
Maximum Data Transfer Rate	5Gbps
RAID	No
Type and Rate	SATA III (6 Gbps)
	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Color	Black
Product Height	70 mm [2.8 in]
Product Length	147 mm [5.8 in]
Product Weight	500 g [17.6 oz]
Product Width	132 mm [5.2 in]
Power
Input Current	1.3 A
Input Voltage	100 ~ 240 AC
Output Current	3000 mA
Output Voltage	12 DC
Power Consumption (In Watts)	36
Power Source	AC Adapter Included
Software
OS Compatibility	OS independent; No software or drivers required
What's in the Box
Included in Package	eSATA cable
	instruction manual
	SATA HDD duplicator dock
	universal power adapter (NA,UK,EU, ANZ)
	USB 3.0 cable

1:1 hard drive duplicator and docking station
2.5" and 3.5" HDD SSD
Dual bay
Dual drive up to 4 TB
eSATA / USB 3.0 Hard Drive Duplicator Dock Standalone HDD Cloner with SATA 6Gbps for fast-speed duplication
eSATA and USB 3.0 host interface connections
SATA III and UASP
SATA revision I/II/III
Standalone sector-by-sector hard drive duplication up to 22GB per minute
StarTech USB 3.0 eSATA HDD/SSD Duplicator Dock
USB 3.0/2.0/1.1 (5 Gbps / 480 Mbps / 1.5 Mbps)
