This USB 3.0 dual-monitor docking station lets you add the ports you need to your laptop, to maximize your workstation performance. The laptop dock provides a cost-effective universal docking solution, with support for HDMI® and DVI monitors and plenty of connection options for peripherals.

Enhance productivity with a dual-video workstation

The versatile laptop docking station enables you to improve your efficiency and productivity by expanding the display capabilities of your Windows laptop or MacBook. Set up dual displays by connecting to one HDMI and one DVI monitor. Plus, the dock includes a DVI to VGA adapter, so you can connect your legacy VGA monitor in place of a DVI monitor.

With the dual-monitor dock, you can connect:

• 1x HDMI display + 1x DVI display at 2048 x 1152 resolution @ 60Hz
• 1x HDMI display at 2048 x 1152 resolution + 1x VGA display at 1920 x 1200 resolution @ 60Hz

The USB 3.0 docking station offers a fast and easy way to maximize your laptop’s workable screen space, giving you three screens in total when coupled with your laptop’s display.

All the connections you need

This USB docking station lets you easily connect your keyboard, external drives and other peripherals, to transform your laptop into a powerful, fully capable workstation. The dock features a USB Type-B dock connection (host) for more robust port stability, unlike the Micro-B ports that are often used on other docking stations. From the single USB 3.0 host connection, the dock provides six USB 3.0 (Type-A) ports, a Gigabit Ethernet port, plus a 3.5 mm audio headphone port. Two of the USB 3.0 ports are always-on fast-charging ports, adding charge-and-sync flexibility for up to two mobile devices.

Perfect desktop companion

The compact, horizontal design of the laptop docking station makes it easy to position on your desk, alongside your other devices and peripherals. It’s an attractive addition to any workspace, with a sleek silver and black finish that matches most laptops.

The DK30ADD is backed by a StarTech.com 3-year warranty and free lifetime technical support.

Hardware
Displays Supported	2
Fast-Charge Port(s)	Yes
Industry Standards	USB Battery Charging Specification Rev. 1.2 IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0/1.1
Interface	USB 3.0
Indicators
LED Indicators	Power
Packaging Information
Shipping (Package) Weight	815 g [28.8 oz]
Performance
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	Dual displays - HDMI + DVI - 2048 x 1152 @ 60Hz Dual displays - HDMI 2048 x 1152 + VGA 1920 x 1200 @ 60Hz
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Cable Length	1000 mm [39.4 in]
Color	Black & Silver
Enclosure Type	Plastic
Product Height	31.2 mm [1.2 in]
Product Length	216.1 mm [8.5 in]
Product Weight	291 g [10.3 oz]
Product Width	86.2 mm [3.4 in]
Power
Center Tip Polarity	Positive
Input Current	1 A
Input Voltage	100 ~ 240 AC
Output Current	2 A
Output Voltage	20V DC
Plug Type	N
Power Consumption (In Watts)	40W
Power Source	AC Adapter Included
Software
OS Compatibility	Windows® 7, 8, 8.1, 10 Mac OS® 10.10 to 10.13.3
Special Notes / Requirements
Note	A DVI to VGA adapter is included.
	Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions.
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
System and Cable Requirements	A host laptop with an available USB-A port.
Hardware
Chipset ID	DisplayLink - DL-3900 VIA/VLI - VL813
Bus Type	USB 3.0
4K Support	No
Environmental
Storage Temperature	-10°C to 70°C (14°F to 158°F)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	10-90% non-condensing
Connector(s)
Connector Type(s)	USB Type-A (9 pin) USB 3.0 Female
	USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed) Female
	Ethernet Gigabit Female
	DVI-I (29 pin) Female
	3.5 mm Mini-Jack (4 Position) Female
	19 pin HDMI Female Female

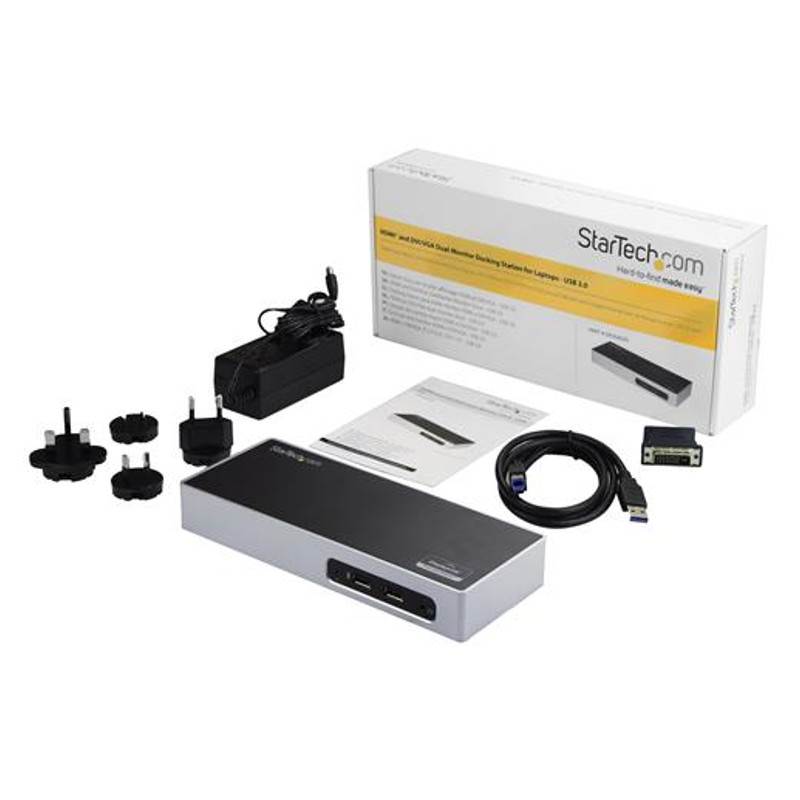

What's in the Box
Included in Package	docking station
	DVI to VGA adapter
	quick-start guide
	universal power adapter (NA/JP, UK, EU, ANZ)
	USB 3.0 cable

2x always-on BC 1.2 (1.5A) fast-charge USB-A ports that charge without a connected computer
DisplayLink certified and works w/ laptop brands like HP Dell Lenovo MacBook Surface Book / Pro 6 and Chromebooks
Dual monitor USB 3.0 docking station with HDMI and DVI or VGA / 6x USB 3.1 Gen 1 Type-A 5Gbps ports / GbE / audio / incl. 1m USB-A host cable
Mixed multi monitor connectivity: HDMI + DVI or HDMI + VGA (incl. DVI to VGA Adapter)
Universal USB Type-A dock for Windows macOSx ChromeOS
