With its contemporary design, featuring a long extension arm with a large swivel range, this full motion TV wall mount for large-screen displays is the perfect choice for versatile viewing. You can extend the swiveling arm out to adjust your screen position, making it easy to view your display from numerous angles within the room.

Save Space

This adjustable wall mount TV bracket is ideal for a meeting space, lobby, boardroom, classroom or other venues. The monitor mount provides an impressive and secure way to display a flat-panel TV or mount a digital signage display, while freeing up valuable space.

Robust Steel Construction

Engineered from high-grade steel, the flat-screen TV wall mount securely supports VESA mount displays, including curved TVs, 37"" to 80"" with a weight capacity of 110 lb. (50 kg).

Full-Motion Adjustment

With a smooth and effortless motion, you can extend the articulating arm out from the wall up to 25.5"" (65 cm) to adjust the position of your display. Swivel the arm with ease, up to 90 degrees to the left or right, to position your TV for comfortable viewing.

You can also retract the arm back, to nest against the wall. With its low-profile design, the articulating TV wall mount enables your display to sit just 2.8"" (70 mm) from the wall.

Find the Right Viewing Angle

Swivel your screen +/- 90 degrees and tilt your screen -2 to +15 degrees for ideal viewing and to reduce glare.

The tilting TV wall mount also has a screen level adjustment, so you can adjust your display up to 3 degrees clockwise or counterclockwise after you've installed it, to ensure your display is level.

Easy to Install

The universal swivel TV wall mount is easy to install. The television mounting brackets for flat screen displays feature a post-installation lateral shift, to help adjust and center the mount on the wall, even with off-center studs. Cable management keeps cables neatly organized.

FPWARTS1 is backed by a StarTech.com 5-year warranty and free lifetime technical support.

"

Hardware
# of Displays Supported	1
Articulating	Yes
Cable Management	Yes
Minimum Profile from Wall	70 mm [2.8 in]
Mounting Options	Wall-Mount
VESA Hole Pattern(s)	200x100 mm
	200x200 mm
	300x200 mm
	300x300 mm
	400x200 mm
	400x300 mm
	400x400 mm
	600x400 mm
Wallmountable	Yes
Packaging Information
Package Height	95 mm [3.7 in]
Package Length	740 mm [29.1 in]
Package Width	546 mm [21.5 in]
Shipping (Package) Weight	14220 g [502 oz]
Performance
Display Swivel	+90° / - 90°
Display Tilt	+2° / -15°
Fits Curved Display	Yes
Maximum Arm Extension	650 mm [25.6 in]
Maximum Display Size	80"
Minimum Arm Extension	70 mm [2.8 in]
Minimum Display Size	37"
Screen Level Adjustment	Screen Level Adjustment: +3° / -3°
Swivel / Pivot	+90° / -90°
Weight Capacity (Per Display)	50 kg [110.5 lb]
Physical Characteristics
Color	Black
Material	Steel
Product Height	935 mm [36.8 in]
Product Length	650 mm [25.6 in]
Product Width	465 mm [18.3 in]
Weight of Product	13000 g [458.9 oz]
Prominence
Description CDW 75 - 1st Line	StarTech.com TV Wall Mount for up to 80" VESA Mount Displays - Full Motion

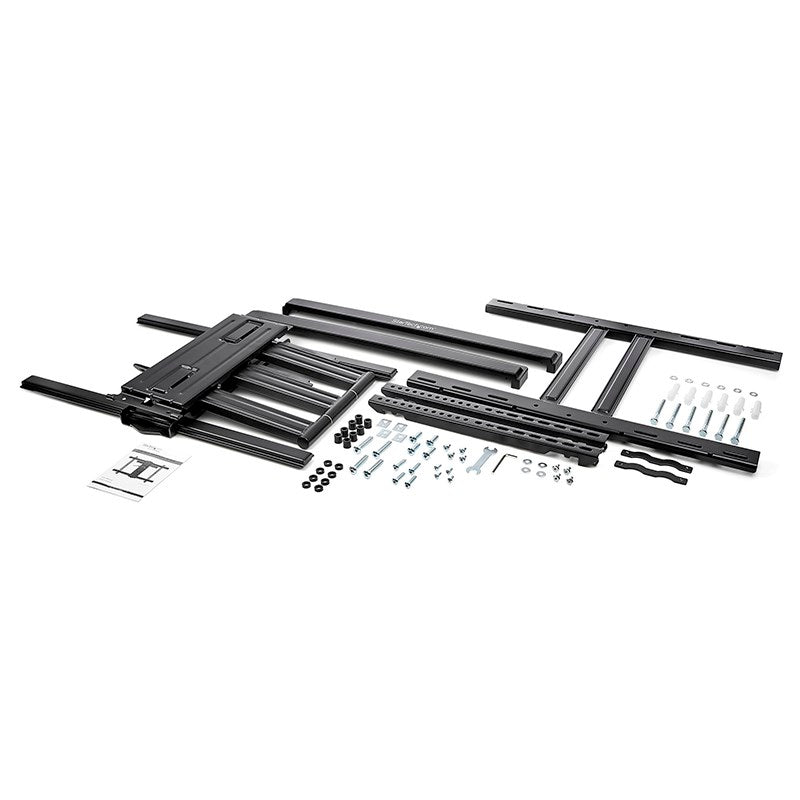

What's in the Box
Included in Package	Decorative Covers
	Hex Key
	Large Spacers
	M5 x 14 mm Screws
	M6 x 14 mm Screws
	M6 x 15 mm Screws
	M6 x 30 mm Screws
	M8 x 30 mm Screws
	M8 x 50 mm Screws
	Mounting Plates
	Mounting Screws
	Rectangular Washers
	Round Washers, Large
	Round Washers, Small
	Small Spacers
	TV Mounting Brackets
	TV Wall Mount Assembly
	User Manual
	Wall Anchors
	Wall Mounting Bracket
	Wrench

Adjustable TV wall mount w/post-install 45.8" lateral shift to center LCD television on wall/corner
Articulating TV mount w/+/-90 swivel +2/-15 tilt +/-3 screen level and arms allow low-profile at 2.8" or extend to 25.5"
Cable management and black snap-on covers
Full-motion TV Wall Mount for large VESA mount displays or curved TVs up to 80 inch(110lb)
Heavy-duty steel w/durable powder-coated finish
Universal TV bracket supports LG Samsung other brands w/screws/spacers incl.
