This 4x4 USB 3.0 peripheral sharing switch lets you share four USB 3.0 peripheral devices between four different computers, providing a cost-effective way to create a more productive, space-efficient work area.

Save costs and time by sharing peripherals

Save the expense of purchasing duplicate peripherals, by sharing devices (such as USB printers, portable hard drives, mouse and keyboard) with up to four computers. The USB switch also lets you avoid having to swap cables from one system to another, saving time and effort.

Fast data transfer speed

Enjoy fast data transfers to and from your shared peripheral devices. The USB switch supports USB 3.0 (up to 5Gbps), providing high-bandwidth support for devices like external hard drives and webcams. The USB 3.0 switch is also backward compatible with USB 2.0/1.1 and works with older devices.

Easy to use

The plug-and-play USB switch is easy to use, with no drivers or software required. It features a remote port selector that lets you switch peripheral devices from one computer to another with the press of a button. The LED indicates the active computer.

The switch’s compact design takes up minimal desk space and it’s USB-powered.

Share more devices

The 4-port USB switch can also be connected to a USB hub or docking station, to expand the number of shared devices.

The HBS304A24A is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Indicators
LED Indicators	Computer selection indicators
Packaging Information
Package Height	59 mm [2.3 in]
Package Length	239 mm [9.4 in]
Package Width	160 mm [6.3 in]
Shipping (Package) Weight	570 g [20.1 oz]
Performance
Maximum Data Transfer Rate	5 Gbps
Optional power requirements	Optional power requirements: 5V 2A
Type and Rate	USB 3.0 - 5 Gbit/s
Physical Characteristics
Color	Black
Enclosure Type	Plastic
Form Factor	Compact
Product Height	26 mm [1 in]
Product Length	94 mm [3.7 in]
Product Width	94 mm [3.7 in]
Weight of Product	124 g [4.4 oz]
Power
Power Source	USB-Powered
Software
OS Compatibility	OS Independent - No software or drivers required
Special Notes / Requirements
Note	The switch does not require an external power source as it draws power from the computers that it’s connected to. If you have a special application that requires additional power, such as higher powered USB peripherals or if less than 4 hosts are connected and powered at one time, connect a 5V source to the power adapter port (USB Micro-B).
What's in the Box
Included in Package	1.8 m [6 ft] remote port selector
	peripheral sharing switch
	quick-start guide

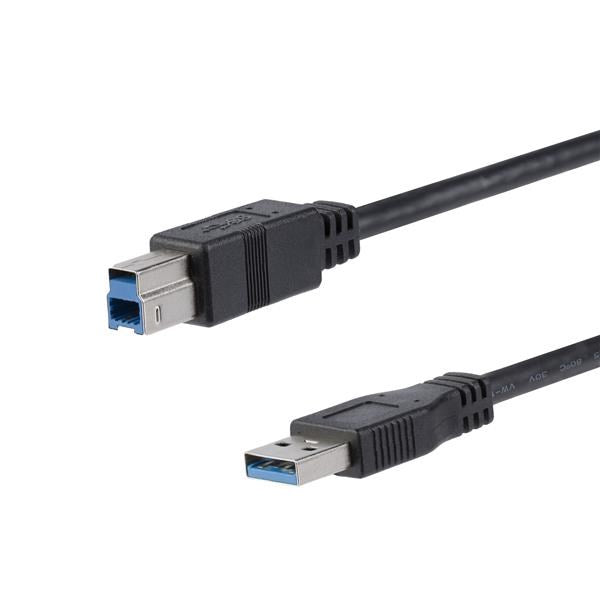

	USB 3.0 cables - USB-A to USB-B 2x 1.2 m [4 ft] / 2x 1.8 m [6 ft]
Hardware
USB-C Host Connection	No
USB-C Device Port(s)	No
Ports	4
Interface	USB 3.1 Gen 1
Fast-Charge Port(s)	No
Bus Type	USB 3.0
Environmental
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Humidity	0~80% RH
Connector(s)

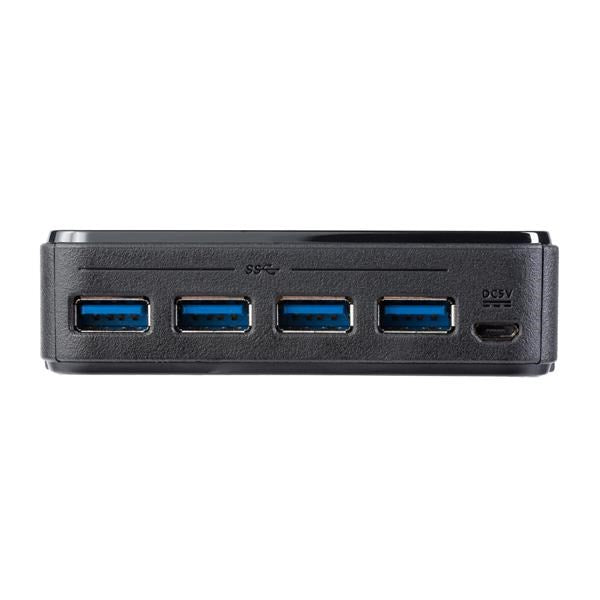

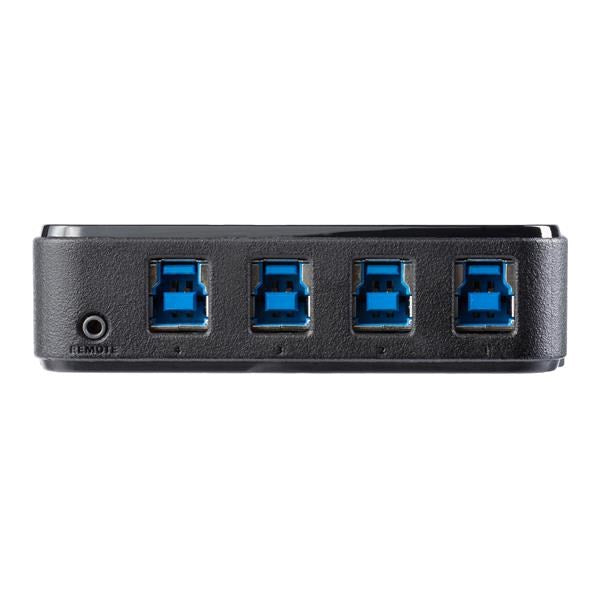

External Ports	USB Type-B (9 pin) USB 3.0 Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Micro-B (5 pin) (Power) Female

4X4 USB 3.0 Peripheral Sharing Switch for Mac / Windows / Linux
Hot pluggable USB A/B switch
LED indicates active computer
Over-current protection
Save costs with this USB switch by sharing USB devices such as a printer / portable hard drive / mouse / keyboard with four computers
Share up to four USB 3.0 devices between four different computers
USB 3.0 switch with remote port selector lets you switch devices from one computer to another with the press of a button
USB Printer Switch
