StarTech Rackmount KVM Console HD - 1U 17" LCD VGA KVM Drawer w/Cables
StarTech Rackmount KVM Console HD - 1U 17" LCD VGA KVM Drawer w/Cables
Description
• 17.3" Active Matrix TFT widescreen monitor/ 1U height / VGA + USB / Full keyboard & Trackpad Universal power (US/UK/JP/ANZ)
• Durable steel housing design & rails to withstand frequent use w/ 50,000 hour MTBF
• Backed by 2 year warranty w/ 24/5 multi-lingual tech support
In stock with supplier
Ships within 8 - 27 days
BANK TRANSFER (EFT)
In stock with supplier
Ships within 8 - 27 days
Accepted payment methods
Description
• 17.3" Active Matrix TFT widescreen monitor/ 1U height / VGA + USB / Full keyboard & Trackpad Universal power (US/UK/JP/ANZ)
• Durable steel housing design & rails to withstand frequent use w/ 50,000 hour MTBF
• Backed by 2 year warranty w/ 24/5 multi-lingual tech support

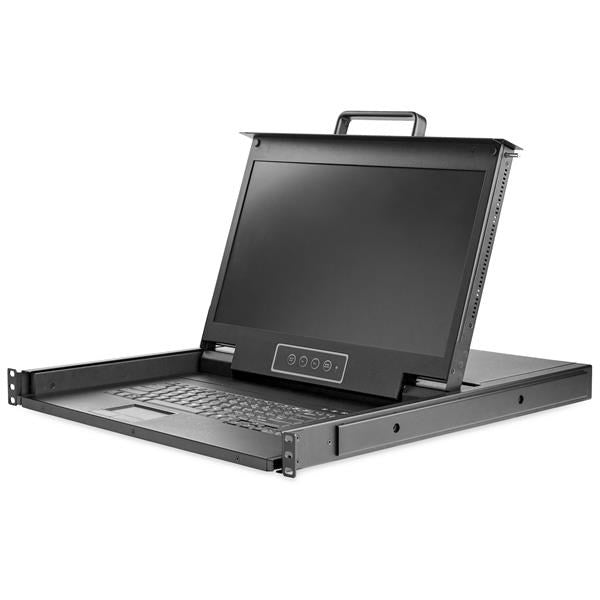

Providing centralized control of your single PC or dozens of servers, this HD rackmount KVM console also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet. Connected to your servers through a separate KVM switch (sold separately), the LCD console installs into 1U of rack-space, offering a space-efficient solution for complete console control.
High-Definition LCD Monitor
The 1080p KVM console’s monitor is 17.3” and LED back-lit, for low power consumption. It supports high-definition resolutions up to 1920x1080 providing sharper video performance. This HD console also provides more screen space, helping you to run multiple applications on the same screen, increasing your productivity.
Clutter-Free Monitoring

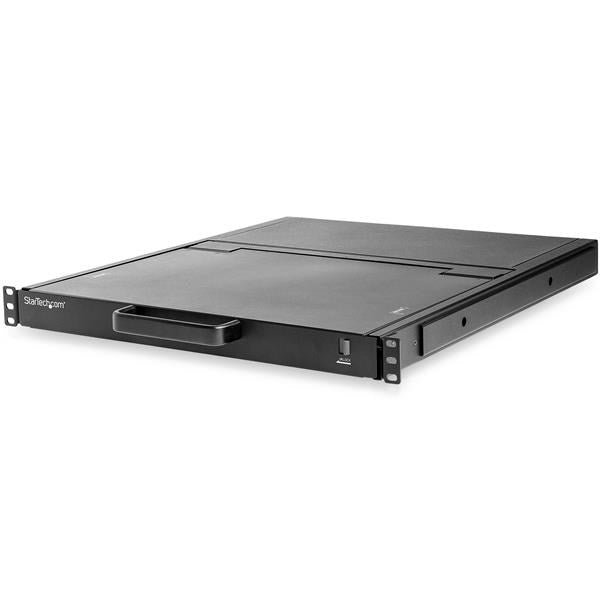

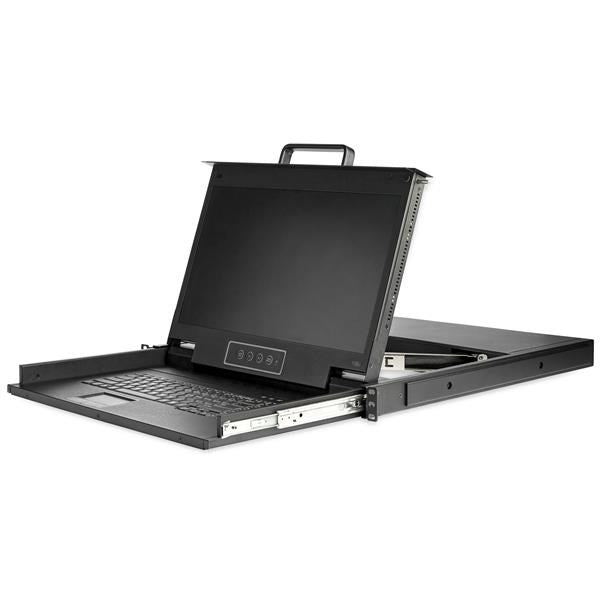

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rackmount VGA KVM features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free. Simple Setup This single-port KVM console comes with everything you need to set up:
- 1 Audio Cable
- 1 Set of KVM Cables (VGA)
- 2 Rear Mounting Brackets
- M5 Cage Nuts and Screws
Cost Effective Solution This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as a high-definition LCD display. StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals.
This rackmount KVM console is backed by a 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Host Connectors | HD15 (15 pin, High Density D-Sub) Female Input |
| Other Interface(s) | IEC 60320 C14 Power Female Input |
| Environmental | |
| Humidity | 10 ~ 80% RH |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Hardware | |
| Audio | No |
| Cables Included | Yes |
| Daisy-Chain | No |
| Display Size | 17.3" |
| KVM Ports | 1 |
| Number of Monitors Supported | 1 |
| Panel Type | Active Matrix TFT LCD |
| PC Interface | USB |
| PC Video Type | VGA |
| Rack-Mountable | Yes |
| U Height | 1U |
| Indicators | |
| LED Indicators | Power / Status LED |
| Packaging Information | |
| Package Height | 18.5 cm [7.3 in] |
| Package Length | 76.5 cm [30.1 in] |
| Package Width | 61.5 cm [24.2 in] |
| Shipping (Package) Weight | 16 kg [35.4 lb] |
| Performance | |
| Aspect Ratio | 16:9 |
| Brightness | 300 cd/m² |
| Color Depth | 6-bit, 262144 colors |
| Contrast Ratio | 800:1 |
| IP Control | No |
| Maximum Analog Resolutions | 1920x1080 |
| Maximum Number of Users | 1 |
| MTBF | 50000 Hours |
| Pixel Pitch Support | 0.1989 x 0.1989 mm |
| Supported Resolutions | Resolutions up to 1920x1080 @ 60Hz |
| Viewing Angle | 170° (H), 170° (V) |
| Physical Characteristics | |
| Cable Length | 1.8 m |
| Color | Black |
| Enclosure Type | Steel |
| Maximum Mounting Depth | 85 cm [33.5 in] |
| Minimum Mounting Depth | 510 mm [20.1 in] |
| Product Height | 4.3 cm [1.7 in] |
| Product Length | 56.5 cm [22.2 in] |
| Product Width | 48.3 cm [19 in] |
| Weight of Product | 13.7 kg [30.3 lb] |
| Power | |
| Input Current | 1.5A |
| Input Voltage | 100 - 240 AC |
| Power Consumption (In Watts) | 13W |
| Power Source | International Power Cords |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com 17" HD Rackmount KVM Console - 1 Port VGA -1080p |
| What's in the Box | |
| Included in Package | KVM cable |
| KVM console | |
| M5 cage nuts | |
| M5 screws | |
| mounting rails | |
| quick-start guide | |
| regional power cords (NA, JP, UK, EU, ANZ) | |
Backed by 2 year warranty w/ 24/5 multi-lingual tech support
Durable steel housing design & rails to withstand frequent use w/ 50
000 hour MTBF
Rackmount KVM console w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications requiring extra detail
Server rack HD KVM console drawer works w/any KVM switch that supports VGA & USB interfaces
