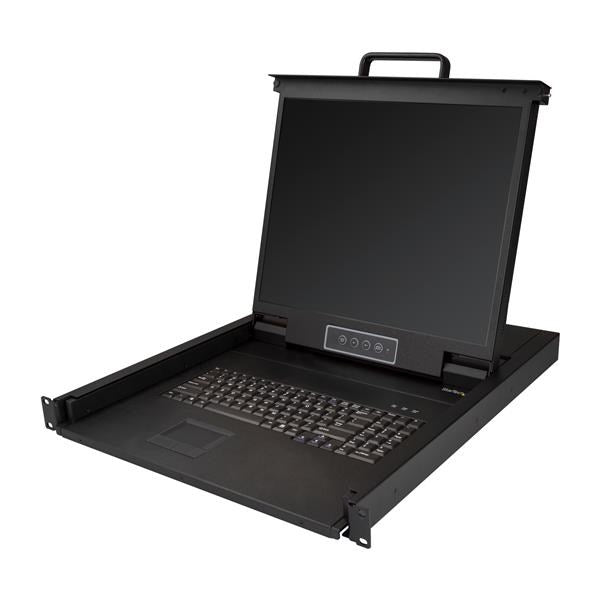

This rack-mount KVM console provides complete keyboard, monitor and mouse control for a single server or multiple servers, connected through a separate KVM switch (sold separately). The 19 in. console installs into 1U of rack space, offering a space-efficient solution for complete console control.

Maximize your IT budget, minimize your hassle

This KVM console provides all the essential controls you’ll need to manage your server room at a low cost. The console features a built-in keyboard and a touchpad for intuitive control, as well as an LCD display that supports resolutions up to 1280x1024.

Maximize your screen space

This versatile LCD console has a 19 in. screen. The increased screen space allows you to run multiple applications on the same screen, increasing your productivity.

Clutter-free monitoring

The rack-mount LCD console slides out from 1U of rack space, enabling you to easily monitor and control a single server or multiple servers when connected through a KVM switch. The rack-mount VGA console features a handle that makes it easy to slide the console in and out of the server rack, keeping your area organized and clutter-free.

Hassle-free system integration

The rack console features a single-port KVM module, which enables you to connect it directly to a server. The module offers the flexibility you need to easily integrate it into your existing server infrastructure.

The RKCONS1901 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Console Interface(s)	VGA (15 pin, High Density D-Sub) Female Input
Environmental
Humidity	10 ~ 80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
Audio	No
Cables Included	Yes
Daisy-Chain	Yes
Display Size	19in
Front Door Key Lock	No
KVM Ports	1
Number of Monitors Supported	1
Panel Type	Active Matrix TFT LCD
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Indicators
LED Indicators	power / status LED
Packaging Information
Package Height	190 mm [7.5 in]
Package Length	765 mm [30.1 in]
Package Width	615 mm [24.2 in]
Shipping (Package) Weight	16 kg [35.4 lb]
Performance
Brightness	250 cd/m²
Color Depth	8-bit, 16.7M colors
Contrast Ratio	1000:1
IP Control	No
Maximum Analog Resolutions	1280 x 1024
Maximum Number of Users	1
MTBF	50, 000 Hrs
Pixel Pitch Support	0.264 x 0.264 mm
Supported Resolutions	1024x768 1280x720 (High-definition 720p) 1280 x 1024 Lower resolutions are also supported
Physical Characteristics
Maximum Mounting Depth	78 cm [30.7 in]
Minimum Mounting Depth	50 cm [19.7 in]
Product Height	43 mm [1.7 in]
Product Length	53.3 cm [21 in]
Product Width	48.3 cm [19 in]
Weight of Product	12.2 kg [27 lb]
Power
Power Consumption (In Watts)	17W
What's in the Box
Included in Package	KVM cable
	KVM console
	M5 cage nuts
	M5 screws
	mounting rails (variable length)
	quick-start guide
	regional power cords (NA, JP, UK, EU, ANZ)

Backed by 2 year warranty with 24/5 by multi-lingual tech support
Compatible with StarTech.com integrated 8-port (RKCONS1908K) or 16-port (RKCONS1916K) KVMs
Rack mount monitor w/ 19" Active Matrix TFT 1280x1024 LCD|1U|99 key full keyboard w/ numeric keypad Trackpad |Integrated power supply
Server rack drawer w/ durable steel housing and rails|Operating Tempature from 32F to 104F|50000 hour MTBF
This rackmount KVM console drawer works w/ all VGA + USB KVM switch brands and models
