StarTech PCIe GbE Fiber Network Card - Open SFP
Description
• StarTech PCI Express Gigabit Ethernet Fiber Network Card with Open SFP PCIe SFP Network Card Adapter NIC
$341.74
Sale price
$341.74
BANK TRANSFER (EFT)
$341.74
Sale price
$341.74
Accepted payment methods
Description
• StarTech PCI Express Gigabit Ethernet Fiber Network Card with Open SFP PCIe SFP Network Card Adapter NIC
View Full Details

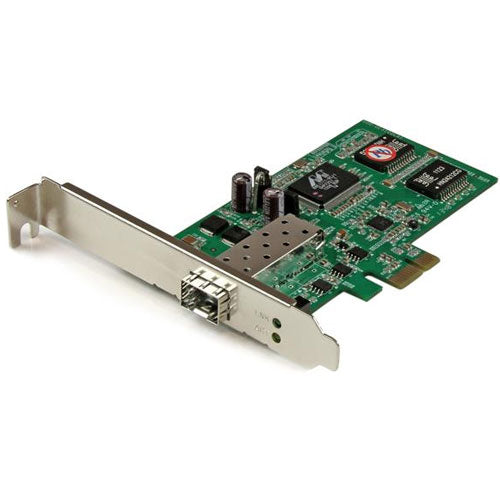

The PEX1000SFP2 PCI Express Gigabit Fiber Network Card lets you connect a PCI Express-based computer directly to a fiber optic network using the Gigabit SFP of your choice.
This Gigabit fiber card adapts to your network fiber connection and distance requirements to offer flexible configuration via an open SFP slot, and is compatible with most Gigabit SFP transceivers. With broad SFP compatibility the fiber network card lets you use your preferred SFP, giving you more options to connect your computer directly to a fiber network.
With fiber connectivity, your network is not susceptible to electronic interference, often problematic with standard RJ45 copper networks, making this versatile fiber card ideal for secure network setups.

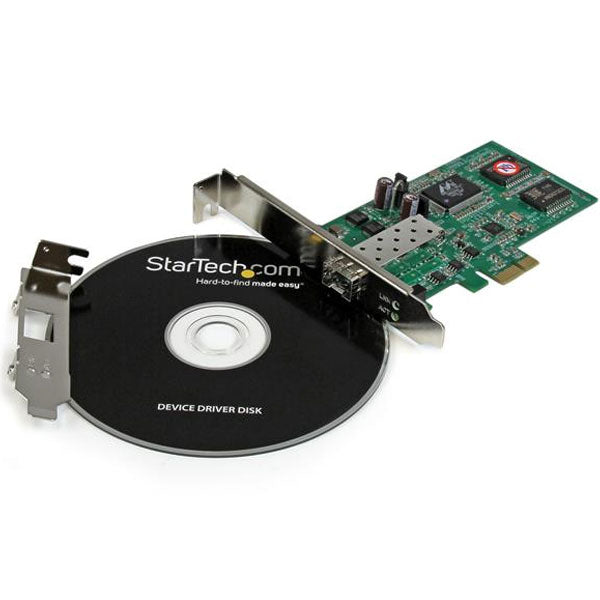

Plus, the card is equipped with a standard profile bracket and includes a low-profile/half-height bracket, perfect for installation in small form-factor computers or 1U server and rackmount applications.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| Connector Type(s) | PCI Express x1 Male |
| External Ports | SFP Slot Female |
| Environmental | |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -20°C to 70°C (-4°F to 158°F) |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Standard Profile (LP bracket incl.) |
| Chipset ID | Realtek - RTL8168E Marvell - 88E1111B1 |
| Industry Standards | IEEE802.3z 1000BASE-SX/LX, IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding, IEEE 802.3x full duplex flow control, RFC 1157 SNMP v1 |
| Interface | Fiber Ethernet |
| Ports | 1 |
| Indicators | |

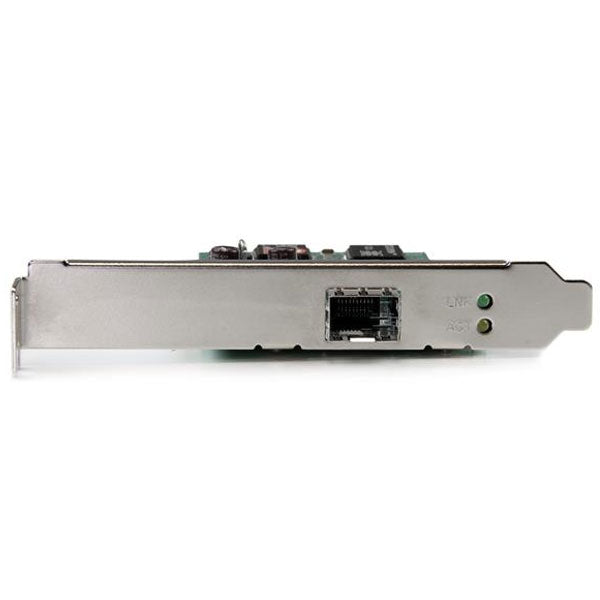

| LED Indicators | Activity (Yellow) |
| Link (Green) | |
| Packaging Information | |
| Shipping (Package) Weight | 200 g [7.1 oz] |
| Performance | |
| Auto MDIX | Yes |
| Buffer Size | 48 KB |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Full Duplex Support | Yes |
| Maximum Data Transfer Rate | 2000 Mbps (2 Gbps) - Full-Duplex |
| MTBF | 770,619 hours |
| Physical Characteristics | |
| Product Height | 118 mm [4.6 in] |
| Product Length | 128 mm [5 in] |
| Product Weight | 57 g [2 oz] |
| Product Width | 18 mm [0.7 in] |
| Power | |
| Power Consumption (In Watts) | 3.2W Max |
| Software | |
| OS Compatibility | Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016 Mac OS X® 10.5 to 10.9 Linux 2.4.x to 4.11.x LTS Versions only Microsoft Hyper-V® |
| Special Notes / Requirements | |
| Note | Fiber data transfer speeds and distances are dependent on the SFP used (sold separately) |
| System and Cable Requirements | Not compatible with 100Mbps SFP transceivers, Gigabit SFP transceiver required |
| What's in the Box | |
| Included in Package | 1 Port PCI Express Gigabit SFP Network Card |
| Driver CD | |
| Instruction Manual | |
| Low-Profile Bracket | |
