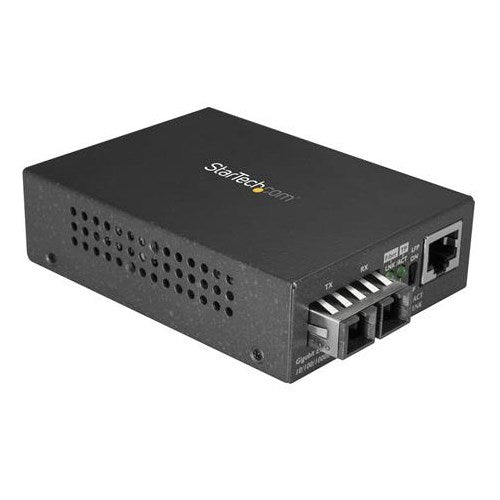

StarTech Multimode SC Fiber Ethernet Media Converter Bridge 10/100/1000
StarTech Multimode SC Fiber Ethernet Media Converter Bridge 10/100/1000
Description
Multimode fiber Ethernet media converter w/ a fixed fiber to copper connection that bridges & extends Ethernet networks
Gigabit 10/100/1000Mbps | 1000BASE-SX | 850nm | Max. Distance: 550m (1084') | Unmanaged
MMF | SC Connector (Full Duplex) | RJ45 | LFP | VLAN | Speed & Activity LEDs
Steel housing w/ mounting brackets / ESD Surge + Contact & Air Discharge Protection
MTBF rating 50,000hrs+ / Operating temp 0°C-50°C (32°F-122°F)
2-yr warranty & free lifetime 24/5 multilingual support
Gigabit 10/100/1000Mbps | 1000BASE-SX | 850nm | Max. Distance: 550m (1084') | Unmanaged
MMF | SC Connector (Full Duplex) | RJ45 | LFP | VLAN | Speed & Activity LEDs
Steel housing w/ mounting brackets / ESD Surge + Contact & Air Discharge Protection
MTBF rating 50,000hrs+ / Operating temp 0°C-50°C (32°F-122°F)
2-yr warranty & free lifetime 24/5 multilingual support
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$128.95
Sale price
$128.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$128.95
Sale price
$128.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
Multimode fiber Ethernet media converter w/ a fixed fiber to copper connection that bridges & extends Ethernet networks
Gigabit 10/100/1000Mbps | 1000BASE-SX | 850nm | Max. Distance: 550m (1084') | Unmanaged
MMF | SC Connector (Full Duplex) | RJ45 | LFP | VLAN | Speed & Activity LEDs
Steel housing w/ mounting brackets / ESD Surge + Contact & Air Discharge Protection
MTBF rating 50,000hrs+ / Operating temp 0°C-50°C (32°F-122°F)
2-yr warranty & free lifetime 24/5 multilingual support
View Full Details
Gigabit 10/100/1000Mbps | 1000BASE-SX | 850nm | Max. Distance: 550m (1084') | Unmanaged
MMF | SC Connector (Full Duplex) | RJ45 | LFP | VLAN | Speed & Activity LEDs
Steel housing w/ mounting brackets / ESD Surge + Contact & Air Discharge Protection
MTBF rating 50,000hrs+ / Operating temp 0°C-50°C (32°F-122°F)
2-yr warranty & free lifetime 24/5 multilingual support
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m over multimode fiber, on 1000BASE-SX networks.
Extend your GbE network cost-effectively
The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Hardware | |
| WDM | No |
| Indicators | |
| LED Indicators | 1000 Link: ON - Valid Gigabit Link |
| FX Link/Activity | |
| Power | |
| TP Link/Activity | |
| Packaging Information | |
| Package Height | 66 mm [2.6 in] |
| Package Length | 133 mm [5.2 in] |
| Package Width | 280 mm [11 in] |
| Shipping (Package) Weight | 564 g [19.9 oz] |
| Performance | |
| Auto MDIX | Yes |
| Fiber Operating Mode | Full-Duplex |
| Jumbo Frame Support | 9K max. |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1000 Mbps (1 Gbps) |
| MTBF | > 50,000 hours at 25°C |
| Supports a maximum distance of 550 m over MM fiber-optic cable (SC connection), and 100m over copper (RJ45 connection) Data Transfer Rate Copper |
Supports a maximum distance of 550 m over MM fiber-optic cable (SC connection), and 100m over copper (RJ45 connection) Data Transfer Rate Copper: 10/100/1000 Mbps Data Transfer Rate Fiber: 1000 Mbps ESD Surge Protection: 1KV. Contact discharge - 4KV. Air discharge - 8KV |
| Switching Architecture | Store-and-Forward |
| Type | Multi Mode |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Brown |
| Enclosure Type | Steel |
| Product Height | 26 mm [1 in] |
| Product Length | 70 mm [2.8 in] |
| Hardware | |
| PoE | No |
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| IEEE 802.3x full-duplex flow control | |
| IEEE 802.3u 100BASE-TX | |
| IEEE 802.3ab 1000BASE-T | |
| IEEE 802.3 10BASE-T | |
| IEEE 802.1q VLAN pass through | |
| Environmental | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity | 5 ~ 90% RH |
| Connector(s) | |
| Remote Unit Connectors | Fiber Optic SC Duplex Female |
| Local Unit Connectors | RJ-45 Female |
| Physical Characteristics | |
| Product Width | 97 mm [3.8 in] |
| Weight of Product | 200 g [7.1 oz] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 0.5 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 2.6 A |
| Output Voltage | 5 DC |
| Plug Type | N |
| Power Consumption (In Watts) | 5 |
| Power Source | AC Adapter Included |
| What's in the Box | |
| Included in Package | media converter |
| quick-start guide | |
| universal power adapter (NA/JP, UK, EU, ANZ) | |
2-yr warranty & free lifetime 24/5 multilingual support
Gigabit 10/100/1000Mbps | 1000BASE-SX | 850nm | Max. Distance: 550m (1084) | Unmanaged
MMF | SC Connector (Full Duplex) | RJ45 | LFP | VLAN | Speed & Activity LEDs
MTBF rating 50
000hrs+ / Operating temp 0C-50C (32F-122F)
Multimode fiber Ethernet media converter w/ a fixed fiber to copper connection that bridges & extends Ethernet networks
Steel housing w/ mounting brackets / ESD Surge + Contact & Air Discharge Protection
Gigabit 10/100/1000Mbps | 1000BASE-SX | 850nm | Max. Distance: 550m (1084) | Unmanaged
MMF | SC Connector (Full Duplex) | RJ45 | LFP | VLAN | Speed & Activity LEDs
MTBF rating 50
000hrs+ / Operating temp 0C-50C (32F-122F)
Multimode fiber Ethernet media converter w/ a fixed fiber to copper connection that bridges & extends Ethernet networks
Steel housing w/ mounting brackets / ESD Surge + Contact & Air Discharge Protection
