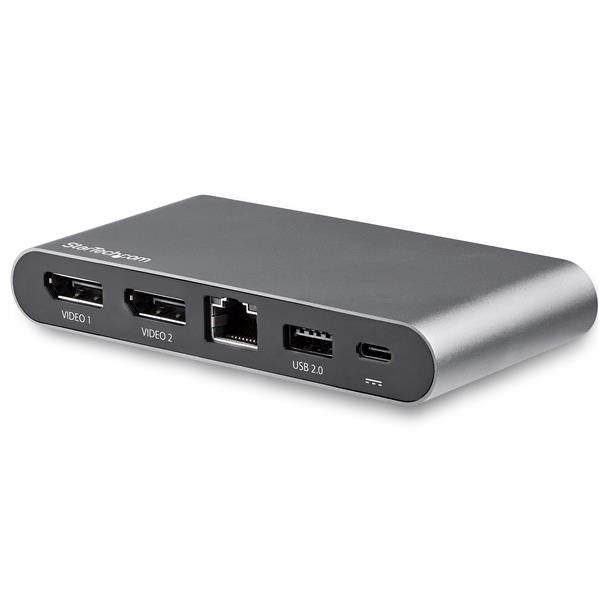

Transform your Windows laptop into a dual monitor workstation using this USB-C docking station. It offers support for dual DisplayPort monitors, 2 USB-A peripherals, a LAN port for GbE network access and an extended 1-meter host cable.

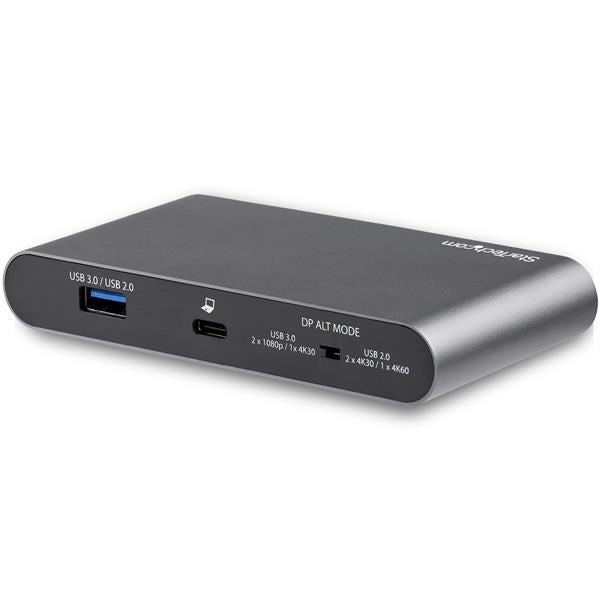

DisplayPort™ Alternate Mode to Choose Your Video Display Output

Achieve dual 1080p up to a single 4K 60Hz display using the DisplayPort™ Alternate Mode (DP Alt-Mode) configuration switch.

Switch Left	Switch Right
2 Lane DP Alt- Mode	4 Lane DP Alt Mode
USB 3.0 (5Gbps)	USB 2.0 (480 Mbps)
Dual 1080p Monitors or Single 4K 30Hz Monitor	Dual 4K 30Hz Monitors or Single 4K 60Hz Monitor

Reliable 100W Power Delivery Passthrough

The USB-C multiport adapter uses your USB-C laptop’s power adapter and can provide up to 100W Power Delivery (3.0) pass through with up to 85W for your host device for charging. The remaining wattage will power the docking station along with any attached USB-A peripherals such as smartphones and tablets.

Multi-Stream Transport for Driverless Displays

The multi-stream transport technology (MST) in this dock powers two DisplayPort monitors with no driver installation required so you are up and running faster.

Comprehensive Product Testing & Expert Technical Support

StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have a broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.

This docking station is backed by a StarTech.com 3-Year warranty and free lifetime technical support.

Power
Power Source	Bus Powered and Host USB-C Power Adapter
Prominence
Description CDW 75 - 1st Line	StarTech.com Dual DP Monitor USB C Docking Station for Windows® Laptops
Software
OS Compatibility	Windows® 7, 8, 8.1, 10
Special Notes / Requirements
Note	A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)
	For a dual-monitor configuration the host laptop must support MST.
	In USB 3.0 mode, the maximum Ethernet speed is 1000 Mbps. In USB 2.0 mode, the maximum Ethernet speed is 100 Mbps.
	Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 or 3.0 and DP alt mode.
	The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0 or 3.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.
	The multiport adapter provides limited Android support (no MST support).
	The multiport adapter provides limited Chrome support (no MST support; Ethernet only when using bus power).
	Through support of USB Power Delivery?3.0, the multiport adapter supports Fast Role Swap which prevents USB data disruption when?you?unplug?to?switch?power sources (USB-C?power adapter to?bus power).
	USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.
	Video output capabilities are dependent on the video card and hardware specification of your connected laptop.
	Your laptop may have specific requirements for charging. This USB-C multiport adapter supports USB Power Delivery 3.0, up to 100W. When using your laptop’s USB-C power adapter, the multiport adapter powers both the adapter (with attached peripherals) and your laptop - with up to 85W charging available for laptop charging. For more information on your laptop’s charging requirements, refer to the manufacturer of your laptop.
System and Cable Requirements	A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 or PD 3.0 and DP alt mode)
What's in the Box
Included in Package	Quick-Start Guide
	USB-C Cable
Power
Power Delivery	100W
Power Consumption (In Watts)	15W
Laptop Charging via Power Delivery	85W
Physical Characteristics
Weight of Product	200 g [7.1 oz]
Product Width	60 mm [2.4 in]
Product Length	12 cm [4.7 in]
Product Height	1.9 cm [0.7 in]
Enclosure Type	Plastic
Color	Black
Performance
UASP Support	Yes
Type and Rate	USB 3.0 - 5 Gbit/s
Maximum Digital Resolutions	Dual DisplayPort displays: Up to 4096 x 2160p @ 24Hz or 3840 x 2160p @ 30Hz Single DisplayPort display: Up to 4096 x 2160p @ 60Hz or 3840 x 2160p @ 60Hz Single UltraWide DisplayPort display - Up to 3440 x 1440p @ 60 Hz Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Special Notes / Requirements
System and Cable Requirements	Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)
Hardware
Chipset ID	VIA/VLI - VL102 VIA/VLI - VL170 VIA/VLI - VL817 MegaChips - STDP4320 RealTek - RTL8153
Displays Supported	2
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab USB 3.0 - Backward compatible with USB 2.0 and 1.1
Packaging Information
Package Height	42 mm [1.7 in]
Package Length	20.8 cm [8.2 in]
Package Width	14.5 cm [5.7 in]
Shipping (Package) Weight	220 g [7.8 oz]
Performance
Auto MDIX	Yes
Full Duplex Support	Yes
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
What's in the Box
Included in Package	Multiport Adapter
Connector(s)
Connector Type(s)	DisplayPort (20 pin) Female
	RJ-45 Female
	USB Type-A (4 pin) USB 2.0 Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Type-C (24 pin) USB 3.0 (5Gbps) Male
	USB-C (24 pin) USB Power Delivery only Female
Environmental
Humidity	0~95% RH (Non-condensing)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Hardware
4K Support	Yes
Bus Type	USB-C

2 switchable operation modes: dual 4K 30Hz + USB 2.0 OR dual 1080p + USB 3.0
3.3 USB-C host cable/MAC Address Changer utility/Auto driver setup
Mini docking station works w/ USB-C laptops | Windows/Chrome OS | MacBooks limited to 1 monitor
Portable USB C dock with dual 4K 30Hz or single 4K 60Hz DisplayPort (DP) video/2 USB-A (USB 3.0/USB 3.1 Gen 1 5Gbps)/Gigabit Ethernet/100W Power Delivery 3.0 pass through
USB Type-C multiport adapter can be USB bus powered or w/ USB-C power adapter
