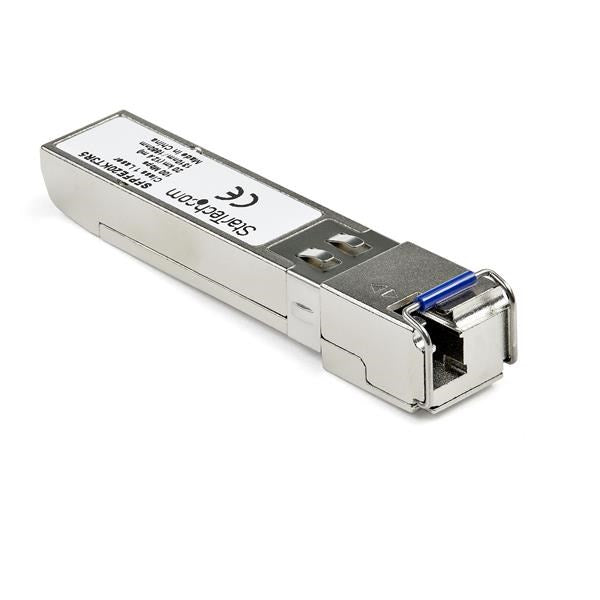

StarTech Juniper SFP-FE20KT15R13 Compatible - 100MbE BiDi SMF SFP
StarTech Juniper SFP-FE20KT15R13 Compatible - 100MbE BiDi SMF SFP
Description
• Juniper SFP-FE20KT15R13 Compatible SFP 100BASE-BX-D (100Mbps) 1550nmTX/1310nmRX Single Mode (SMF) 1Mb BiDi Transceiver
• Up to 20km (12.4mi)
• 1 Mb Ethernet
• Single Strand WDM SFP+ SMF Connector | DDM
• Hot-Swappable | MSA Compliant
• Backed by StarTech.com lifetime warranty on the module itself
• not the life of the Juniper switch/router and will not void OEM warranty
• Up to 20km (12.4mi)
• 1 Mb Ethernet
• Single Strand WDM SFP+ SMF Connector | DDM
• Hot-Swappable | MSA Compliant
• Backed by StarTech.com lifetime warranty on the module itself
• not the life of the Juniper switch/router and will not void OEM warranty
$45.95
Sale price
$45.95
BANK TRANSFER (EFT)
$45.95
Sale price
$45.95
Accepted payment methods
Description
• Juniper SFP-FE20KT15R13 Compatible SFP 100BASE-BX-D (100Mbps) 1550nmTX/1310nmRX Single Mode (SMF) 1Mb BiDi Transceiver
• Up to 20km (12.4mi)
• 1 Mb Ethernet
• Single Strand WDM SFP+ SMF Connector | DDM
• Hot-Swappable | MSA Compliant
• Backed by StarTech.com lifetime warranty on the module itself
• not the life of the Juniper switch/router and will not void OEM warranty
View Full Details
• Up to 20km (12.4mi)
• 1 Mb Ethernet
• Single Strand WDM SFP+ SMF Connector | DDM
• Hot-Swappable | MSA Compliant
• Backed by StarTech.com lifetime warranty on the module itself
• not the life of the Juniper switch/router and will not void OEM warranty
The SFPFE20KT5R3 is a Juniper SFP-GE10KT15R13 compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 100 MbE connectivity over fiber cable, for 100Base-BX10-D compliant networks, with a maximum distance of up to 20 km (12.4 mi).
Technical Specifications:
- Wavelength: 1310nmTx/1550nmRx
- Maximum Data Transfer Rate: 100 Mbps
- Type: Single Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 20 km (12.4 mi)
- MTBF: 3,713,222 hours
- Power Consumption: Low power consumption
- Digital Diagnostics Monitoring (DDM): Yes
| Automation Inputs | |
| Brand Compatible SFP without trade mark | Juniper |
| Connector(s) | |
| Connector A | SFP Slot Plug |
| Connector B | Fiber Optic LC Duplex Female |
| Hardware | |
| Compatible Brand | Juniper® |
| Industry Standards | IEEE 802.3 100BASE-BX10-D |
| Packaging Information | |
| Package Height | 15 mm [0.6 in] |
| Package Length | 230 mm [9.1 in] |
| Package Width | 207 mm [8.1 in] |
| Shipping (Package) Weight | 80 g [2.8 oz] |
| Performance | |
| Compatible Networks | 100 Mbps |
| DDM | Yes |
| Fiber Operating Mode | Full-Duplex |
| Max Transfer Distance | 20 km (12.4 mi) |
| Maximum Data Transfer Rate | 100 Mbps |
| MTBF | 3,713,222 hours |
| Type | Single Mode |
| Wavelength | 1310nmTx/1550nmRx |
| Physical Characteristics | |
| Product Height | 1.2 cm [0.5 in] |
| Product Length | 65 mm [2.6 in] |
| Product Width | 14 mm [0.6 in] |
| Weight of Product | 72 g [2.5 oz] |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com Juniper SFP-FE20KT15R13 Compatible SFP Module |
| What's in the Box | |
| Included in Package | SFP Transceiver |
