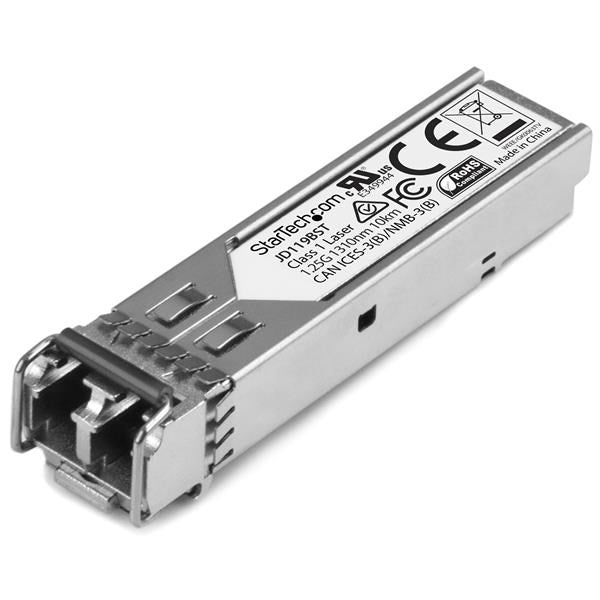

The JD119BST is an HP JD119B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).

Technical Specifications:

• Wavelength: 1310 nm
• Maximum Data Transfer Rate: 1.25 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 3,092,408 hours
• Power Consumption: Less than 1 Watt
• Digital Diagnostics Monitoring (DDM): Yes

This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.

Performance
Fiber Operating Mode	Full-Duplex
Max Transfer Distance	10 km (6.2 mi)
Maximum Data Transfer Rate	1.25 Gbps
MTBF	3,092,408 hours
Type	Single Mode
Wavelength	1310nm
Physical Characteristics
Color	Silver
Enclosure Type	Aluminum
Product Height	12.5 mm [0.5 in]
Product Length	56.6 mm [2.2 in]
Product Width	13.7 mm [0.5 in]
Weight of Product	16 g [0.6 oz]
Power
Power Consumption (In Watts)	< 1 W
Prominence
Description CDW 75 - 1st Line	StarTech.com HP JD119B Compatible SFP Module
Special Notes / Requirements
System and Cable Requirements	For use in Gigabit fiber networking equipment and media converters
	MSA or HP compliant SFP port
What's in the Box
Included in Package	SFP transceiver
Performance
DDM	Yes
Compatible Networks	1000 Mbps (1 Gbps)
Packaging Information
Shipping (Package) Weight	46 g [1.6 oz]
Package Width	118 mm [4.6 in]
Package Length	93 mm [3.7 in]
Package Height	33 mm [1.3 in]
Hardware
Industry Standards	IEEE 802.3z 1000BASE-LX
Compatible Brand	HP
Environmental
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Temperature	0°C to 70°C (32°F to 158°F)
Humidity	5~95% RH
Connector(s)
Local Unit Connectors	Fiber Optic LC Duplex Female

1310nm Single Mode (SMF)
Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
Hot-Swappable & MSA Compliant
HPE JD119B Compatible SFP 1000BASE-LX (1Gbps) Gigabit Ethernet
LC Connector DDM
Up to 10km (6.2mi)
