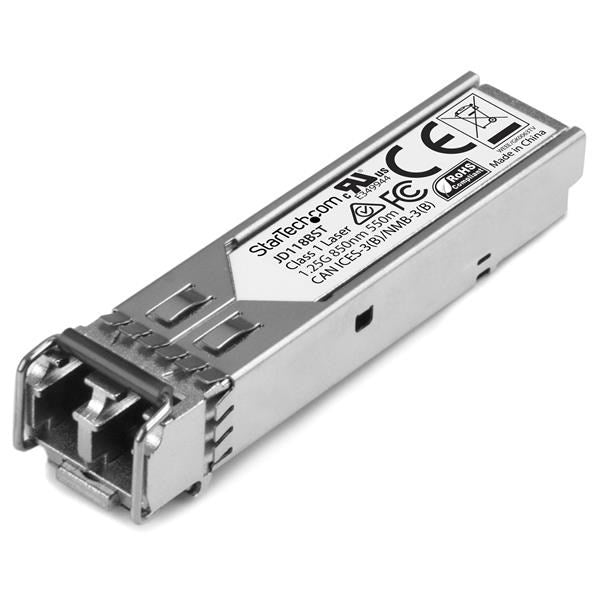

StarTech HPE JD118B Compatible SFP - 1GbE MMF Transceiver - 550m DDM
StarTech HPE JD118B Compatible SFP - 1GbE MMF Transceiver - 550m DDM
Description
• HPE JD118B Compatible SFP 1000BASE-SX (1Gbps) Gigabit Ethernet 850nm Multi Mode (MMF)
• Up to 550m (1804')
• LC Connector DDM
• For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
• Hot-Swappable & MSA Compliant
• Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
• Up to 550m (1804')
• LC Connector DDM
• For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
• Hot-Swappable & MSA Compliant
• Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
$77.95
Sale price
$77.95
BANK TRANSFER (EFT)
$77.95
Sale price
$77.95
Accepted payment methods
Description
• HPE JD118B Compatible SFP 1000BASE-SX (1Gbps) Gigabit Ethernet 850nm Multi Mode (MMF)
• Up to 550m (1804')
• LC Connector DDM
• For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
• Hot-Swappable & MSA Compliant
• Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
View Full Details
• Up to 550m (1804')
• LC Connector DDM
• For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
• Hot-Swappable & MSA Compliant
• Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
The JD118BST is an HP JD118B compatible fiber transceiver module that has been designed, programmed and tested to work with HP® brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft).
Technical Specifications:
- Wavelength: 850 nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550 m (1804 ft)
- MTBF: 3,381,761 hours
- Power Consumption: Less than 1 Watt
- Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
| Performance | |
| Fiber Operating Mode | Full-Duplex |
| Max Transfer Distance | 550 m (1804 ft) |
| Maximum Data Transfer Rate | 1.25 Gbps |
| MTBF | 3,381,761 hours |
| Type | Multi Mode |
| Wavelength | 850nm |
| Physical Characteristics | |
| Color | Silver |
| Enclosure Type | Aluminum |
| Product Height | 12.5 mm [0.5 in] |
| Product Length | 56.6 mm [2.2 in] |
| Product Width | 13.7 mm [0.5 in] |
| Weight of Product | 18 g [0.6 oz] |
| Power | |
| Power Consumption (In Watts) | < 1 W |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com HP JD118B Compatible SFP Module |
| Special Notes / Requirements | |
| Note | For use in Gigabit fiber networking equipment and media converters |
| System and Cable Requirements | MSA or HP compliant SFP port |
| What's in the Box | |
| Included in Package | SFP transceiver |
| Performance | |
| DDM | Yes |
| Compatible Networks | 1000 Mbps (1 Gbps) |
| Packaging Information | |
| Shipping (Package) Weight | 46 g [1.6 oz] |
| Package Width | 118 mm [4.6 in] |
| Package Length | 93 mm [3.7 in] |
| Package Height | 32 mm [1.3 in] |
| Hardware | |
| Industry Standards | IEEE 802.3z 1000BASE-SX |
| Compatible Brand | HP |
| Environmental | |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Humidity | 5~95% RH |
| Connector(s) | |
| Local Unit Connectors | Fiber Optic LC Duplex Female |
850nm Multi Mode (MMF)
Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
Hot-Swappable & MSA Compliant
HPE JD118B Compatible SFP 1000BASE-SX (1Gbps) Gigabit Ethernet
LC Connector DDM
Up to 550m (1804)
Backed by a StarTech.com Lifetime Warranty on the module itself not the life of the OEM switch / router & will not void your OEM warranty
For HPE switches like: 5900 12500 5500 5820 5120 5130 A5800
Hot-Swappable & MSA Compliant
HPE JD118B Compatible SFP 1000BASE-SX (1Gbps) Gigabit Ethernet
LC Connector DDM
Up to 550m (1804)
