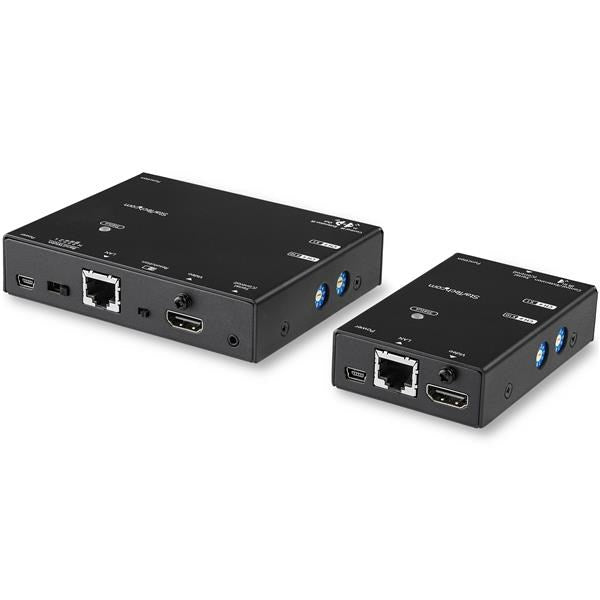

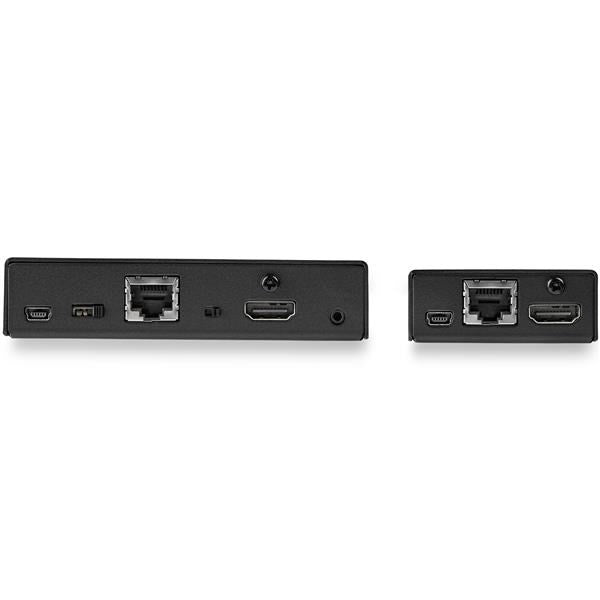

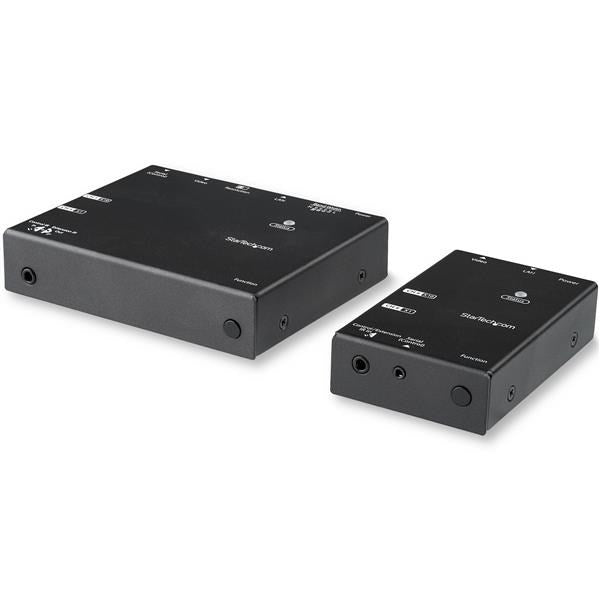

StarTech HDMI over IP Extender with Video Compression - 1080p
StarTech HDMI over IP Extender with Video Compression - 1080p
Description
Use your existing IP network to broadcast your 1080p video content, scalable up to 100 unique transmitters
Engineered for student centers, lobbies, offices or other large viewing areas
Control your broadcast pairings remotely or using a direct connection
Low bandwidth of 6-12 Mbps required per receiver with advanced compression technology
Includes brackets to mount both transmitter (Tx) and receiver (Rx)
Engineered for student centers, lobbies, offices or other large viewing areas
Control your broadcast pairings remotely or using a direct connection
Low bandwidth of 6-12 Mbps required per receiver with advanced compression technology
Includes brackets to mount both transmitter (Tx) and receiver (Rx)
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$788.95
Sale price
$788.95
BANK TRANSFER (EFT)
$788.95
Sale price
$788.95
Accepted payment methods
Description
Use your existing IP network to broadcast your 1080p video content, scalable up to 100 unique transmitters
Engineered for student centers, lobbies, offices or other large viewing areas
Control your broadcast pairings remotely or using a direct connection
Low bandwidth of 6-12 Mbps required per receiver with advanced compression technology
Includes brackets to mount both transmitter (Tx) and receiver (Rx)
View Full Details
Engineered for student centers, lobbies, offices or other large viewing areas
Control your broadcast pairings remotely or using a direct connection
Low bandwidth of 6-12 Mbps required per receiver with advanced compression technology
Includes brackets to mount both transmitter (Tx) and receiver (Rx)
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
Extend and control HDMI video over your existing LAN to create a state-of-the-art network of video displays in a variety of environments where digital signage is required.
|
|
| Ideal for Universities, Offices, and Restaurants |
Reliably Extend Compressed HDMI Video with Bandwidth Efficiency
This extender uses advanced compression to distribute high-quality HDMI video over your network, with minimal bandwidth requirements. With advanced compression technology, broadcasting your video signal requires only 6 - 12 Mbps of local area network bandwidth, when in operation for each kit. Flexible & Scalable Deployment Options The HDMI over LAN extender offers many configurations to accommodate your set up.
.jpg)
.jpg)
.jpg)
This HDMI video extender provides four ways to control your video network configurations.

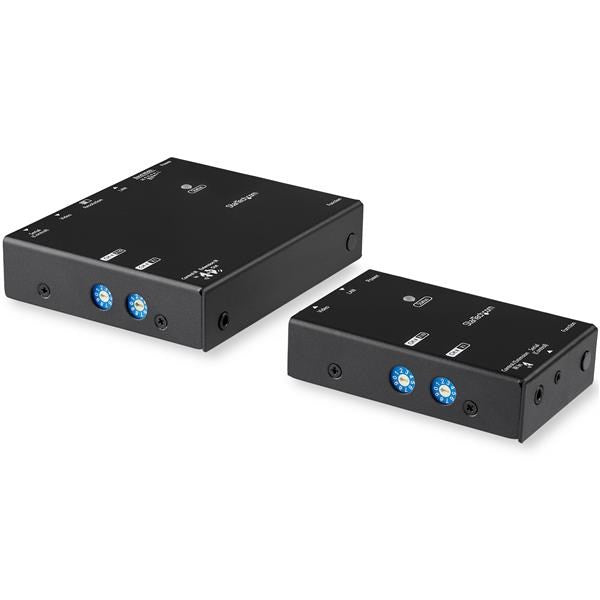

- Rotary DIP switches located on the Tx and Rx
- Your computer connected to the transmitter or receiver via a serial cable
- Over IP using any device equipped with a browser on the same local area network (i.e. tablet, laptop, smartphone)
- Infrared (IR) remote control using the included receiver
Comprehensive Product Testing & Expert Technical Support
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to our customers. Our local StarTech.com Technical Advisors have broad product expertise and work directly with StarTech.com Engineers to provide support for our customers both pre and post-sales.
| Connector(s) | |
| Local Unit Connectors | 3.5 mm Mini-Jack (3 Position) Female |
| HDMI (19 pin) Female Input | |
| Infrared Female | |
| RJ-45 Female Output | |
| Remote Unit Connectors | 2.5 mm Mini-Jack (3 Position) Female |
| HDMI (19 pin) Female Output | |
| Infrared Female | |
| RJ-45 Female Input | |
| Environmental | |
| Humidity | 0% - 80 % |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -10°C to 60°C (14°F to 140°F) |
| Hardware | |
| Audio | Yes |
| Cabling | Cat 5e UTP or better |
| Daisy-Chain | Yes |
| Ports | 1 |
| Rack-Mountable | Yes |
| Indicators | |
| LED Indicators | status LED (receiver) |
| status LED (transmitter) | |
| Packaging Information | |
| Package Height | 24 mm [0.9 in] |
| Package Length | 10.8 cm [4.3 in] |
| Package Width | 92 mm [3.6 in] |
| Shipping (Package) Weight | 1.2 kg [2.7 lb] |
| Performance | |
| Audio Specifications | 2-channel |
| Max Distance | 15 m / 50 ft |
| Maximum Digital Resolutions | 1920 x 1080 (1080p) 60Hz |
| Supported Resolutions | 1920 x 1080 60Hz |
| Wide Screen Supported | Yes |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Aluminum |
| Product Height | 2.8 cm [1.1 in] |
| Product Length | 30.9 cm [12.2 in] |
| Product Width | 17.9 cm [7 in] |
| Weight of Product | 3.2 kg [7.2 lb] |
| Power | |
| Input Current | 0.3 A |
| Input Voltage | 100 - 240 AC |
| Output Current | 1 A |
| Output Voltage | 5 DC |
| Plug Type | USB Mini-B (5 pin) |
| Power Source | AC Adapter Included |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com HDMI Over IP Extender Kit w/ Advanced Compression |
| Special Notes / Requirements | |
| Note | Each kit requires 6 to 12mbps of local area network bandwidth, when in operation |
| Your router must support IGMP snooping. Please refer to your network switch or router documentation to ensure IGMP snooping is supported and enabled | |
| What's in the Box | |
| Included in Package | CAT5 cables |
| DB9 to 2.5 mm serial adapter cable | |
| HDMI over IP receiver | |
| HDMI over IP transmitter | |
| instruction manual | |
| IR blaster | |
| IR receiver | |
| IR remote control | |
| mounting brackets | |
| plastic screwdriver | |
| rubber feet | |
| universal power adapters (NA, EU, UK, ANZ) | |
| USB-A to Mini USB-B cable | |
Control your broadcast pairings remotely or using a direct connection
Engineered for student centers
lobbies
offices or other large viewing areas
Includes brackets to mount both transmitter (Tx) and receiver (Rx)
Low bandwidth of 6-12 Mbps required per receiver with advanced compression technology
Use your existing IP network to broadcast your 1080p video content
scalable up to 100 unique transmitters
Engineered for student centers
lobbies
offices or other large viewing areas
Includes brackets to mount both transmitter (Tx) and receiver (Rx)
Low bandwidth of 6-12 Mbps required per receiver with advanced compression technology
Use your existing IP network to broadcast your 1080p video content
scalable up to 100 unique transmitters
