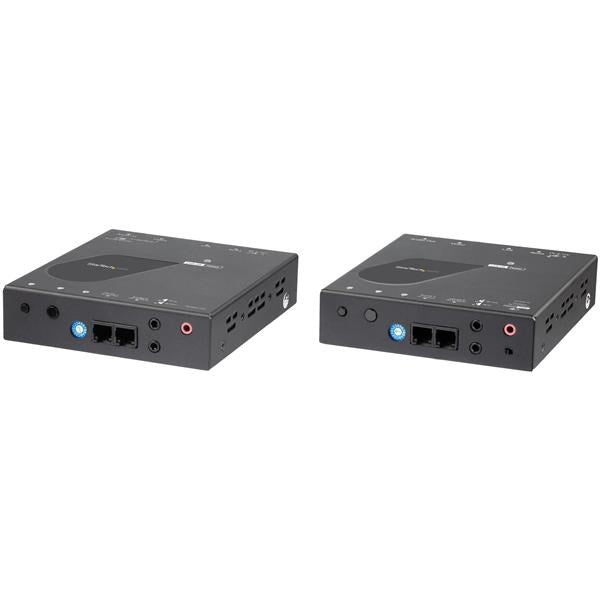

This HDMI over IP extender kit distributes video to a remote location, over your local area network (LAN) and Cat5 or Cat6 Ethernet cabling. By combining this kit with additional receivers (sold separately) and an Ethernet switch (sold separately) you can distribute an HDMI source to multiple locations and create video walls using several remote displays and receivers in the same location.

You can also use multiple transmitters on the same network to distribute different video sources or connect the transmitter directly to a receiver at up to 330 ft. (100 m), in a point-to-point setup. Remote control of serial devices is supported through RS-232 extension.

Resolutions up to 1080p, with Audio With support for video resolutions up to 1080p (1920 x 1080 at 60Hz), the transmitter also supports digital and analog audio to the receiver and analog audio from the receiver to the transmitter.

Mobile Control Through a Free App

The kit includes an easy-to-use online app to manage your IP video distribution. The app is available on iOS for an iPhone or iPad, Android for a smartphone or tablet, and Google Chrome browser for a desktop.

Hassle-Free Installations

The HDMI transmitter/receiver kit includes optional shelf-mounting hardware. It uses Cat5e or Cat6 cables and works with existing network infrastructures, eliminating the expense of running proprietary cables.

ST12MHDLAN2K is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Connector(s)
Local Unit Connectors	3.5 mm Audio Female
	3.5 mm Mini-Jack (3 Position) Female
	HDMI (19 pin)
	RJ-11 Female
	RJ-45
Remote Unit Connectors	3.5 mm Audio Female
	3.5 mm Mini-Jack (3 Position) Female
	HDMI (19 pin)
	RJ-11 Female
	RJ-45
Environmental
Humidity	0% - 80 %
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Hardware
Audio	Yes
Cabling	Cat 5e UTP or better
Daisy-Chain	Yes
Rack-Mountable	Yes
Indicators
LED Indicators	Network Status - Receiver
	Network Status - Transmitter
	Power/Link - Receiver
	Power/Link - Transmitter
Packaging Information
Package Height	75 mm [3 in]
Package Length	36.5 cm [14.4 in]
Package Width	23.5 cm [9.3 in]
Shipping (Package) Weight	2.3 kg [5 lb]
Performance
Audio Specifications	7.1 Channel Surround
Max Distance	100 m / 330 ft
Maximum Digital Resolutions	1920x1080 @60Hz
Supported Resolutions	1920 x 1080 @60Hz 1280 x 720 1680 x 1050 1600 x 900 1440 x 900 1360 x 768 1280 x 800 1280 x 768 Lower resolutions and refresh rates may also be supported
Wide Screen Supported	Yes
Physical Characteristics
Color	Black
Enclosure Type	Aluminum
Product Height	3.1 cm [1.2 in]
Product Length	13.1 cm [5.2 in]
Product Width	11.8 cm [4.6 in]
Weight of Product	1.2 kg [2.6 lb]
Power
Center Tip Polarity	Positive
Input Current	0.6 A
Input Voltage	100 - 240 AC
Output Current	1.5 A
Output Voltage	12 DC
Plug Type	M
Power Consumption (In Watts)	10
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com HDMI over IP Extender Kit with Video Wall Support - 1080p
What's in the Box
Included in Package	CAT5 Cable
	Foot Pads
	Hardware Kit
	HDMI Receiver
	HDMI Transmitter
	IR Blaster
	IR Receiver
	RJ-11 Cables
	RJ-11 to RS-232 Adapters
	Universal Power Adapters (NA/JP, EU, UK, ANZ)
	User Manual

HDMI over Cat5 / Cat6 extender lets you design video walls using single or multiple video sources with multiple receivers
HDMI over Ethernet extender comes with a mobile app that lets you manage and control digital signage
HDMI over IP extender kit extends your HDMI signal and RS232 control to one or multiple displays
HDMI transmitter and receiver kit includes shelf-mounting hardware
Point-to-Point / Point-to-Multipoint / Multipoint-to- Multipoint
Supports video resolutions up to 1080p
