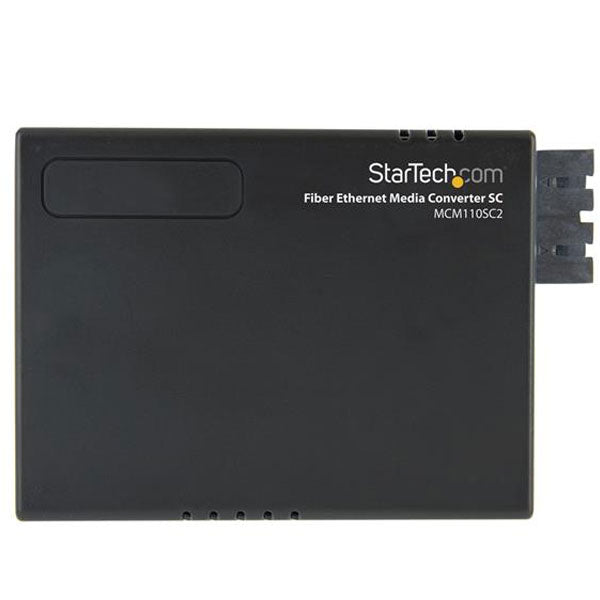

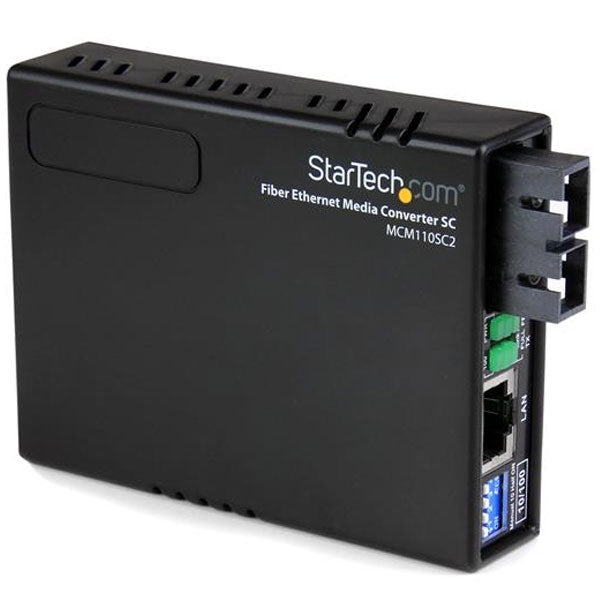

StarTech Fiber to Ethernet Media Converter SC
Description
• StarTech 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km Compact design
• Supports Link Fault Pass through (LFP)
• LED Indicators
• Simple installation
• Supports Link Fault Pass through (LFP)
• LED Indicators
• Simple installation
$129.95
Sale price
$129.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$129.95
Sale price
$129.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
• StarTech 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km Compact design
• Supports Link Fault Pass through (LFP)
• LED Indicators
• Simple installation
View Full Details
• Supports Link Fault Pass through (LFP)
• LED Indicators
• Simple installation
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.
The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

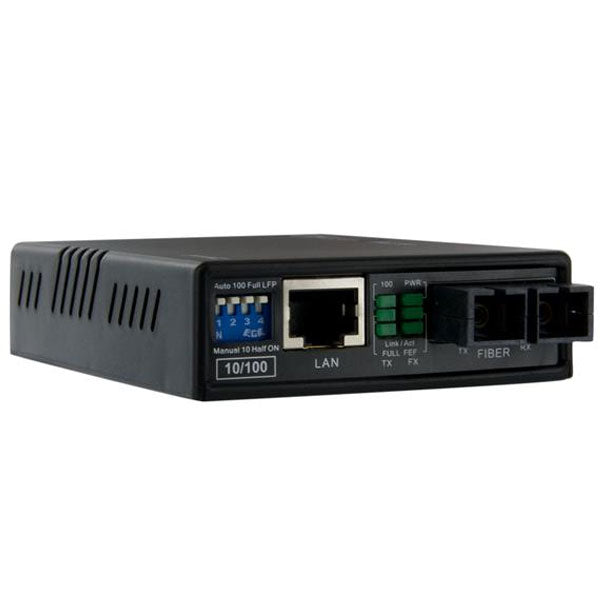

| Indicators | |
| LED Indicators | Fiber Link & Activity (On - Fiber Link OK, Blinking - Activity on Fiber Link) |
| FEF [Far End Fault](On - Fault Detected, Off - No Fault | |
| Ethernet Link & Activity (ON - Ethernet Link OK, Blinking - Activity on Ethernet Link) | |
| Hardware | |
| WDM | No |
| PoE | No |
| Industry Standards | IEEE 802.3u 100BASE-TX |
| IEEE 802.3u 100BASE-FX | |
| IEEE 802.3 10BASE-T | |
| Environmental | |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Humidity | 10~90% RH |
| Connector(s) | |
| Remote Unit Connectors | Fiber Optic SC Duplex Female |
| Local Unit Connectors | RJ-45 Female |
| Indicators | |
| LED Indicators | Full ( Full duplex / Half duplex) |
| Physical Characteristics | |
| Product Length | 95 mm [3.7 in] |
| Product Weight | 90.5 g [3.2 oz] |
| Product Width | 75 mm [3 in] |

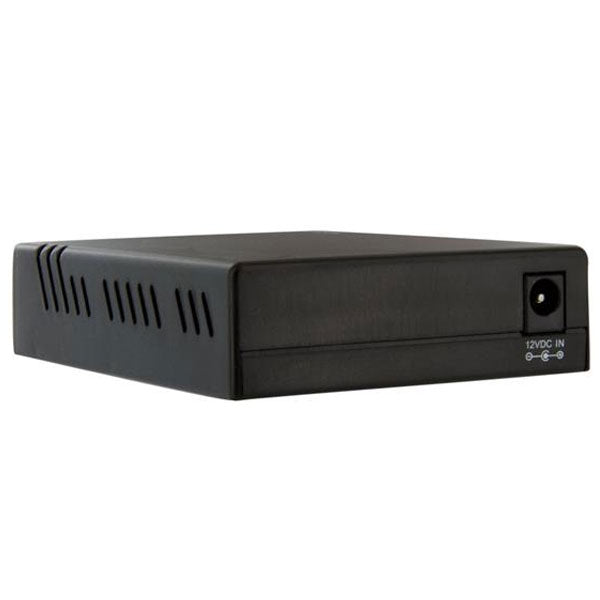

| Power | |
| Center Tip Polarity | Positive |
| Input Voltage | 115V AC |
| Output Current | 0.2A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 2.4 |
| Power Source | AC Adapter Included |

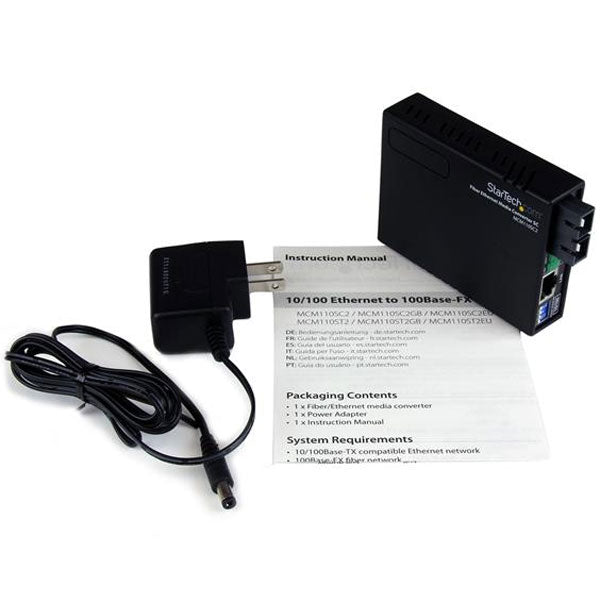

| What's in the Box | |
| Included in Package | Media Converter |
| Power Adapter | |
| User's Manual | |
| Indicators | |
| LED Indicators | Power |
| Speed (Off - 10Mbps, On - 100 Mbps) | |
| Packaging Information | |
| Shipping (Package) Weight | 0.4 kg [0.9 lb] |
| Performance | |
| Fiber Operating Mode | Half/Full-Duplex |
| Fiber Type | Multi Mode |
| Max Transfer Distance | 2 km (1.2 mi) |
| Maximum Data Transfer Rate | 10/100Mbps |
| MTBF | 65,000 Hours |
| Wavelength | 1310nm |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 20 mm [0.8 in] |
Compact design
LED Indicators
Simple installation
StarTech 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Supports Link Fault Pass through (LFP)
LED Indicators
Simple installation
StarTech 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
Supports Link Fault Pass through (LFP)
