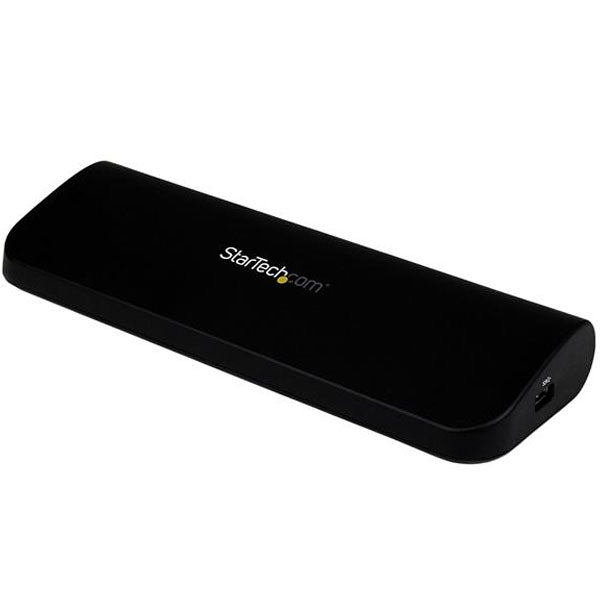

The USB3SDOCKHDV Dual Video Universal USB 3.0 Laptop Docking Station with Audio and Ethernet is TAA-compliant and adds dual HD video outputs, as well as audio and Gigabit Ethernet connections to any notebook or Ultrabook™ computer through a single USB 3.0 connection.

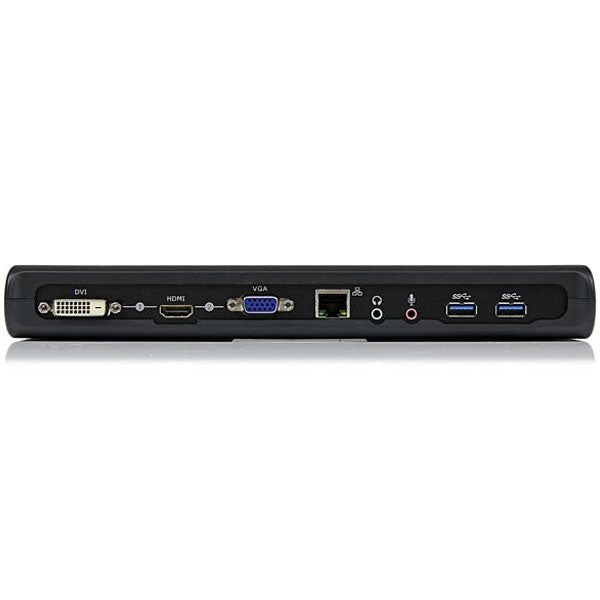

This versatile USB 3.0 docking station features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand or mirror your desktop. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.

An all-in-one mobile solution, the universal docking station combines a USB 3.0 hub (backward compatible with USB 2.0/1.1), Gigabit Ethernet RJ45 and headphone and microphone audio connectors into a single universal port replicator, perfect for enhancing laptop connectivity.

With a range of convenient connections, the dock is ideal for hoteling in shared workspaces, and for hot desks.

Plus, unlike some proprietary docking stations designed only to work with specific laptop models, this universal laptop dock works with multiple brands. All you need is your laptop’s USB 3.0 port and you can be up and running quickly. With universal support, you can use this dock with different laptops now, or in the future.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.

Connector(s)
Connector Type(s)	3.5 mm Mini-Jack (3 Position) Female
	DVI-D (25 pin) Female
	HDMI (19 pin) Female
	RJ-45 Female
	USB Type-A (9 pin) USB 3.0 Female
	USB Type-B (9 pin) USB 3.0 Female
	VGA (15 pin, High Density D-Sub) Female
Environmental
Humidity	0~90% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-10°C to 60°C (14°F to 140°F)
Hardware
4K Support	No
Bus Type	USB 3.0
Chipset ID	DisplayLink - DL-3900 Genesys Logic - GL3520 Realtek - RTL8211E
Displays Supported	2
Fast-Charge Port(s)	No
Industry Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0
Packaging Information
Shipping (Package) Weight	760 g [26.8 oz]
Performance
Audio Specifications	The HDMI port supports audio output
Auto MDIX	Yes
Compatible Networks	10/100/1000 Mbps
Full Duplex Support	Yes
Maximum Analog Resolutions	2048x1152 (VGA)
Maximum Data Transfer Rate	5 Gbps (USB 3.0) 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions	1920x1200 (DVI-D) 1920x1080 (HDMI)
Type and Rate	USB 3.0 - 5 Gbit/s
Physical Characteristics
Cable Length	0.9 m [3 ft]
Color	Black
Enclosure Type	Plastic
Product Height	44 mm [1.7 in]
Product Length	304 mm [12 in]
Product Weight	289 g [10.2 oz]
Product Width	178 mm [7 in]

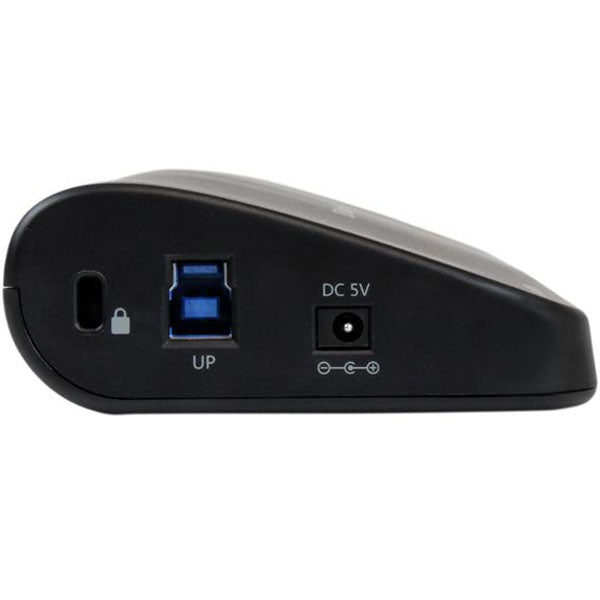

Power
Center Tip Polarity	Positive
Input Current	0.9 A
Input Voltage	100 ~ 240 AC
Output Current	4 A
Output Voltage	5 DC
Plug Type	B
Power Consumption (In Watts)	20
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com Dual Monitor USB 3.0 Dock Windows / macOS - HDMI / DVI / VGA
Software
OS Compatibility	Windows® XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 Mac OS® 10.6 to 10.13.3
Special Notes / Requirements
Note	Extended displays are currently only supported with DisplayLink-based products on macOS 10.11 to 10.13.3. This may change in future versions.
System and Cable Requirements	Available AC electrical outlet
	HDMI (and either DVI-D or VGA if dual display is desired) enabled display device(s) e.g. monitor, projector, HTDV, etc. with cables
	USB 3.0 enabled computer system with available USB 3.0 port

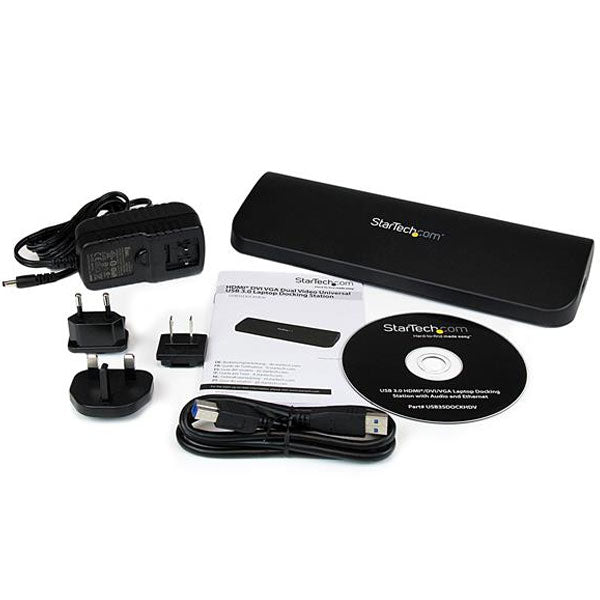

What's in the Box
Included in Package	0.9m USB 3.0 Cable
	Docking Station
	Installation CD
	Instruction Manual
	Universal Power Adapter (NA/EU/UK/AU)

10 / 100 / 1000 Mbps compatible RJ45 Ethernet port built into the dock USB docking station
Display combinations available: HDMI + DVI or HDMI + VGA
Dual monitor docking station creates a multi-monitor setup

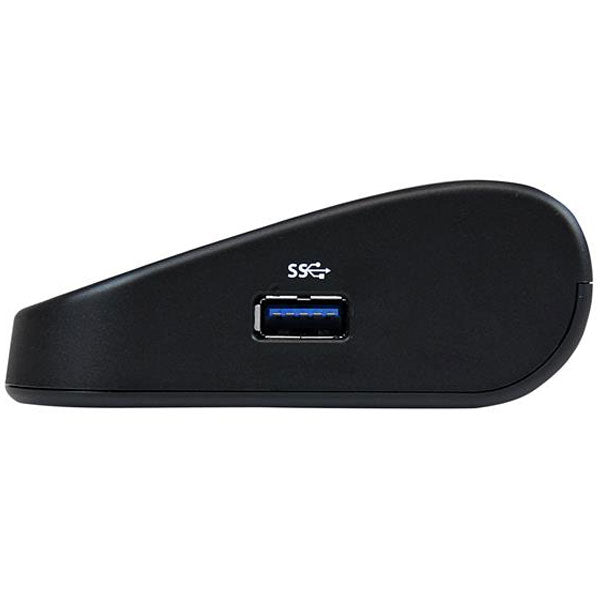

Integrated 3-port USB 3.0 hub
Universal laptop docking station with HDMI works with virtually any USB 3.0 laptop
USB 3.0 dock supports data transfer rates up to 5Gbps
USB 3.0 port replicator adds the ports you need
