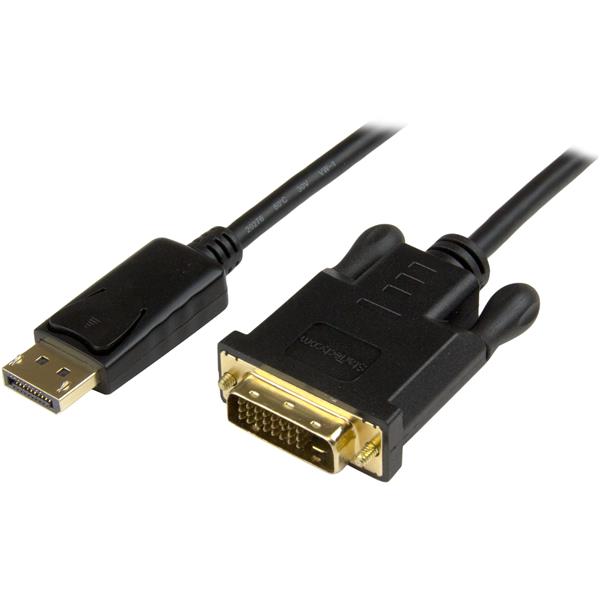

This 3-foot DisplayPort™ to DVI-D adapter cable lets you connect your DisplayPort (DP) equipped Ultrabook™, laptop or desktop computer to a DVI monitor or projector with no additional adapters or cables required. The passive adapter supports video resolutions up to 1920x1200 (WUXGA), perfect for high-resolution applications.

Hassle-free setup

For the simplest and most discreet installation, this DP to DVI-D adapter connects directly from your DisplayPort video source to the DVI port on your display. It doesn't need a power source, unlike some converter dongles that require active power and separate bulky video cabling.

Continue using your existing DVI display

With this DP to DVI cable, you can bridge the gap between old and new technologies by converting your existing DVI display to work with your DP video source.

Upgrading every component in your A/V setup can be costly and time consuming. This cost-effective adapter lets you save the expense and hassle of buying a new display, by ensuring your existing DVI display will work with your DisplayPort equipment.

Clutter-free installation

This 3 ft. adapter cable delivers a compact connection that eliminates excess to ensure a tidy, professional installation. For longer installations, we also offer a 6 ft DP to DVI cable (DP2DVIMM6), enabling you to choose the right cable length for your custom installation needs.

The DP2DVI2MM3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.

Connector(s)

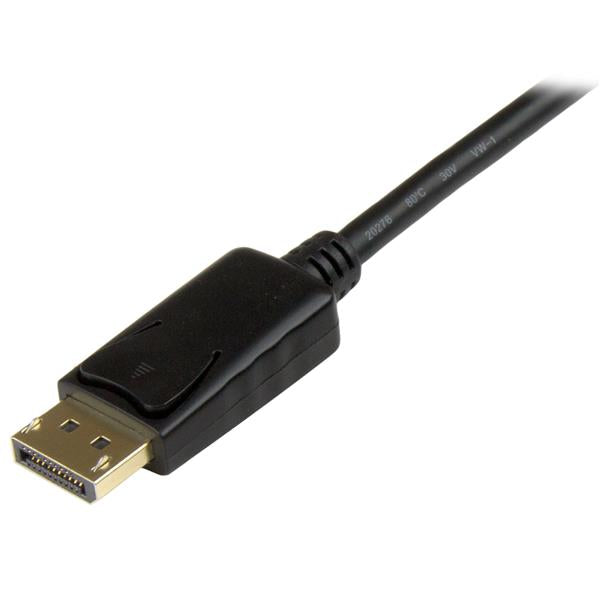

Connector A	DisplayPort (20 pin) Male Input

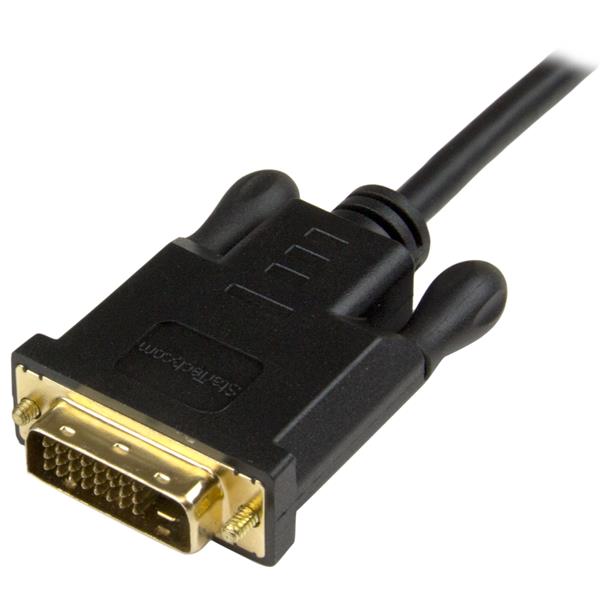

Connector B	DVI-D (25 pin) Male Output
Environmental
Humidity	20~80% RH
Operating Temperature	5°C to 35°C (41°F to 95°F)
Storage Temperature	0°C to 70°C (32°F to 158°F)
Hardware
Active or Passive Adapter	Passive
Adapter Style	Cable Adapters
Audio	No
Cable Jacket Type	PVC - Polyvinyl Chloride
Connector Plating	Gold
Packaging Information
Shipping (Package) Weight	60 g [2.1 oz]
Performance
Maximum Digital Resolutions	1920x1200 / 1080p
Physical Characteristics
Cable Length	914 mm [36 in]
Color	Black
Product Length	914 mm [36 in]
Product Weight	34.8 g [1.2 oz]
Special Notes / Requirements
System and Cable Requirements	DP++ (DisplayPort++) port is required on video card or video source for DVI and HDMI pass-through.
What's in the Box
Included in Package	DisplayPort™ to DVI adapter cable – 3ft (1m)

Avoid the hassle of converters using a short cable
Compatible with DisplayPort computers like HP EliteBook 840 & HP Zbook 15 and DVI monitors & projectors
DisplayPort to DVI adapter / DisplayPort to DVI cable / DP to DVI converter / DP to DVI adapter
Easy to use cable
no software required
Eliminate clutter by connecting your PC directly to the monitor using this short adapter cable
Reduce clutter at your workspace with an adapter cable
Supports resolutions up to 1920x1200
