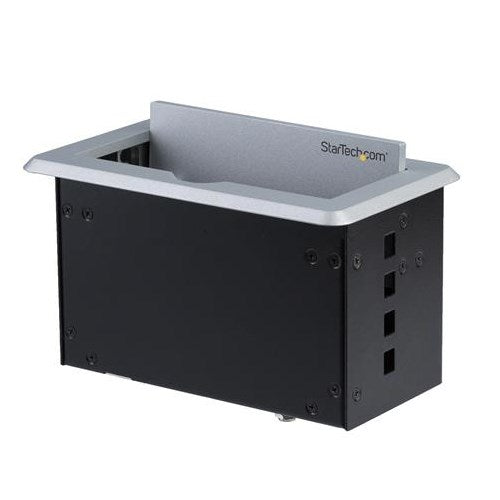

This conference table connectivity box for A/V installs in your table or lectern to provide A/V, networking, and USB charging connectivity in your boardroom, auditorium, or classroom. The box makes it easy to connect HDMI, DisplayPort and VGA laptops to your room’s large HDMI display, and provides LAN and USB power connectivity for charging USB devices. The box also provides some boardroom cable management by hiding connectivity cables in your table.

Collaborate Easily Using the Big Screen

The table box enables presenters in your conference room to easily share their laptop screen on the room’s large display or projector, with supported resolutions up to 4K 30Hz.

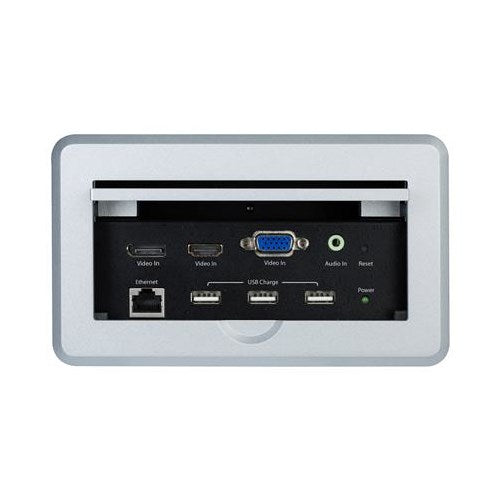

To share video from virtually any laptop, the table box supports HDMI, VGA and DisplayPort inputs and automatically outputs the most recently connected input to the HDMI display.

Provide Convenient USB Charging and Wired Network Connectivity

Enabling visitors in your conference room to charge their iPhone, iPad, smartphone, or tablet, the table box features three USB charge ports. Plus, the box features an Ethernet pass-through port to provide secure wired network connectivity in rooms where Wi-Fi® isn’t available.

Add Style and Technological Sophistication to Any Room

The boardroom interconnect box has an aluminum finish that complements your space. The hideaway panel eliminates clutter by discreetly covering the connection ports when they’re not in use.

TAA compliant BOX4HDECP2 is backed by a 2-year warranty and free lifetime technical support.

Connector(s)
Connector A	3.5 mm Mini-Jack (3 Position) Female Input
	DisplayPort (20 pin) Female Input
	HDMI (19 pin) Female Input
	RJ-45 Female
	USB Type-A (4 pin) USB 2.0 Female
	VGA (15 pin, High Density D-Sub) Female Input

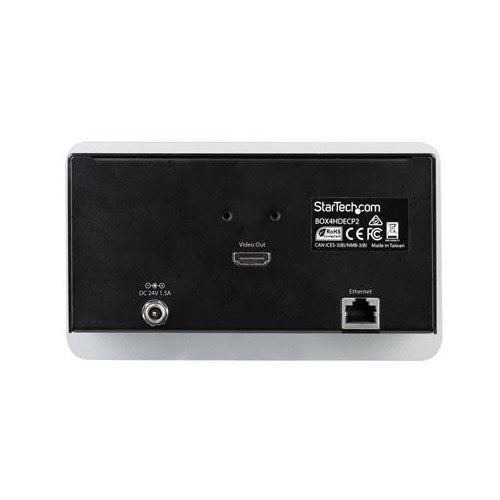

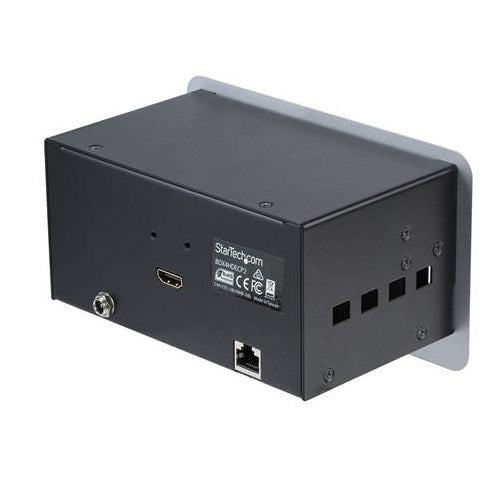

Connector B	HDMI (19 pin) Female Output
	RJ-45 Female
Environmental
Humidity	10% to 85% (non-condensing)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
Active or Passive Adapter	Active
	Passive
Audio	Yes
AV Input	3.5 mm Audio
	DisplayPort
	HDMI
	VGA
AV Output	HDMI
USB Pass-Through	No
Packaging Information
Package Height	100 mm [3.9 in]
Package Length	155 mm [6.1 in]
Package Width	75 mm [3 in]
Shipping (Package) Weight	0.2 kg [0.4 lb]
Performance
Aspect Ratio	16:9
Maximum Analog Resolutions	1920 x 1200 60Hz
Maximum Cable Length	15.2 m [50 ft]
Maximum Digital Resolutions	3840x2160 (4K) 30Hz
Supported Resolutions	3840x2160 (4K) 30Hz (HDMI and DP Inputs Only) 2560x1600 60Hz (HDMI and DP Inputs Only) 1920x1200 60Hz (Maximum VGA Input) 1920x1080 (1080p) 60Hz 1280x720 (720p) 60Hz **Lower resolutions and refresh rates, not stated but below the maximum, may also be supported
Video Revision	DisplayPort 1.2
	HDMI 1.4
Wide Screen Supported	Yes
Physical Characteristics
Color	Silver
Product Height	185 mm [7.3 in]
Product Length	170 mm [6.7 in]
Product Width	155 mm [6.1 in]
Weight of Product	1.7 kg [3.8 lb]
Power
Input Voltage	100 ~ 240 AC
Output Current	2A
Output Voltage	12 DC
Plug Type	N
Power Consumption (In Watts)	24
Power Source	AC Adapter Included
Prominence
Description CDW 75 - 1st Line	StarTech.com Conference Table Connectivity Box for A/V - 4K
Special Notes / Requirements
Note	VGA (Input) to HDMI (Output) - HDMI Output Port is Active DisplayPort (Input) to HDMI (Output) - HDMI Output Port is Active HDMI (Input) to HDMI (Output) - HDMI Output Port is Passive
What's in the Box
Included in Package	cable tie bracket
	cable tie bracket screws
	conference table box
	die cut outline
	mounting brackets
	quick-start guide
	universal power adapter (NA/JP, EU, UK, ANZ)
