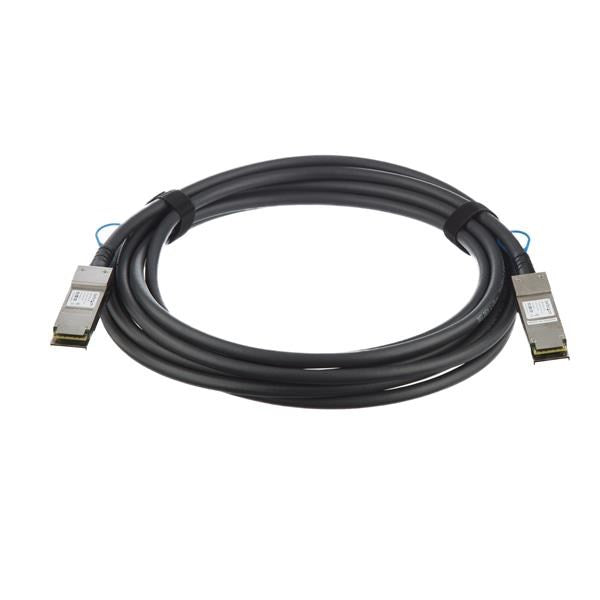

StarTech Cisco QSFP-H40G-CU5M Compatible 5m 40GbE QSFP+ DAC Twinax
StarTech Cisco QSFP-H40G-CU5M Compatible 5m 40GbE QSFP+ DAC Twinax
Description
• 100% Cisco QSFP-H40G-CU5M compatible 40G direct attached cable 5m/16.4' Cable | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket
• 40GbE Low Power Transceiver Module DAC for edge networks / server rooms / data centers
• For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L
• Hot-Swappable & MSA Compliant
• StarTech.com Lifetime Warranty & will not void your OEM warranty
• 40GbE Low Power Transceiver Module DAC for edge networks / server rooms / data centers
• For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L
• Hot-Swappable & MSA Compliant
• StarTech.com Lifetime Warranty & will not void your OEM warranty
$71.95
Sale price
$71.95
BANK TRANSFER (EFT)
$71.95
Sale price
$71.95
Accepted payment methods
Description
• 100% Cisco QSFP-H40G-CU5M compatible 40G direct attached cable 5m/16.4' Cable | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket
• 40GbE Low Power Transceiver Module DAC for edge networks / server rooms / data centers
• For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L
• Hot-Swappable & MSA Compliant
• StarTech.com Lifetime Warranty & will not void your OEM warranty
View Full Details
• 40GbE Low Power Transceiver Module DAC for edge networks / server rooms / data centers
• For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L
• Hot-Swappable & MSA Compliant
• StarTech.com Lifetime Warranty & will not void your OEM warranty
The QSFPH40GCU5M is a Cisco QSFP-H40G-CU5M compatible direct-attach copper QSFP+ cable that’s designed, programmed and tested to work with Cisco® brand compatible switches and routers and complies with MSA industry standards.
This passive Twinax copper cable supports 40 Gigabit Ethernet applications connected through QSFP+ (Mini-GBIC) ports. This copper QSFP+ cable is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
Designed for high-speed performance, this low-power, low-latency QSFP+ cable is a cost-effective alternative to fiber-optic cable assemblies, supporting short-distance applications such as point-to-point in-rack network switch or server connections.
StarTech.com SFP Cables
All StarTech.com SFP & SFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
| Cable Type | Passive Copper Cable |
| Connector(s) | |
| Connector A | QSFP+ Plug Latching |
| Connector B | QSFP+ Plug Latching |
| Environmental | |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -40°C to 80°C (-40°F to 158°F) |
| Hardware | |
| Cable Jacket Type | PVC - Polyvinyl Chloride |
| Compatible Brand | Cisco |
| Packaging Information | |
| Package Height | 25 mm [1 in] |
| Package Length | 31.7 cm [12.5 in] |
| Package Width | 25 cm [9.8 in] |
| Shipping (Package) Weight | 458 g [16.2 oz] |
| Performance | |
| Compatible Networks | 40 Gbps |
| Impedance | 100 Ohm |
| Maximum Data Transfer Rate | 40Gbps |
| Physical Characteristics | |
| Cable Length | 5 m [16.4 ft] |
| Color | Black |
| Product Height | 1.3 cm [0.5 in] |
| Product Length | 5 m [16.4 ft] |
| Product Width | 18 mm [0.7 in] |
| Weight of Product | 451 g [15.9 oz] |
| Wire Gauge | 28 AWG |
| Power | |
| Power Consumption (In Watts) | < 0.1 W (per end) |
| Prominence | |
| Description CDW 75 - 1st Line | StarTech.com Cisco QSFP-H40G-CU5M Comp SFP+ Twinax Cable - 5 m (16.4') |
| What's in the Box | |
| Included in Package | QSFP+ cable |
100% Cisco QSFP-H40G-CU5M compatible 40G direct attached cable
40GbE Low Power Transceiver Module DAC for edge networks / server rooms / data centers
5m/16.4 Cable | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket
For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L
Hot-Swappable & MSA Compliant
StarTech.com Lifetime Warranty & will not void your OEM warranty
40GbE Low Power Transceiver Module DAC for edge networks / server rooms / data centers
5m/16.4 Cable | 40 Gbps | Passive Twinax (Copper) | 2x QSFP+ Pluggable Connector | 100 Ohm Impedance | 30 AWG | PVC Jacket
For Cisco switches C9300 | C9200 | C9400 | C9500 | C9600 | C9300L
Hot-Swappable & MSA Compliant
StarTech.com Lifetime Warranty & will not void your OEM warranty
