StarTech 8 Port USB to Serial Adapter Hub - with Daisy Chain

SKU AC12318 Model# ICUSB23208FD
StarTech 8 Port USB to Serial Adapter Hub - with Daisy Chain(ICUSB23208FD) - 1

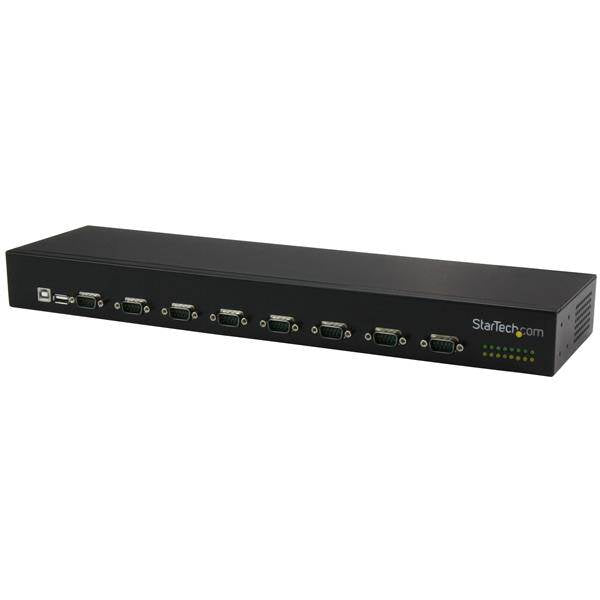

StarTech 8 Port USB to Serial Adapter Hub - with Daisy Chain

Description
SKU AC12318 Model# ICUSB23208FD
• StarTech 8 Port USB to Serial Adapter Hub with Daisy Chain
• Gain eight RS232 serial port interfaces through a single USB port
• Connect multiple hubs together through daisy chain functionality
• 921.6Kbps baud rate per port
• Rack-mountable design with durable all-metal chassis
• 256-byte transmit, 128-byte receive FIFO
• COM port retention
• ICUSB23208FD
• 2 Years Limited Warranty
View full item details
$530.69
Sale price  $530.69
Sold out
Awaiting stock
Payment plan Payment plan Payment plan
Payment plan
Payment plan Payment plan Payment plan
Payment plan
Bank Transfer

BANK TRANSFER (EFT)

Help icon

Need help? Ask our team

Email
Promotional banner
$530.69
Sale price  $530.69
Awaiting stock

Accepted payment methods

  • Visa
  • Mastercard
  • American Express
  • PayPal
  • UnionPay
  • Alipay
  • WeChat Pay
  • LatitudePay
Help icon

Need help? Ask our team

Email
Description
• StarTech 8 Port USB to Serial Adapter Hub with Daisy Chain
• Gain eight RS232 serial port interfaces through a single USB port
• Connect multiple hubs together through daisy chain functionality
• 921.6Kbps baud rate per port
• Rack-mountable design with durable all-metal chassis
• 256-byte transmit, 128-byte receive FIFO
• COM port retention
• ICUSB23208FD
• 2 Years Limited Warranty
View Full Details

Frequently bought with

This 8-port USB-to-serial adapter hub provides an easy and cost-efficient way to add RS232 serial capability to your industrial setting. It features a sturdy, rack-mountable chassis, and supports daisy chaining, so you can connect multiple hubs together to increase your serial device port count.

A scalable solution for changing needs

This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.

Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.

Built-in convenience

The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.

The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.

Meets the demands of industrial environments

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.

The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Packaging Information
Shipping (Package) Weight 2100 g [74.1 oz]
Performance
Data Bits 7, 8
FIFO 256 Bytes
Max Baud Rate 921.6 Kbps
Maximum Data Transfer Rate 480 Mbps
Parity Odd, Even, Mark, Space, None
Serial Protocol RS-232
Stop Bits 1, 2
Physical Characteristics
Cable Length 900 mm [35.4 in]
Color Black
Enclosure Type Aluminum
Product Height 45 mm [1.8 in]
Product Length 430 mm [16.9 in]
Product Weight 1365 g [48.2 oz]
Product Width 120 mm [4.7 in]
Power
Center Tip Polarity Positive
Input Current 1.5 A
Input Voltage 100 ~ 240 AC
Output Current 3 A
Output Voltage 12 DC
Plug Type B
Power Consumption (In Watts) 36
Software
OS Compatibility Windows® CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.13
Linux 2.4.x to 4.9.x LTS Versions only

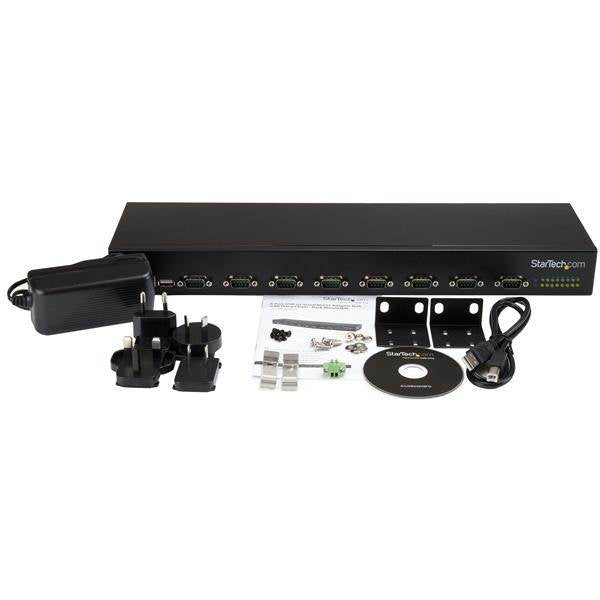

What's in the Box
Included in Package 18 in. [46 mm] USB 2.0 cable
8-port USB to RS232 hub
DIN-rail mounting brackets
DIN-rail mounting screws
driver CD
nuts
quick-start guide
rack-mounting brackets
rack-mounting screws
Indicators
LED Indicators Data Transmit
Data Receive
Hardware
Ports 8
Port Style External Hub
Interface Serial
Chipset ID FTDI - FT4232
Bus Type USB 2.0
Environmental
Storage Temperature -65°C to 150°C (-85°F to 302°F)
Operating Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 20~80% RH (Non-condensing)
Connector(s)
Connector Type(s) USB B (4 pin) Female
DB-9 (9 pin, D-Sub) Male
What's in the Box
Included in Package terminal block plug
universal power adapter (NA/JP, UK, EU, ANZ)
washers
2 Years Limited Warranty
256-byte transmit
128-byte receive FIFO
921.6Kbps baud rate per port
COM port retention
Connect multiple hubs together through daisy chain functionality
Gain eight RS232 serial port interfaces through a single USB port
ICUSB23208FD
Rack-mountable design with durable all-metal chassis
StarTech 8 Port USB to Serial Adapter Hub
with Daisy Chain
