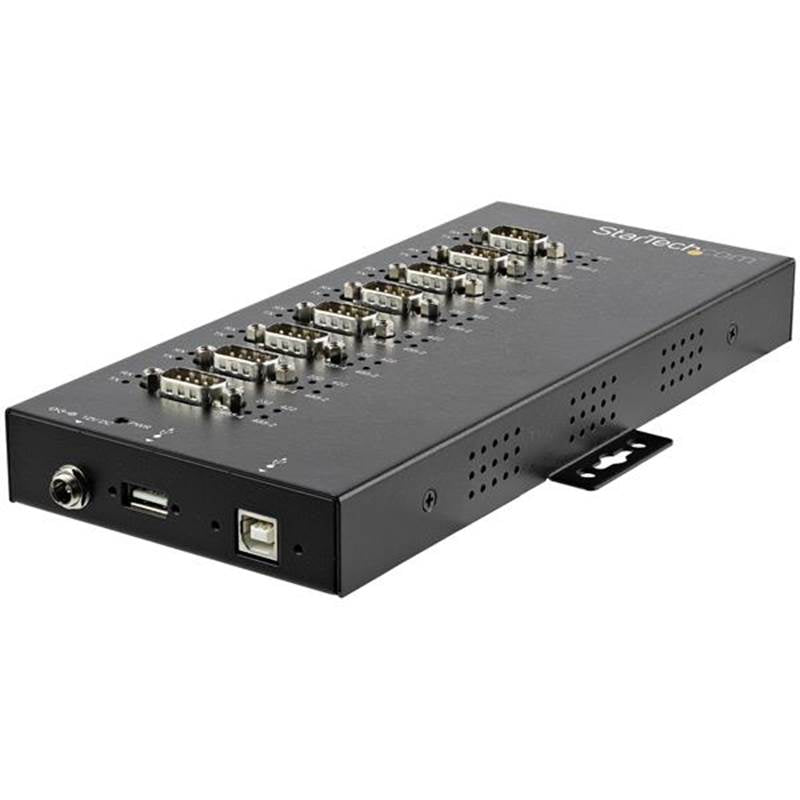

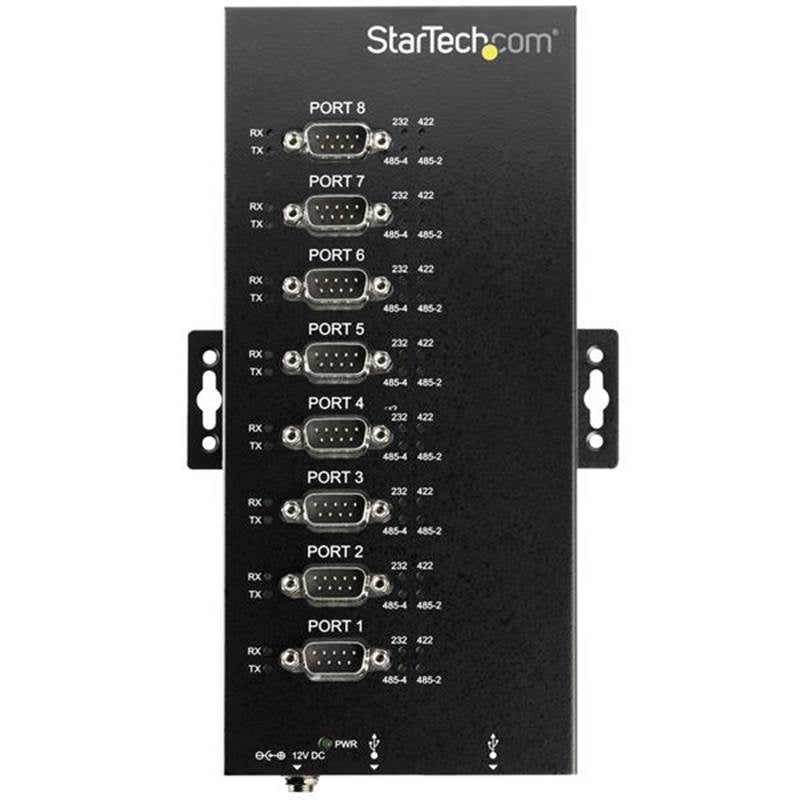

StarTech 8 Port Serial Hub Adapter USB to RS232/RS485/RS422 Converter
StarTech 8 Port Serial Hub Adapter USB to RS232/RS485/RS422 Converter
Description
• Rugged industrial sub to serial converter w/ 15kV ESD surge protection (level 4) IP30 rating and locking connectors (all ports) Each port on the metal 8 port serial hub can be set to RS232/RS422/RS485(2wire/4wire) at baud rates up to 921.6Kbps
• Desk/wall/DIN rail mountable
• Incl. 6' locking USB cable
• Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V
• Supports current/legacy Windows/Linux/macOS + embedded platform
• Desk/wall/DIN rail mountable
• Incl. 6' locking USB cable
• Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V
• Supports current/legacy Windows/Linux/macOS + embedded platform
$792.91
Sale price
$792.91
In stock at Mwave
Dispatch or pick up within 24 hours
BANK TRANSFER (EFT)
$792.91
Sale price
$792.91
In stock at Mwave
Dispatch or pick up within 24 hours
Accepted payment methods
Description
• Rugged industrial sub to serial converter w/ 15kV ESD surge protection (level 4) IP30 rating and locking connectors (all ports) Each port on the metal 8 port serial hub can be set to RS232/RS422/RS485(2wire/4wire) at baud rates up to 921.6Kbps
• Desk/wall/DIN rail mountable
• Incl. 6' locking USB cable
• Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V
• Supports current/legacy Windows/Linux/macOS + embedded platform
View Full Details
• Desk/wall/DIN rail mountable
• Incl. 6' locking USB cable
• Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V
• Supports current/legacy Windows/Linux/macOS + embedded platform
Add extra COM ports to your laptop or desktop computer, quickly and easily. This USB to RS232/422/485 serial adapter lets you connect to your serial devices through an external USB port.
Supports multiple serial protocols
The versatile serial adapter converts a single USB port into eight RS232/RS422/RS485 serial ports, enabling you to connect, monitor, and control a wide range of serial devices, such as sensors, barcode scanners, and LED signage. It supports four operating modes, including RS232, RS422, 4-wire and 2-wire RS485.
Ideal for harsh environments
With its rugged IP30-rated metal hub housing, the serial adapter is built to meet the extreme demands of harsh and mission-critical environments. It provides 15 kV ESD protection, which helps to reduce downtime in industrial environments where communications lines are more prone to noise emissions or sudden spikes in voltage.

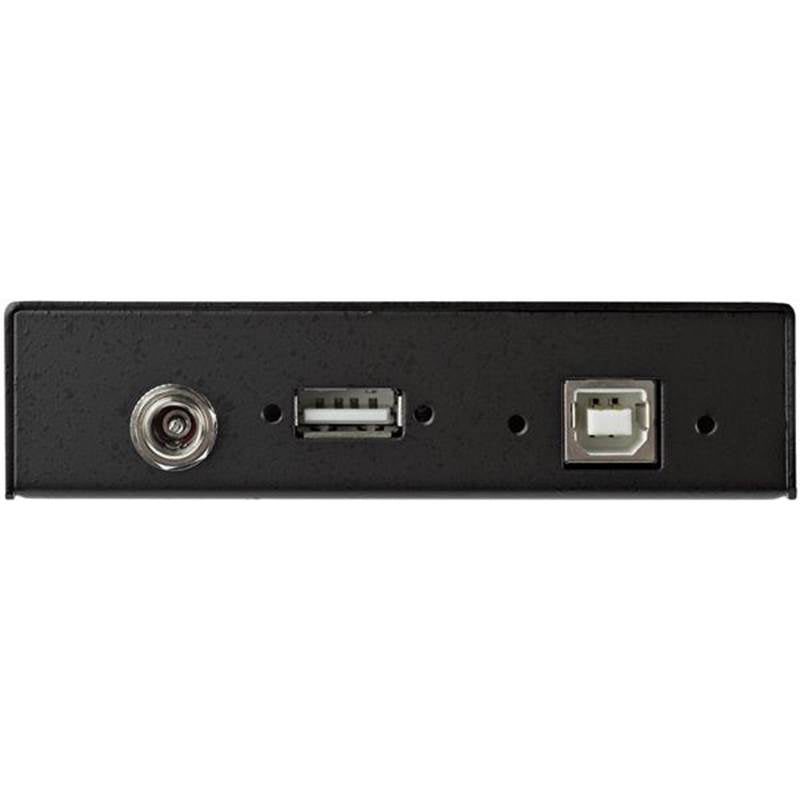

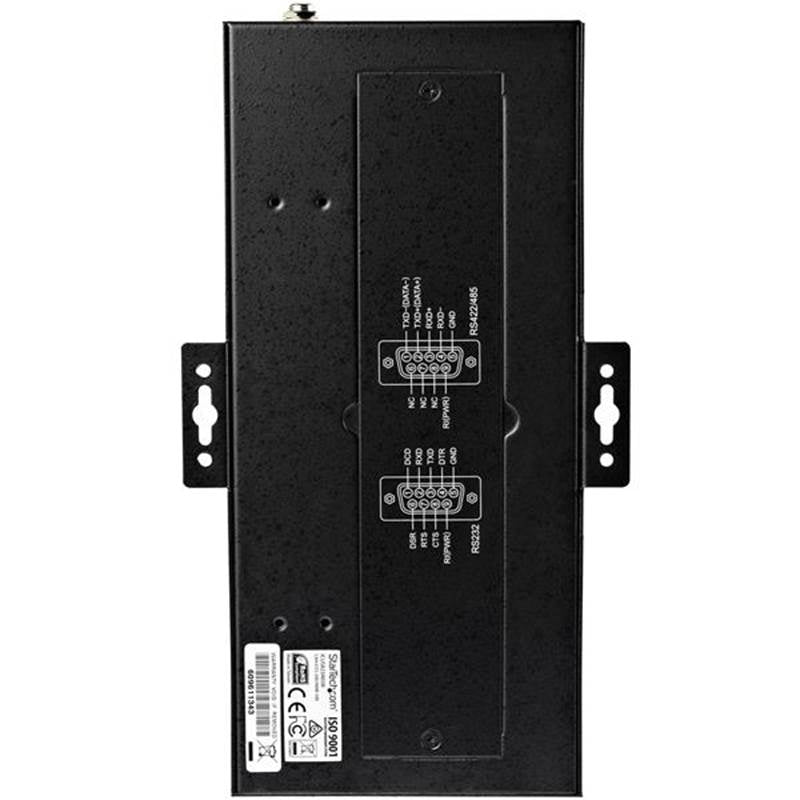

The serial adapter offers flexible mounting options, with a built-in wall-mounting bracket and included DIN rail mounting kit. It also features a screw-locking host connection plus a screw-locking USB-B connector on the included USB cable, to prevent accidental disconnections.
Fast data transfers
The serial adapter is equipped with high-speed UARTs, providing fast data rates of up to 921Kbps in RS232/422/485 operating modes.
The ICUSB234858I is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| External Ports | DB-9 (9 pin, D-Sub) Male |
| USB Type-A (4 pin) USB 2.0 Female | |
| USB Type-B (4 pin) USB 2.0 Female | |
| Environmental | |
| Humidity | 5~95% RH |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| Hardware | |
| Bus Type | USB 2.0 |
| Chipset ID | FTDI - FT4232H Genesys Logic - GL825 |
| Interface | Serial |
| Port Style | External Hub |
| Ports | 8 |
| Indicators | |
| LED Indicators | Port receive |
| Port send | |
| Power | |
| Sets of 4 - port mode | |
| Packaging Information | |
| Shipping (Package) Weight | 1.6 kg [3.4 lb] |
| Performance | |
| Buffer Size | 2 KB |
| Data Bits | 7, 8 |
| Max Baud Rate | 921.6 Kbps |
| Maximum Data Transfer Rate | 921.6 Kbps |
| Parity | Odd, Even, Mark, Space, None |
| Serial Protocol | RS-232/422/485 |
| Stop Bits | 1, 2 |
| Surge Protection | 15 kV ESD Surge Protection |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 25 mm [1 in] |
| Product Length | 219 mm [8.6 in] |
| Product Weight | 688 g [24.3 oz] |
| Product Width | 128 mm [5 in] |
| Power | |
| Input Current | 1 A |
| Input Voltage | 100 ~ 240 AC |
| Output Current | 3.0 A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 36 W |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | Windows® 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016 Mac OS® 10.9 to 10.13 Linux 2.4.x to 4.11.x LTS Versions only |
| What's in the Box | |
| Included in Package | 6 ft. [2 m] USB-B with screw lock to USB-A cable |
| DIN rail kit | |
| instruction manual | |
| universal power adapter (NA/JP, UK, EU, ANZ) | |
| USB serial hub | |
Desk/wall/DIN rail mountable
Each port on the metal 8 port serial hub can be set to RS232/RS422/RS485(2wire/4wire) at baud rates up to 921.6Kbps
Incl. 6 locking USB cable
Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V
Rugged industrial sub to serial converter w/ 15kV ESD surge protection (level 4) IP30 rating and locking connectors (all ports)
Supports current/legacy Windows/Linux/macOS + embedded platform
Each port on the metal 8 port serial hub can be set to RS232/RS422/RS485(2wire/4wire) at baud rates up to 921.6Kbps
Incl. 6 locking USB cable
Power using incl. locking power adapter (12V) or USB (5V) DB9 male serial ports (pin9) can be individually set to 5V/12V/0V
Rugged industrial sub to serial converter w/ 15kV ESD surge protection (level 4) IP30 rating and locking connectors (all ports)
Supports current/legacy Windows/Linux/macOS + embedded platform
