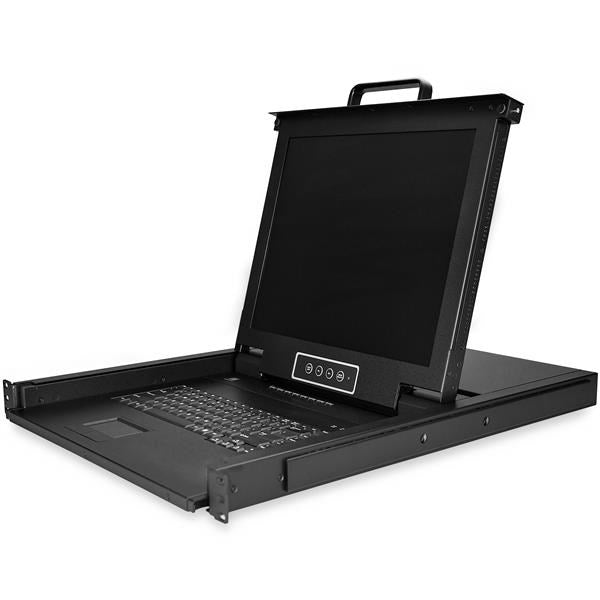

Providing centralized control of up to eight servers, this 8-port rackmount KVM console?gives you?easy access?to your?systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.

An All-Inclusive Solution?

The 1U rackmount console features a built-in keyboard, a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

This?8-port?KVM console?comes with everything?you need to set up right out of the box:?

• 8 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws

Simple System Integration

With direct access to eight systems or servers, the 8-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.

StarTech.com Rack Consoles

Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1708K is backed by a StarTech.com 2-year warranty and free lifetime technical support

Connector(s)
Console Interface(s)	PS/2 (6 pin, Mini-DIN) Female Input
	USB Type-A (4 pin) USB 2.0 Female Input
	VGA (15 pin, High Density D-Sub) Female Output
Host Connectors	VGA (15 pin, High Density D-Sub) Female Input
Other Interface(s)	15 Pin High Density D-Sub Female Input
Environmental
Humidity	10 ~ 80% RH
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Hardware
Audio	No
Cables Included	Yes
Daisy-Chain	No
Display Size	17in
Front Door Key Lock	No
KVM Ports	8
Number of Monitors Supported	1
Panel Type	Active Matrix TFT LCD
PC Interface	USB
PC Video Type	VGA
Rack-Mountable	Yes
U Height	1U
Indicators
LED Indicators	Green/Red - Online/Selected LED
Packaging Information
Package Height	18.5 cm [7.3 in]
Package Length	76.5 cm [30.1 in]
Package Width	61.5 cm [24.2 in]
Shipping (Package) Weight	19 kg [42 lb]
Performance
Aspect Ratio	5:4
Brightness	250 cd/m²
Color Depth	8-bit, 16.7M colors
Contrast Ratio	1000:1
IP Control	No
Maximum Analog Resolutions	1280 x 1024
Maximum Number of Users	1
MTBF	50, 000 Hrs
On-Screen Display	Yes
Pixel Pitch Support	0.264 x 0.264 mm
Port Selection Support	Push Button, Hotkeys, and OSD (On Screen Display)
Response Time	5ms
Supported Resolutions	Resolutions up to 1280 x 1024 @ 60Hz
Viewing Angle	170° (H), 160° (V)
Physical Characteristics
Cable Length	6 ft
Color	Black
Enclosure Type	Steel
Maximum Mounting Depth	90 cm [35.4 in]
Minimum Mounting Depth	56 cm [22 in]
Product Height	4.3 cm [1.7 in]
Product Length	52.6 cm [20.7 in]
Product Width	44.8 cm [17.6 in]
Weight of Product	13.3 kg [29.4 lb]
Power
Input Current	1.5A
Input Voltage	100 - 240 AC
Power Consumption (In Watts)	13W
Power Source	International Power Cords
Prominence
Description CDW 75 - 1st Line	StarTech.com Rackmount KVM Console - 8 Ports with 17” LCD Monitor
What's in the Box
Included in Package	KVM cables
	KVM console
	M5 cage nuts
	M5 screws
	Mounting Rails
	Power Cords (NA, JP, UK, EU, ANZ)
	Quick-Start Guide

Customizable Hot-Keys/On-Screen Display (OSD)/Admin + User Level Security and Auto Scan
Heavy duty LCD KVM Drawer with rails
Incl. 1.8m Cables/Mounting Hardware/Universal Compatibility
Integrated KVM + console in 1U rack space w/mounting depth 56 cm[22"] to 90 cm[35"]
Rackmount KVM Console w/17" Active Matrix TFT LCD Monitor/1280 x 1024/8 Port VGA KVM Switch/Full Keyboard + Keypad/Trackpad/Integrated Power Supply/OS Independent/USB 2.0
StarTech.com 2-year warranty
