StarTech 8 Port 1U Rackmount DVI USB KVM Switch
Description
StarTech 8 Port 1U Rackmount DVI USB KVM Switch
SV831DVIU
3 Years Limited Warranty
SV831DVIU
3 Years Limited Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$1,241.95
Sale price
$1,241.95
Accepted payment methods
Description
StarTech 8 Port 1U Rackmount DVI USB KVM Switch
SV831DVIU
3 Years Limited Warranty
View Full Details
SV831DVIU
3 Years Limited Warranty
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more

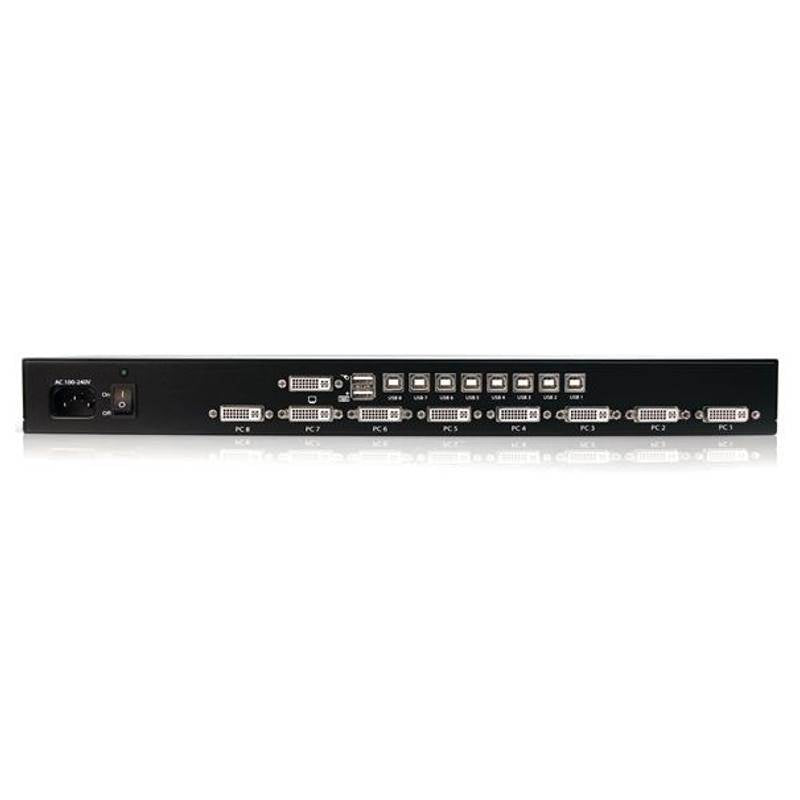

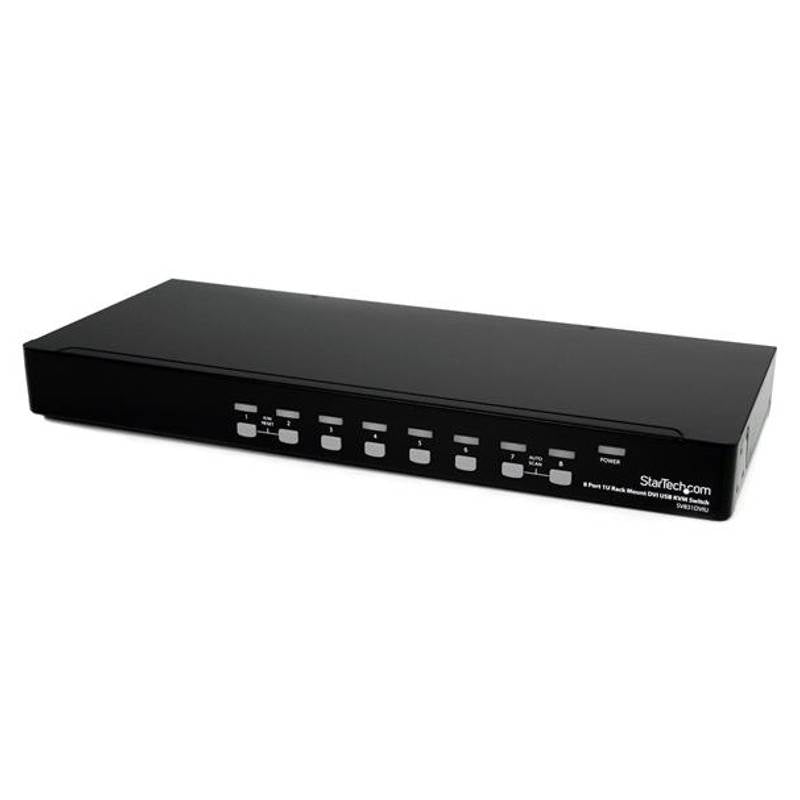

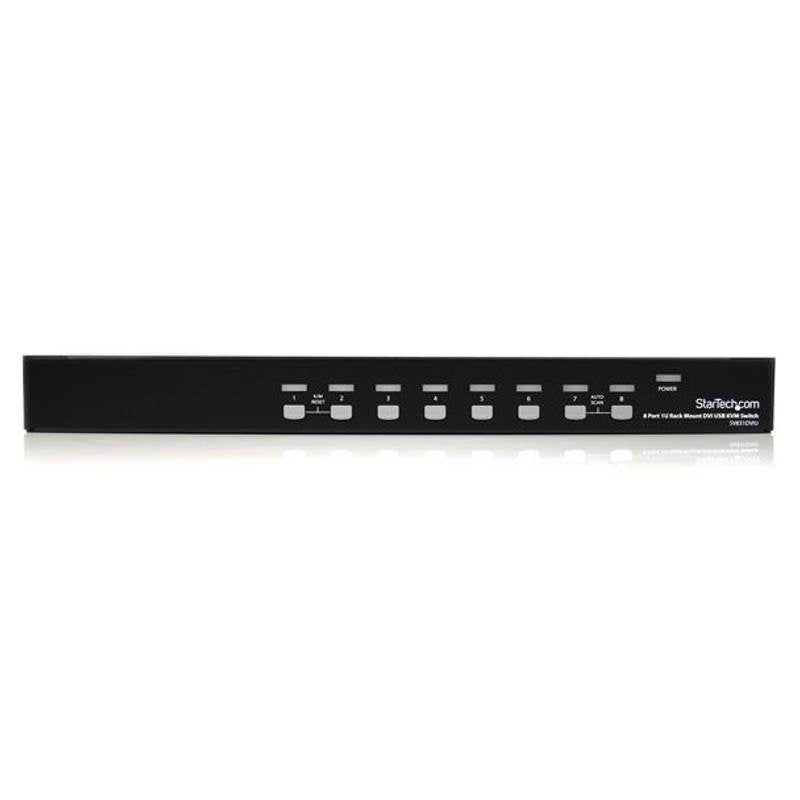

The SV831DVIU 8-Port 1U Rack Mount DVI USB KVM Switch lets you control up to 8 USB-connected computers (each with DVI or HDMI display output) from a single keyboard, mouse and monitor.
The KVM switch offers maximum control, allowing you to switch computers using hot-key commands or front panel push-buttons. Supporting digital resolutions up to 1920x1200 via DVI or HDMI connection (using DVI to HDMI adapter - see accessories), the KVM provides the high resolutions recommended for newer displays, allowing you to take full advantage of your monitor/screen capability.
A perfect addition to any server room or software test lab, this rugged 8-port switch can be rack-mounted into 1U of cabinet space.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Note: This KVM supports digital signals only, and cannot be used with DVI-to-VGA adapters.
| Hardware | |
| PC Interface | USB |
| PC Video Type | DVI |
| Rack-Mountable | Yes |
| U Height | 1U |
| Packaging Information | |
| Shipping (Package) Weight | 4 kg [8.8 lb] |
| Performance | |
| DVI Support | Yes - Single Link |
| Hot-Key Selection | Yes |
| IP Control | No |
| Maximum Analog Resolutions | 1920 x 1200 |
| Maximum Cable Length | 4.6 m [15 ft] |
| Maximum Number of Users | 1 |
| MTBF | 45, 254 Hours |
| On-Screen Display | No |
| Port Selection Support | Push Button and Hotkeys |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Product Height | 44 mm [1.7 in] |
| Product Length | 180 mm [7.1 in] |
| Product Weight | 3500 g [123.5 oz] |
| Product Width | 438 mm [17.2 in] |
| Power | |
| Center Tip Polarity | Positive |
| Input Current | 1.8A |
| Input Voltage | 110V-240V AC |
| Output Current | 4A |
| Output Voltage | 12 DC |
| Plug Type | M |
| Power Consumption (In Watts) | 48 |
| Power Source | AC Adapter Included |
| Software | |
| OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | |
| Note | Supports SUN keyboard emulation |

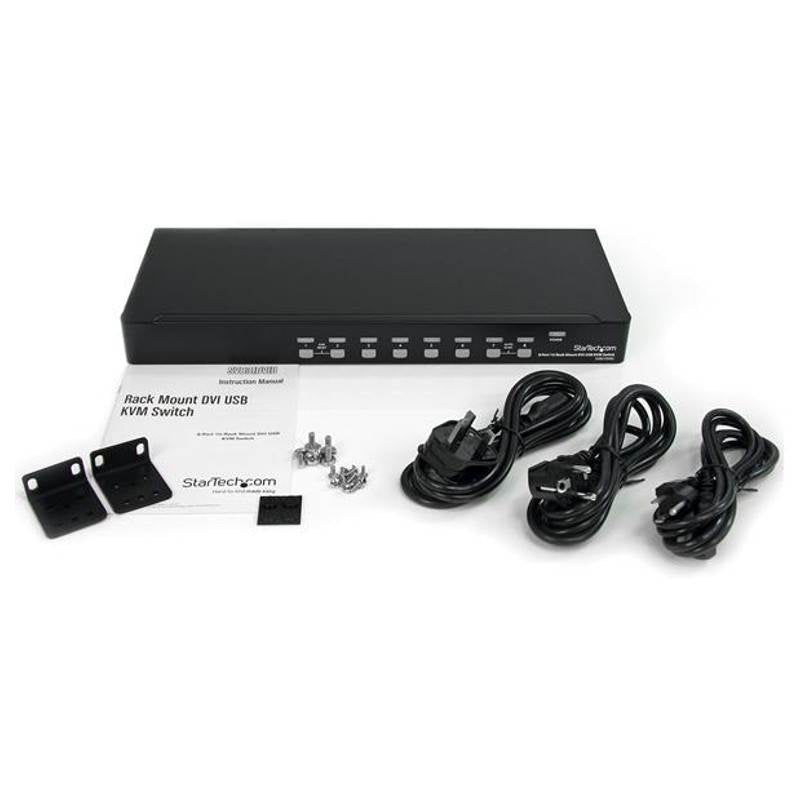

| What's in the Box | |
| Included in Package | 8 Port DVI USB KVM Switch |
| Set Rack-mount brackets | |
| Universal power adapter: comes ready for NA/EU/UK only when you buy in NA/EU/UK; comes ready for Australia and New Zealand only when you buy in Australia and New Zealand | |
| Hardware | |
| Number of Monitors Supported | 1 |
| KVM Ports | 8 |
| Daisy-Chain | No |
| Cables Included | No |
| Audio | No |
| Environmental | |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Humidity | 0~80%RH |
| Connector(s) | |
| Host Connectors | USB B (4 pin) Female |
| DVI-I (29 pin) Female | |
| Console Interface(s) | USB Type-A (4 pin) USB 2.0 Female |
| DVI-I (29 pin) Female | |
| What's in the Box | |
| Included in Package | User Manual |
3 Years Limited Warranty
