Handle your workload more efficiently. This USB 3.0 card expands your computer’s capabilities by giving you seven extra USB 3.0 ports. It’s engineered with an innovative stacked port layout to fit easily into both low-profile and standard desktop computers.

Greater port count. Greater scalability.

More ports means you can add USB devices as you need them. This robust USB 3.0 card gives you seven USB 3.0 ports - six external and one internal - so you can plug in your tablets, smartphones, external hard drives, CD/DVD drives, printer and other devices at the same time. With so many extra ports, you can leave your devices plugged in, so they’re ready to use when you need them. It’s also economical - by being able to connect so many devices, you save the cost of extra hubs or cards.

The internal USB 3.0 port lets you connect a USB device inside your computer for added convenience and security.

Unique dual-profile design

This versatile USB 3.0 card features a dual-profile design with a stacked port layout. The innovative port configuration allows a high number of external ports in a compact design, allowing it to fit both low-profile and full desktop computer systems. A bracket is included for installation into low-profile computers.

Easy driver installation

You'll be up and running in no time. The card automatically installs in Windows® 8.1 or later, with native operating system support. It’s also backward compatible with USB 2.0 and 1.x devices to help you get the most out of your existing peripherals.

Effective USB 3.0 performance enhanced by UASP

This high-performance SuperSpeed USB 3.0 card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure.

The rugged build quality of the card delivers long-lasting performance, and gives you peace of mind when connecting multiple devices. The PEXUSB3S7 is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Note: UASP (USB Attached SCSI Protocol) is supported in Windows 8.1 or later, and Linux kernel 2.6.37 or later. Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.

Hardware
Port Style	Integrated on Card
Ports	7
Packaging Information
Shipping (Package) Weight	150 g [5.3 oz]
Performance
Maximum Cable Length	3 m [9.8 ft]
Maximum Data Transfer Rate	5 Gbps
MTBF	1,920,042 Hours
Type and Rate	USB 3.0 - 5 Gbit/s
UASP Support	Yes
Physical Characteristics
Product Height	120 mm [4.7 in]
Product Length	105 mm [4.1 in]
Product Weight	72 g [2.5 oz]
Product Width	15 mm [0.6 in]
Software
OS Compatibility	Windows® XP, Vista, 7, 8, 8.1, 10 Windows Server® 2008 R2, 2012, 2012 R2, 2016 Linux 2.6.31 to 4.11.x LTS Versions only
Special Notes / Requirements
Note	The maximum throughput of this card is limited by the bus interface. If used with PCI Express Gen 1.0 enabled computers, the max throughput is 2.5 Gbps. If used with PCI Express Gen 2.0 enabled computers, the max throughput is 5 Gbps.
System and Cable Requirements	PCI Express enabled computer or server with an available PCI Express x1 slot or higher (x4, x8, x16)
	SATA power connector (recommended, but optional)

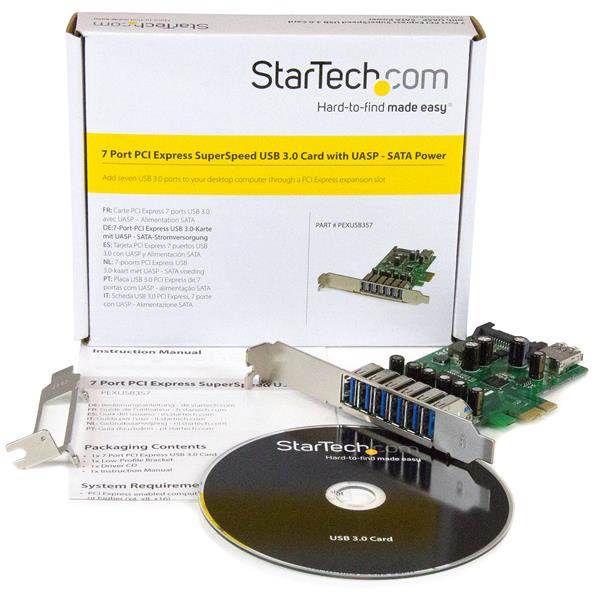

What's in the Box
Included in Package	7 Port PCI Express USB 3.0 Card
	Driver CD
	Instruction Manual
	Low-Profile Bracket
Hardware
Interface	USB 3.0
Industry Standards	USB 3.0 Specification Rev. 1.0 PCI Express Base Specification Rev. 2.0 Intel xHCI Specification Rev. 1.0
Chipset ID	Renesas/NEC - µPD720201 µPD720210
Card Type	Standard Profile (LP bracket incl.)
Bus Type	PCI Express
Environmental
Storage Temperature	-25°C to 70°C (-13°F to 158°F)
Operating Temperature	5°C to 50°C (41°F to 122°F)
Humidity	20~80% RH
Connector(s)
Internal Ports	USB Type-A (9 pin) USB 3.0 Female
	SATA Power (15 pin) Plug
External Ports	USB Type-A (9 pin) USB 3.0 Female
Connector Type(s)	PCI Express x1 Male

2 Years Limited Warranty
6 external and 1 internal USB 3.0 ports
Backward compatible with USB 2.0 and 1.x devices
Fits standard and low-profile computers
PCIe x1 interface
PEXUSB3S7
SATA powered (900mA per port)
StarTech 7 Port USB 3.0 PCIe Low Profile Adapter Card
USB 3.0 5Gbps and UASP support
