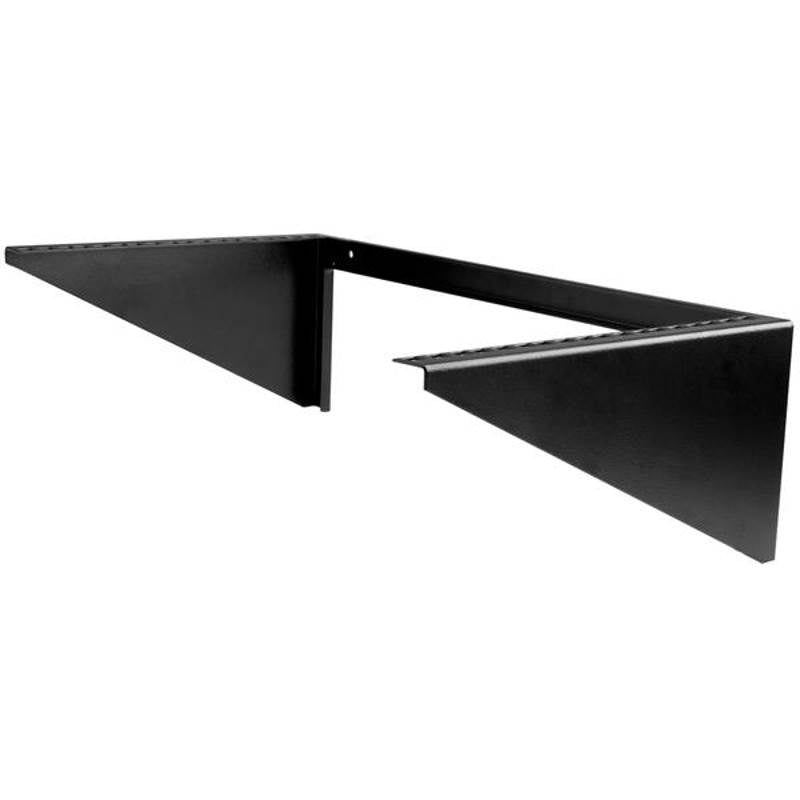

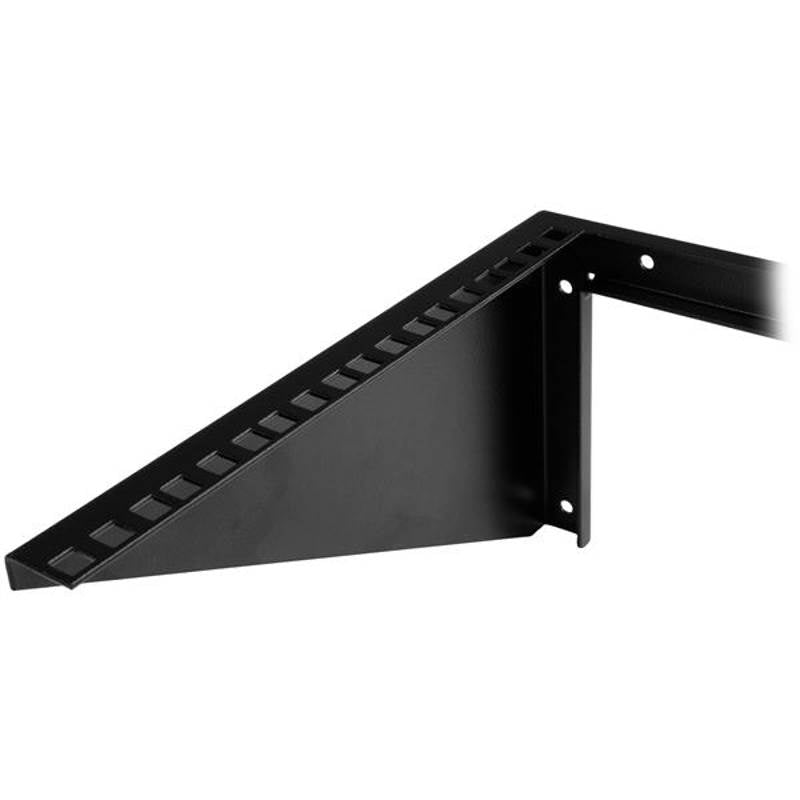

This wall-mount bracket provides 6U of storage space to vertically mount your equipment on the wall. The 6U wall-mount rack is EIA-310-D compliant to ensure compatibility with any 19” rack-mount equipment, such as your power strips, telecommunication, network and A/V devices.

Save space by mounting your equipment to the wall or other surface

The 6U rack optimizes your working space by mounting equipment to your wall instead of taking up desk space or other surface area. It's perfect for your SoHo (small office, home office) environment, server room or any other location where available space is limited.

Ensure a secure and hassle-free installation

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your expensive, mission-critical equipment. Also, because the wall mounting holes are positioned 16”apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. Cage nuts and screws are also included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.

Customize your workspace with versatile installation options

To provide a suitable mounting solution for virtually any surface such as your wall, ceiling or desk, the 6U bracket features separate mounting patterns for both ceilings and walls. This means that you can mount the bracket vertically to your wall or horizontally to your ceiling or under your desk.

If you're looking for a mountable storage solution with fewer rack units, StarTech.com also offers a 1U wall-mount bracket, a 2U wall-mount bracket, a 3U wall-mount bracket and a 4U wall-mount bracket.

The RK619WALLV is backed by a StarTech.com lifetime warranty and free lifetime technical support.

Hardware
U Height	6U
U Markings	No
Wallmountable	Yes
Packaging Information
Flat Pack (Assembly Required)	No
Shipping (Package) Weight	1.5 kg [3.3 lb]
Performance
Ventilation Capacity	Open Frame
Weight Capacity (Stationary)	90.7 kg [200.5 lb]
Physical Characteristics
Color	Black
Enclosure Type	Steel
Internal Width	450 mm [17.7 in]
Product Height	282 mm [11.1 in]
Product Length	152 mm [6 in]
Product Weight	1268 g [44.8 oz]
Product Width	505 mm [19.9 in]
Rail Thickness	2 mm [0.1 in]
Special Notes / Requirements
Note	Package includes 1½” screws for mounting to wood surfaces, additional hardware will be required for other materials
What's in the Box
Included in Package	instruction manual
	M5 cage nuts
	M5 screws with washers
	vertical wallmount bracket
	wood screws
Hardware
Tools Included	No
Rack Type	2-Post
Number and Type of Included Cage Nuts	M5
Mounting Holes	Square
Ladder Type	L-Shape
Industry Standards	EIA-310-D
	EIA RS310-C
Front Door Construction	Open
Frame Type	Open Frame
Fan(s)	No
Casters	No
Cable Management	No

6U
Constructed to meet the EIA-310 19" rack standards
Easy equipment installation
with cage nuts and screws included
Hassle-free setup with wall-mount installation holes spaced 16 in. apart
matching standard construction framework
Made from solid steel
Save space in your office or server room by mounting IT or AV equipment vertically to a wall or horizontally under a desk or work bench
Solid Steel
StarTech 6U 19" Vertical Wall Mount Rack Bracket
Vertical Wall-Mount Server Rack
