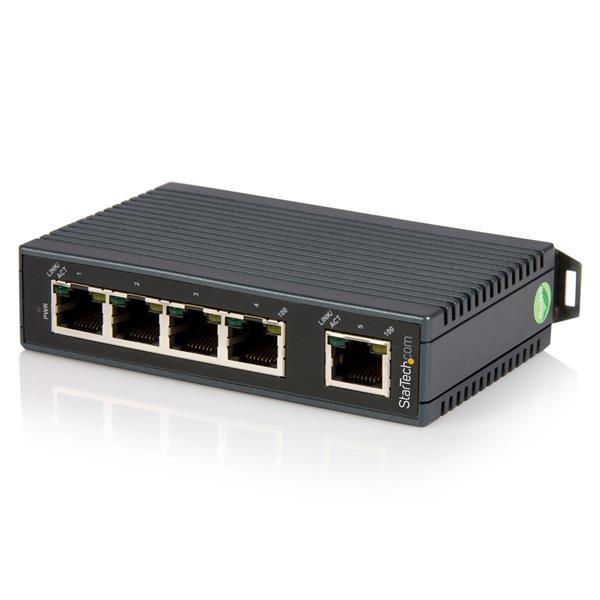

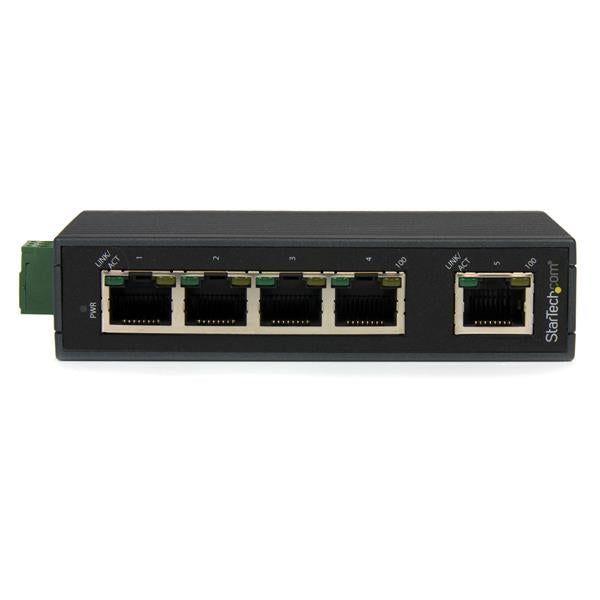

StarTech 5 Port Industrial Ethernet Switch - DIN Rail Mountable
StarTech 5 Port Industrial Ethernet Switch - DIN Rail Mountable
Description
StarTech 5 Port Industrial Ethernet Switch
DIN Rail Mountable
Network up to 5 Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet switch
DIN Rail Mountable
DIN Rail Mountable
Network up to 5 Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet switch
DIN Rail Mountable
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
$165.95
Sale price
$165.95
In stock with supplier
Ships within 8 - 24 days
BANK TRANSFER (EFT)
$165.95
Sale price
$165.95
In stock with supplier
Ships within 8 - 24 days
Accepted payment methods
Description
StarTech 5 Port Industrial Ethernet Switch
DIN Rail Mountable
Network up to 5 Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet switch
DIN Rail Mountable
View Full Details
DIN Rail Mountable
Network up to 5 Ethernet devices through a rugged, energy-efficient, industrial 10/100Mbps Ethernet switch
DIN Rail Mountable
Delivery
Australia
Standard Shipping 4-7 business days: AU $8.95*
Express Shipping 1-3 business days: AU $15*
International Shipping
New Zealand 9-12 business days: AU$21*
*During peak promotional periods, please allow additional time for your order dispatch.
Learn more
Returns
While we can’t offer a refund or replacement if you simply change your mind, we’re here to help if your item has a problem under Australian Consumer Law. You may be entitled to a refund or exchange if an item has a major problem. This is when the item:
- has a problem that would have stopped someone from buying the item if they had known about it
- is unsafe
- is significantly different from the sample or description
- doesn't do what we said it would, or what you asked for and can't be easily fixed
If the problem is not major, we will repair the item within a reasonable time. If it can’t be repaired in a reasonable time, we’ll offer a suitable resolution such as a refund or replacement. Please keep your proof of purchase — e.g. your receipt.
Read more
This compact 5-port industrial Ethernet switch is engineered to deliver fast, reliable network connectivity and durability in the most demanding industrial environments. It provides top performance in a wider range of operating temperatures than conventional network switches, making it ideal for factories and warehouses.
Conquer the tough demands of industrial environments

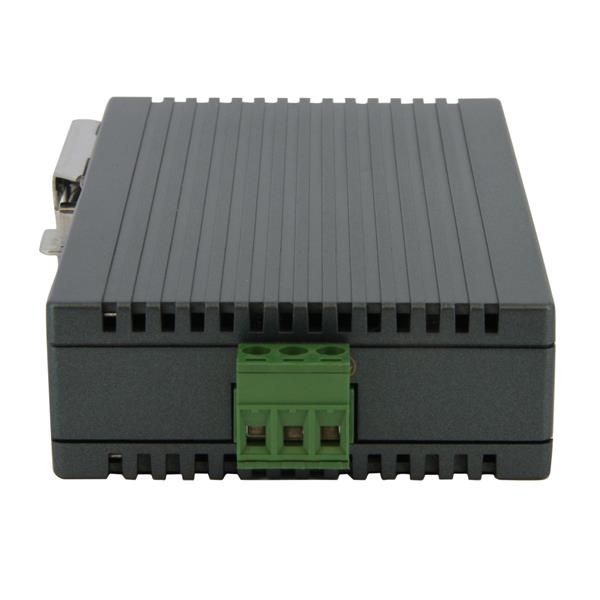

Designed with a rugged IP30-rated housing, the network switch delivers maximum performance even in harsh industrial conditions. Its wide-range terminal block input gives you the flexibility to power the switch as required, based on your own power input source, while its wide operating temperature range keeps your network running smoothly.
Get up and running in no time

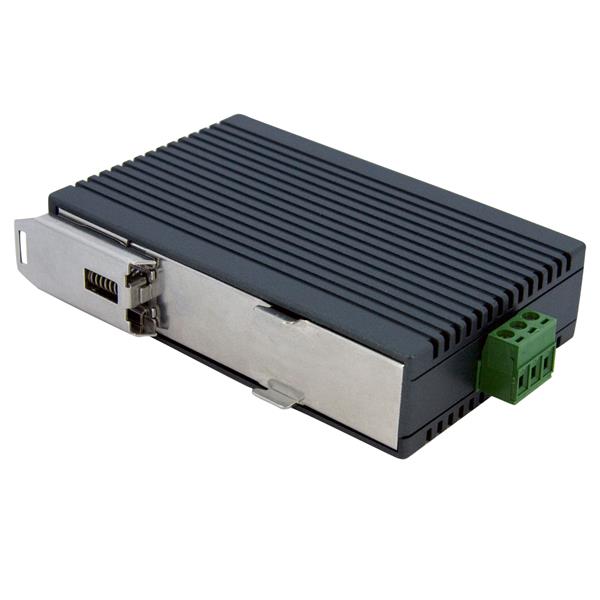

This industrial Ethernet switch is easy to install, with an attached metal bracket for DIN rail mounting on equipment racks and cabinets.
Now you can eliminate the hassle of troubleshooting mismatched speed and duplex settings. This switch gives you full/half-duplex auto-negotiation and auto MDI/MDIX operation, enabling you to connect your network devices quickly and easily with little to no configuration required.
Reduce your energy costs with Energy-Efficient Ethernet
With lower overall power consumption, the Ethernet switch enhances your energy efficiency, in turn helping you reduce monthly costs.
The IES5102 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Connector(s) | |
| External Ports | RJ-45 Female |
| Terminal Block (3 Wire) | |
| Environmental | |
| Humidity | 5~95% RH (Non-Condensing) |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Storage Temperature | -25°C to 85°C (-13°F to 185°F) |
| Hardware | |
| Industry Standards | IEEE 802.1P Quality of Service (QoS) |
| IEEE 802.3 (10BASE-T), IEEE 802.3u (100BASE-TX) | |
| IEEE 802.3az (Energy-Efficient Ethernet) | |
| Interface | RJ45 (10/100 Ethernet) |
| Ports | 5 |
| Regulatory Approvals | EN61000-6-2 EN61000-6-4 EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) IEC60068-2-6 Fc (Vibration) IEC60068-2-27 Ea (Shock) |
| Indicators | |
| LED Indicators | Activity (100 Mbps) |
| Link/Activity | |
| Power | |
| Packaging Information | |
| Shipping (Package) Weight | 335 g [11.8 oz] |
| Performance | |
| Auto MDIX | Yes |
| Auto-Negotiation | Yes |
| Buffer Size | 56 KB |
| Compatible Networks | 10/100 Mbps |
| Flow Control | IEEE 802.3x Full-Duplex |
| Full Duplex Support | Yes |
| Jumbo Frame Support | No |
| Maximum Cable Length | 100 m [328 ft] |
| Maximum Data Transfer Rate | 200 Mbps (Full-Duplex) |
| MTBF | 1,179,133 Hours |
| Surge Protection | ESD: EN61000-4-2 Surge: EN61000-4-5 |
| Switching Architecture | Store-and-Forward |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 110 mm [4.3 in] |
| Product Length | 70 mm [2.8 in] |
| Product Weight | 148 g [5.2 oz] |
| Product Width | 25 mm [1 in] |
| Power | |
| Input Voltage | 12 ~ 48 DC |
| Power Consumption (In Watts) | 2.12W Max |
| Power Source | Terminal Block |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| What's in the Box | |
| Included in Package | 5 Port Ethernet Switch (w/ Attached DIN Rail Bracket) |
| Instruction Manual CD | |
| Terminal Block | |
