StarTech 4U 19" Vertical Wall Mount Rack Bracket
Description
$129.95
Sale price
$129.95
In stock at Mwave
Dispatch or pick up within 24 hours
BANK TRANSFER (EFT)
$129.95
Sale price
$129.95
In stock at Mwave
Dispatch or pick up within 24 hours
Accepted payment methods
Description

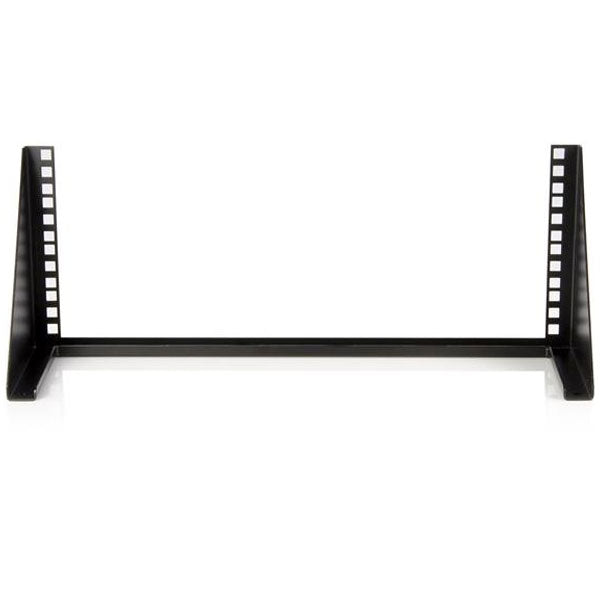

• StarTech 4U 19" Steel Vertical Wall Mount Equipment Rack Bracket
View Full Details

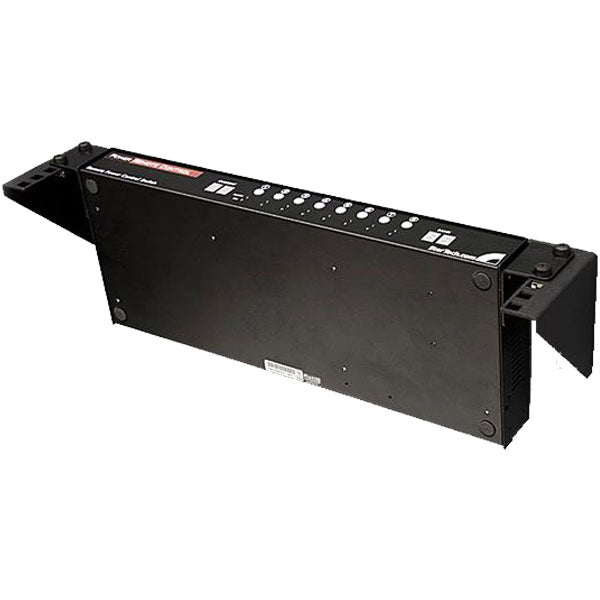

The RK419WALLV 4U Wallmount Rack Bracket offers a versatile storage solution, allowing equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with the wall) to save space. Alternatively, the 4U bracket can be installed under a desk for horizontal installation, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Perfect for SoHo (small office, home office) environments, the wallmount bracket offers space-saving installation for environments lacking the footprint space for a full size server equipment rack.
Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes (used to mount to a wall or the desk underside) are positioned at exactly 16in apart, matching standard construction framework.
Constructed to EIA-310 19in rack standards, the wallmount bracket features a sturdy steel design and is backed by StarTech.com's Lifetime Warranty.
Need more storage space? StarTech.com also offers a 1U 19in Wallmount Bracket, a 2U 19in Wallmount Bracket and a 3U 19in Wallmount Bracket.
| Hardware | |
| Number and Type of Included Cage Nuts | M5 |
| Rack Type | 2-Post |
| Side Panel(s) Key Lock | No |
| Tools Included | No |
| U Height | 4U |
| U Markings | No |
| Wallmountable | Yes |
| Packaging Information | |
| Flat Pack (Assembly Required) | No |
| Shipping (Package) Weight | 1.1 kg [2.5 lb] |
| Performance | |
| Weight Capacity (Stationary) | 56.7 kg [125.3 lb] |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Steel |
| Internal Width | 450 mm [17.7 in] |
| Product Height | 193 mm [7.6 in] |
| Product Length | 151 mm [5.9 in] |
| Product Weight | 1060 g [37.4 oz] |
| Product Width | 504 mm [19.8 in] |
| Rail Thickness | 2 mm [0.1 in] |
| Special Notes / Requirements | |
| Note | Package includes 1½” screws for mounting to wood surfaces, additional hardware will be required for other materials |
| What's in the Box | |

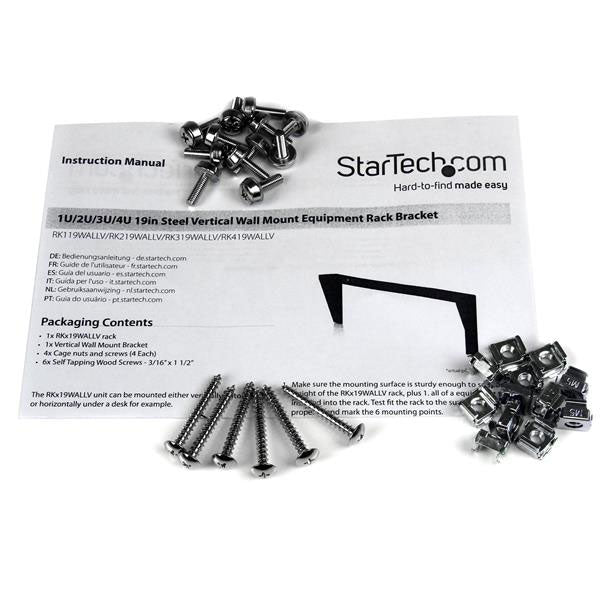

| Included in Package | Cage nuts and screws (16 Each) |
| Self Tapping Wood Screws - 3/16" x 1 1/2" | |
| Vertical Wall Mount Bracket | |
| Hardware | |
| Mounting Holes | Square |
| Ladder Type | L-Shape |
| Ladder Offset | 0 mm [0 in] |
| Industry Standards | EIA-310-D |
| Front Door Key Lock | No |
| Front Door Construction | Open |
| Frame Type | Open Frame |
| Fan(s) | No |
| Casters | No |
| Cable Management | No |
| Back Door Key Lock | No |
| Adjustable Mounting Rails | No |
StarTech 4U 19" Steel Vertical Wall Mount Equipment Rack Bracket
